Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1/2-14 Male NPT, 90 deg Elbow

Description & Features

Designed for 90-degree directional changes in hydraulic line routing, this steel adapter connects a 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) port to a 1/2-14 Male NPT fitting. The straight thread O-ring end provides a leak-resistant seal at the boss port, while the male NPT end threads into standard tapered pipe thread connections, making this a practical solution where thread types must transition at an angle.

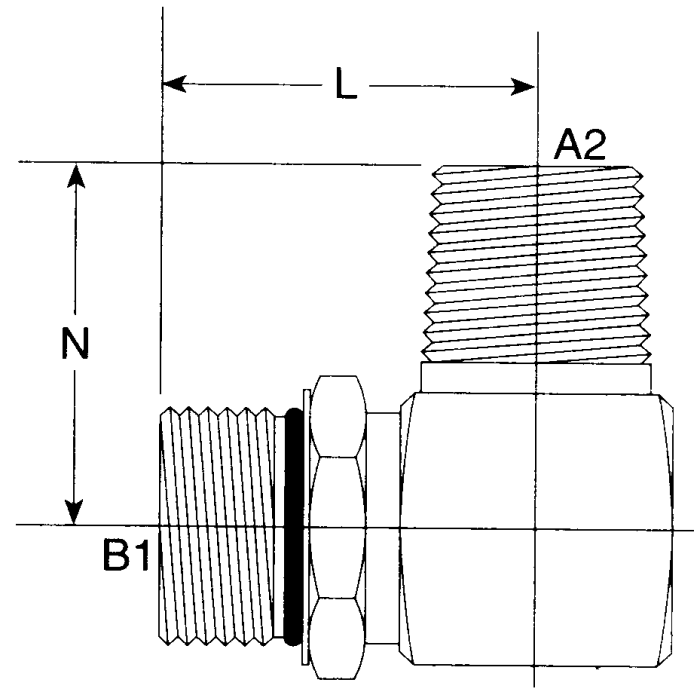

Manufactured by Brennan Industries and cataloged under the Pipe to Straight Thread O-Ring Adapters product line, this elbow measures 1.7 inches in length with an N dimension of 1.47 inches and a tube OD of 0.63 inches. Steel construction supports the demands of industrial hydraulic systems operating under typical pressure conditions for this fitting class. The 90-degree elbow configuration is suited to applications where inline adapters would conflict with surrounding components or enclosures.

SKU: 6806-10-08-NWO

Supplier Part Number (MPN): 6806-10-08-NWO-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	L 1.70	N 1.47	Supplier Part Number 6806-10-08-NWO-FG	Thread 1 7/8-14	Thread 2 1/2-14	Thread Sealant No	Tube O.D. 0.63	Tube O.D. 0.63	Product Weight 0.37 lbs

Similar Products

Model Number	Tube O.D.	Thread 1	Thread 2	L	N
6806-04-04-NWO Steel Male ORB To NPT 90 Elbow	0.25	7/16-20	1/4-18	1.09	1.09
6806-06-04-NWO Steel Male ORB To NPT 90 Elbow	0.38	9/16-18	1/4-18	1.25	1.09
6806-06-06-NWO Steel Male ORB To NPT 90 Elbow	0.38	9/16-18	3/8-18	1.35	1.22
6806-08-06-NWO Steel Male ORB To NPT 90 Elbow	0.5	3/4-16	3/8-18	1.45	1.22
6806-12-12-NWO Steel Male ORB To NPT 90 Elbow	0.75	1-1/16-12	3/4-14	1.94	1.59
6806-08-08-NWO Steel Male ORB To NPT 90 Elbow	0.5	3/4-16	1/2-14	1.52	1.47
6806-10-08-NWO Steel Male ORB To NPT 90 Elbow	0.63	7/8-14	1/2-14	1.7	1.47

Product Questions & Answers (1)

Question by: Judy S on Nov 7, 2025, 5:14 PM

If I'm swapping out an existing elbow, how can I tell if this'll fit without taking everything apart first?

Answer by: Customer Support on Nov 8, 2025, 8:52 PM

This elbow's dimensions are listed with the product details; the length is 1.7 inches, with an N dimension of 1.47 inches and a tube OD of 0.63 inches. You can compare those measurements to your current setup to get an idea of the fit.
