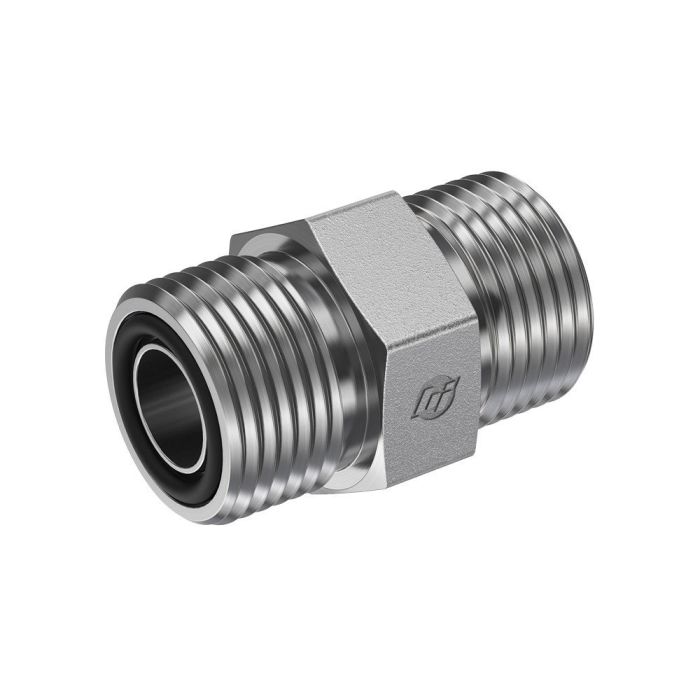

main product photo

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-14 Male SAE O-Ring Face Seal, Straight

Ask A Question

Description & Features

Engineered for precision this steel male ORS straight union features a robust design suitable for demanding industrial applications. The adapter is designed to ensure a secure and leak-free connection between 1-3/16-12 Male SAE O-Ring Face Seal and 1-14 Male SAE O-Ring Face Seal interfaces offering reliability and durability in various heavy-duty settings.

Manufactured by Brennan Industries Inc this component is ideal for complex hydraulic systems requiring exacting standards and performance. Its sturdy steel construction guarantees longevity and resistance to wear making it a reliable choice for critical industrial environments.

The straightforward design ensures ease of installation and maintenance while its compatibility with SAE ORS standards makes it a versatile addition to hydraulic systems. The high-quality engineering and precise thread specifications comply with stringent industry requirements.

MPN: C1ED24

Supplier Part Number: FS2403-12-10

Specifications

Brand
BRENNAN
a Dimensions
1.8 in
Connection Size 1
3/4 in
Connection Size 2
5/8 in
Connection Type
Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male ORFS
Dimension Standards
SAE J1453/J515
Dimensions
1.8 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/4
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS2403 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-3/16-12 x 1-14

Similar Products

Model Number Tube O.D. Thread Size Thread 2 A Price Action
Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-7/16-12 Male SAE O-Ring Face Seal, Straight

FF2000T1616S Steel Male ORS Straight Union

1

1-7/16-12

1-7/16-12

1.94

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Face Seal, Straight

FF2000T0404S Steel Male ORS Straight Union

0.25

9/16-18

9/16-18

1.08

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 11/16-16 Male SAE O-Ring Face Seal, Straight

FF2000T0606S Steel Male ORS Straight Union

0.38

11/16-16

11/16-16

1.22

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 11/16-16 Male SAE O-Ring Face Seal, Straight

FF2000T0806S Steel Male ORS Straight Union

0.5

13/16-16 x 11/16-16

11/16-16

1.33

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 13/16-16 Male SAE O-Ring Face Seal, Straight

FF2000T0808S Steel Male ORS Straight Union

0.5

13/16-16

13/16-16

1.39

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-14 Male SAE O-Ring Face Seal, Straight

FF2000T1010S Steel Male ORS Straight Union

0.63

1-14S

1-14

1.68

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-3/16-12 Male SAE O-Ring Face Seal, Straight

FF2000T1212S Steel Male ORS Straight Union

0.75

1-3/16-12

1-3/16-12

1.86

Product Questions & Answers (2)

Question by: Lee G on Oct 29, 2025, 1:45 PM
Will this here adapter work to connect a 1-3/16-12 male SAE O-ring to a 1-14 male SAE O-ring?
Answer by: Customer Support on Oct 30, 2025, 3:20 PM
this steel adapter is specifically made to give you a secure, leak-free connection between those two sizes of SAE O-ring face seal fittings.
Question by: Freddie H on Oct 20, 2025, 7:16 PM
got a hose end that’s 1-3/16-12 male ORFS and the other side is 1-14 male ORFS. is this the straight union for that, or am i lookin at the wrong thing
Answer by: Customer Support on Oct 22, 2025, 6:09 AM
For a straight ORFS to ORFS connection, this adapter matches those thread callouts. It is a steel male ORFS straight union with Thread 1 listed as 1-3/16-12 and Thread 2 listed as 1-14, so it is meant to join those two SAE O-Ring Face Seal interfaces.
