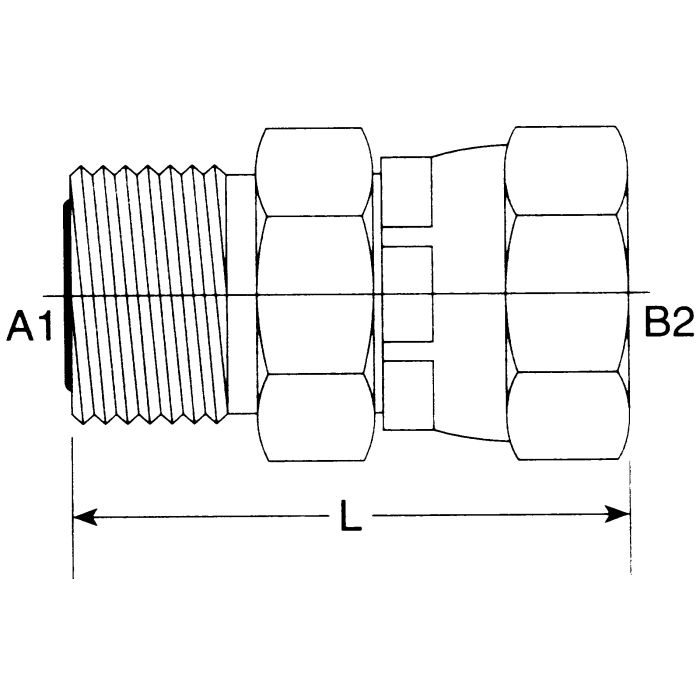

Steel Adapter, 9/16-18 Male O-Ring Face Seal To 7/16-20 Female JIC 37 deg Flare Swivel, Straight

Ask A Question

Description & Features

The Brennan Industries Inc. FS6402-04-04 offers precision and durability ideal for industrial applications. This component ensures reliable performance in a variety of mechanical systems.

Designed with compatibility in mind it features a #4 MORS connection and a #4 FJ configuration facilitating seamless integration into established frameworks. Manufactured to rigorous standards this product guarantees longevity and operational efficiency.

Suitable for demanding environments the FS6402-04-04 is crafted to support various industrial sectors providing stability and durability where it matters most.

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female JIC Swivel, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Dimension Standards
SAE J1453, SAE J514
Dimensions
1.344 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
9/16 x 5/8 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Series
FS6402 Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18, 7/16-20
Tube OD
1/4 in
Tube Outside Diameter
1/4 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Duane W on Jun 21, 2025, 7:10 AM
i’ve got a hose end that’s 7/16-20 JIC, will this adapter screw right onto it?
Answer by: Customer Support on Jun 22, 2025, 3:46 PM
On the JIC side, it has a 7/16-20 female JIC 37 degree flare swivel, which is the common match for a 7/16-20 male JIC flare fitting.
