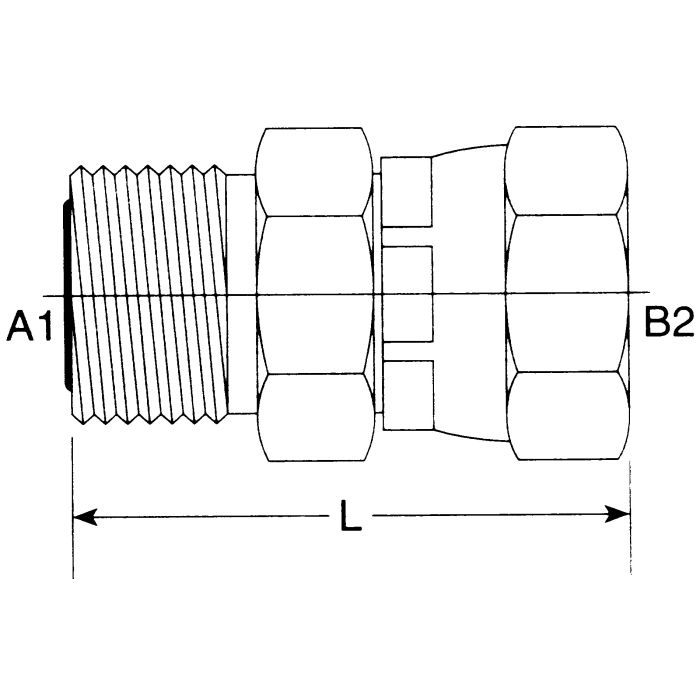

Steel Adapter, 1-3/16-12 Male O-Ring Face Seal To 1-1/16-12 Female JIC 37 deg Flare Swivel, Straight

Ask A Question

Description & Features

The FS6402-12-12 by Brennan Industries Inc is a versatile hydraulic fitting designed for various industrial applications. Engineered to connect #12 MORS to #12 FJ this product ensures a reliable and secure connection in demanding environments.

Constructed with high-quality materials the FS6402-12-12 offers durability and longevity minimizing the need for frequent replacements. Its robust design provides leak-free performance even under high pressure making it ideal for use in hydraulic systems where performance and reliability are critical.

Manufactured by Brennan Industries Inc this fitting meets rigorous industry standards ensuring it meets the requirements of professional use. The precision engineering of the FS6402-12-12 allows for straightforward installation and maintenance enhancing efficiency in industrial operations.

MPN: {{ecc_mpn}}

Supplier Part Number: {{supplierpartnumber}}

Specifications

Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female JIC Swivel, Male ORFS
Connection Type 1
Male SAE ORFS
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Dimension Standards
SAE J1453, SAE J514
Dimensions
0.609 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/4
l Dimensions
2-1/4 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
5000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6402 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-3/16-12 x 1-1/16-12
Tube Outside Diameter
3/4 in

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Rex T on Sep 11, 2025, 10:35 AM
Will this here adapter work to hook up a JIC 37 degree flare to a O-ring face seal?
Answer by: Customer Support on Sep 12, 2025, 1:18 PM
Yes, this adapter is made to connect a #12 Male O-Ring Face Seal to a #12 Female JIC 37 degree flare.
Question by: Marvin W on Apr 8, 2025, 5:58 PM
trying to swap a fitting out, is this one the straight adapter that goes from #12 male o-ring face seal to a #12 female JIC swivel?
Answer by: Customer Support on Apr 10, 2025, 6:45 AM
Built as a straight ORFS to JIC adapter, it connects a #12 male O Ring Face Seal end with 1-3/16-12 threads to a #12 female JIC 37 degree flare swivel end with 1-1/16-12 threads.
