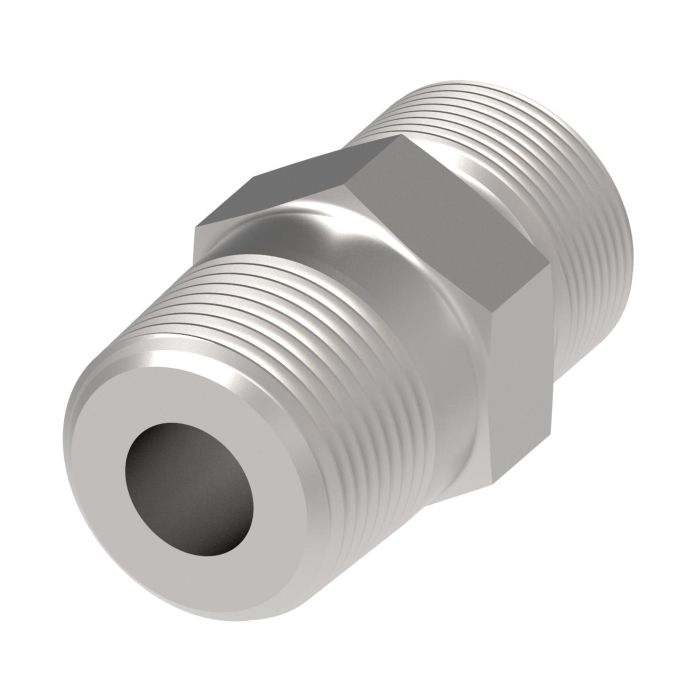

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 3/8-18 Male NPT, Straight

Ask A Question

Description & Features

This steel adapter is a straight adapter from the Danfoss / Eaton FF2031T series. It adapts from 9/16-18 male SAE O-ring face seal to 3/8-18 male NPT connections. Suitable for applications such as marine/military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling. Minimum working temperature: -40 degrees.

Thread 1 is 9/16-18 and thread 2 is 3/8-18. Tube I.D. 1: 0.17. Tube I.D. 2: 0.41. Tube O.D.: 0.25. Seal part, if included: FF9446-11.

SKU: FF2031T0406S

Supplier Part Number (MPN): FF2031T0406S

Alternate Part Numbers: C1JA70, MI-02056508, MINO-00015J90454

Specifications

A
1.24
Alternate Part Numbers
Alternate Part Number C1JA70, Alternate Part Number MI-02056508, Alternate Part Number MINO-00015J90454, Alternate Part Number MINO-00925X13075
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.56
End Size 2
0.38
End Type 1
ORS
End Type 2
NPTF
Minimum Working Temperature
-40
Seal Part if Included
FF9446-11
Supplier Part Number
FF2031T0406S
Thread 1
9/16-18
Thread 2
3/8-18
Thread Sealant
No
Tube I.D. 1
0.17
Tube I.D. 2
0.41
Tube O.D.
0.25
Tube O.D.
0.25
Product Weight
0.06 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A Price Action
Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 1/4-18 Male NPT, Straight

FF2031T0404S Steel Male ORS To NPT Adapter

0.25

9/16-18

1/4-18

1.24

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 1/4-18 Male NPT, Straight

FF2031T0604S Steel Male ORS To NPT Adapter

0.38

11/16-16

1/4-18

1.3

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 3/8-18 Male NPT, Straight

FF2031T0606S Steel Male ORS To NPT Adapter

0.38

11/16-16

3/8-18

1.3

Steel Adapter, 11/16-14 Male SAE O-Ring Face Seal To 1/2-14 Male NPT, Straight

FF2031T0608S Steel Male ORS To NPT Adapter

0.38

11/16-14

1/2-14

1.55

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 1/4-18 Male NPT, Straight

FF2031T0804S Steel Male ORS To NPT Adapter

0.5

13/16-16

1/4-18

1.36

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/8-18 Male NPT, Straight

FF2031T0806S Steel Male ORS To NPT Adapter

0.5

13/16-16

3/8-18

1.36

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 1/2-14 Male NPT, Straight

FF2031T0808S Steel Male ORS To NPT Adapter

0.5

13/16-16

1/2-14

1.61

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1/2-14 Male NPT, Straight

FF2031T1008S Steel Male ORS To NPT Adapter

0.63

1-14

1/2-14

1.72

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FF2031T1012S Steel Male ORS To NPT Adapter

0.63

1-14

3/4-14

1.78

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FF2031T1212S Steel Male ORS To NPT Adapter

0.75

1-3/16-12

3/4-14

1.84

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-11-1/2 Male NPT, Straight

FF2031T1216S Steel Male ORS To NPT Adapter

0.75

1-3/16-12

1-11-1/2

2.03

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FF2031T1612S Steel Male ORS To NPT Adapter

1

1-7/16-12

3/4-14

1.86

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-11-1/2 Male NPT, Straight

FF2031T1616S Steel Male ORS To NPT Adapter

1

1-7/16-12

1-11-1/2

2.05

Steel Adapter, 1-11/16-12 Male SAE O-Ring Face Seal To 1-1/4-11-1/2 Male NPT, Straight

FF2031T2020S Steel Male ORS To NPT Adapter

1.25

1-11/16-12

1-1/4-11-1/2

2.16

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FS2404-08-12 Steel Male ORS To NPT Adapter

0.5

13/16-16

3/4-14

1.69

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-11-1/2 Male NPT, Straight

FS2404-10-16 Steel Male ORS To NPT Adapter

0.63

1-14

1-11-1/2

Product Questions & Answers (2)

Question by: Wayne S on Oct 11, 2025, 12:12 PM
trying to hook up a 9/16-18 ORFS line to a 3/8-18 NPT port, is that what this adapter does
Answer by: Customer Support on Oct 12, 2025, 8:23 PM
Function-wise, it bridges those two connection types in a straight body. One end is 9/16-18 male SAE O-ring face seal, and the other end is 3/8-18 male NPT, so it is meant for exactly that ORFS-to-NPT hookup.
Question by: Chad O on May 5, 2025, 7:33 AM
Got a line running NPT on one end and an SAE O-ring face seal on the other, does this fitting bridge those two without needing extra pieces in between?
Answer by: Customer Support on May 6, 2025, 5:31 PM
That's what it handles. One end is a 9/16-18 male SAE O-ring face seal and the other is a 3/8-18 male NPT, all in one straight body. No additional adapters or couplings needed to go between those two thread types.
