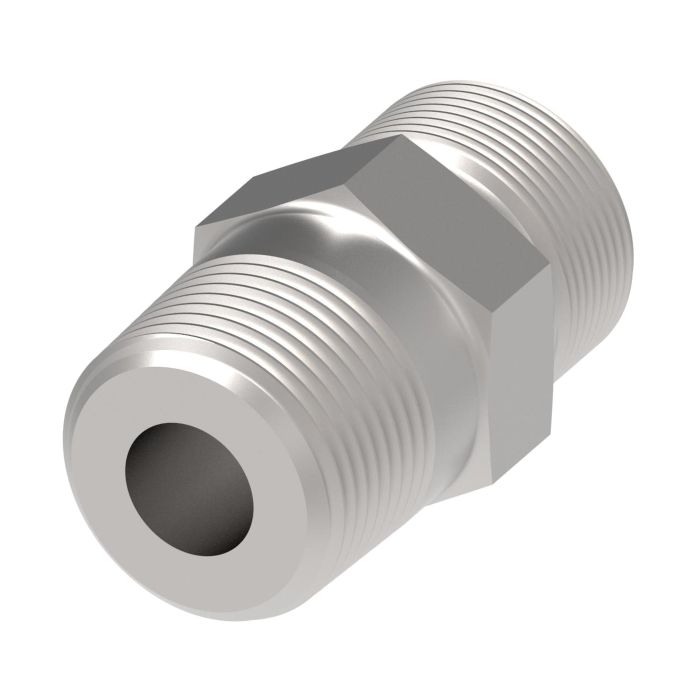

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/8-18 Male NPT, Straight

Ask A Question

Description & Features

Designed for demanding industrial environments, the Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/8-18 Male NPT, Straight connects SAE O-Ring Face Seal (ORS) and male NPT threads in a compact, straight configuration. Manufactured by Eaton Aeroquip as part of the FF2031T series, this adapter is constructed from steel for durability in high-pressure hydraulic systems.

With an A dimension of 1.36, this adapter suits a range of industrial applications including marine and military equipment, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling, environments where reliable, leak-resistant connections are critical. The SAE O-Ring Face Seal end provides a metal-to-metal seating surface with an elastomeric seal, reducing the risk of leakage under pressure compared to tapered thread connections.

SKU: FF2031T0806S

Supplier Part Number (MPN): FF2031T0806S

Alternate Part Numbers: C1GE94, MI-08051849, MINO-00015F55522

Specifications

A
1.36
Alternate Part Numbers
Alternate Part Number C1GE94, Alternate Part Number MI-08051849, Alternate Part Number MINO-00015F55522, Alternate Part Number MINO-00925X13082
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.81
End Size 2
0.38
End Type 1
ORS
End Type 2
NPTF
Minimum Working Temperature
-40
Supplier Part Number
FF2031T0806S
Thread 1
13/16-16
Thread 2
3/8-18
Thread Sealant
No
Tube O.D.
0.50
Tube O.D.
0.5
Product Weight
0.12 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A Price Action
Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 1/4-18 Male NPT, Straight

FF2031T0404S Steel Male ORS To NPT Adapter

0.25

9/16-18

1/4-18

1.24

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 3/8-18 Male NPT, Straight

FF2031T0406S Steel Male ORS To NPT Adapter

0.25

9/16-18

3/8-18

1.24

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 1/4-18 Male NPT, Straight

FF2031T0604S Steel Male ORS To NPT Adapter

0.38

11/16-16

1/4-18

1.3

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 3/8-18 Male NPT, Straight

FF2031T0606S Steel Male ORS To NPT Adapter

0.38

11/16-16

3/8-18

1.3

Steel Adapter, 11/16-14 Male SAE O-Ring Face Seal To 1/2-14 Male NPT, Straight

FF2031T0608S Steel Male ORS To NPT Adapter

0.38

11/16-14

1/2-14

1.55

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 1/4-18 Male NPT, Straight

FF2031T0804S Steel Male ORS To NPT Adapter

0.5

13/16-16

1/4-18

1.36

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/8-18 Male NPT, Straight

FF2031T0806S Steel Male ORS To NPT Adapter

0.5

13/16-16

3/8-18

1.36

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 1/2-14 Male NPT, Straight

FF2031T0808S Steel Male ORS To NPT Adapter

0.5

13/16-16

1/2-14

1.61

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1/2-14 Male NPT, Straight

FF2031T1008S Steel Male ORS To NPT Adapter

0.63

1-14

1/2-14

1.72

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FF2031T1012S Steel Male ORS To NPT Adapter

0.63

1-14

3/4-14

1.78

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FF2031T1212S Steel Male ORS To NPT Adapter

0.75

1-3/16-12

3/4-14

1.84

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-11-1/2 Male NPT, Straight

FF2031T1216S Steel Male ORS To NPT Adapter

0.75

1-3/16-12

1-11-1/2

2.03

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FF2031T1612S Steel Male ORS To NPT Adapter

1

1-7/16-12

3/4-14

1.86

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-11-1/2 Male NPT, Straight

FF2031T1616S Steel Male ORS To NPT Adapter

1

1-7/16-12

1-11-1/2

2.05

Steel Adapter, 1-11/16-12 Male SAE O-Ring Face Seal To 1-1/4-11-1/2 Male NPT, Straight

FF2031T2020S Steel Male ORS To NPT Adapter

1.25

1-11/16-12

1-1/4-11-1/2

2.16

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FS2404-08-12 Steel Male ORS To NPT Adapter

0.5

13/16-16

3/4-14

1.69

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-11-1/2 Male NPT, Straight

FS2404-10-16 Steel Male ORS To NPT Adapter

0.63

1-14

1-11-1/2

Product Questions & Answers (3)

Question by: Keith H on Dec 17, 2025, 6:21 PM
Will this adapter hold up if I'm using it in a hydraulic system on a fishing boat? Saltwater is pretty corrosive.
Answer by: Customer Support on Dec 19, 2025, 6:18 AM
This adapter is made from steel, so it's durable enough for marine environments. It's also used in chemical processing, so it should be able to withstand saltwater.
Question by: Duane M on Aug 23, 2025, 3:18 PM
trying to hook an ORFS hose end to a pipe port, is this the right adapter or am i mixing stuff up
Answer by: Customer Support on Aug 25, 2025, 2:49 PM
For tying an SAE O Ring Face Seal male end to a male NPT threaded connection, this is the correct style. It is a straight steel adapter from the Eaton Aeroquip FF2031T series with a 13/16-16 male ORFS on one side and a 3/8-18 male NPT on the other.
Question by: Tony S on Oct 20, 2025, 3:47 PM
got a 3/8 NPT port on a pump housing and need to tie into a hydraulic line with an SAE O-ring face seal fitting, this the right adapter for that?
Answer by: Customer Support on Oct 21, 2025, 4:46 PM
That's exactly the application this part is built for. One end threads into your 3/8-18 NPT port on the pump housing, and the other end accepts a male SAE O-Ring Face Seal connection. The ORS end uses a metal-to-metal seating surface with an elastomeric seal, which gives you a much tighter, leak-resistant joint than a standard tapered thread connection would. It's a straight configuration, so no angling involved. Steel construction holds up well in high-pressure hydraulic systems. Part number is FF2031T0806S, also sold under C1GE94 if you're cross-referencing another supplier's catalog.
