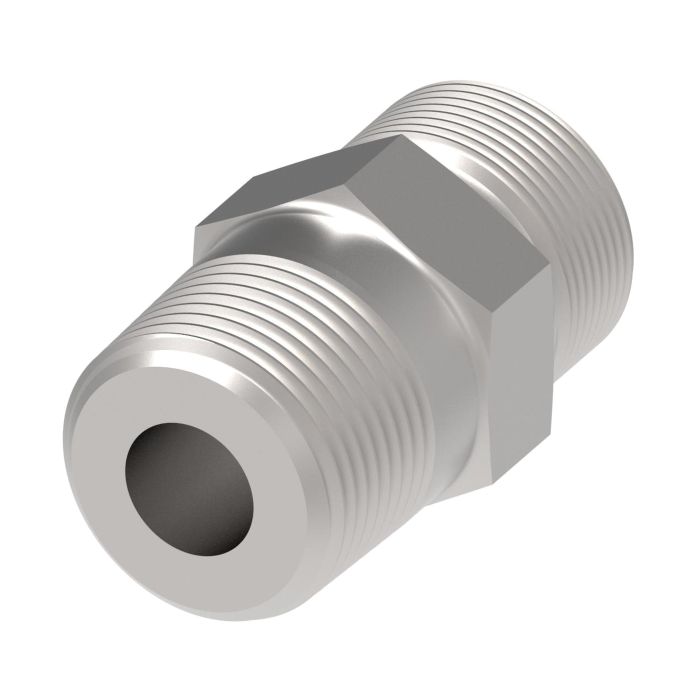

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1/2-14 Male NPT, Straight

Ask A Question

Description & Features

Part of the Eaton Aeroquip FF2031T Series, this straight adapter connects a 1-14 male SAE O-Ring Face Seal (ORS) to a 1/2-14 male NPT thread in a single inline fitting. Constructed from steel, it is suited for applications where a leak-resistant face seal connection must transition to a standard tapered pipe thread port.

The Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1/2-14 Male NPT, Straight is rated for use across demanding industrial environments, including marine and military, offshore drilling, chemical processing, food and beverage processing, and pulp and paper industries. The catalog reference for this part is C1EC84.

SKU: FF2031T1008S

Supplier Part Number (MPN): FF2031T1008S

Alternate Part Numbers: C1EC84, MI-00306446, MINO-00015F55524

Specifications

A
1.72
Alternate Part Numbers
Alternate Part Number C1EC84, Alternate Part Number MI-00306446, Alternate Part Number MINO-00015F55524, Alternate Part Number MINO-00925X13085
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
1
End Size 2
0.50
End Type 1
ORS
End Type 2
NPTF
Minimum Working Temperature
-40
Supplier Part Number
FF2031T1008S
Thread 1
1-14
Thread 2
1/2-14
Thread Sealant
No
Tube O.D.
0.63
Tube O.D.
0.63
Product Weight
0.10 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A Price Action
Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 1/4-18 Male NPT, Straight

FF2031T0404S Steel Male ORS To NPT Adapter

0.25

9/16-18

1/4-18

1.24

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 3/8-18 Male NPT, Straight

FF2031T0406S Steel Male ORS To NPT Adapter

0.25

9/16-18

3/8-18

1.24

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 1/4-18 Male NPT, Straight

FF2031T0604S Steel Male ORS To NPT Adapter

0.38

11/16-16

1/4-18

1.3

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 3/8-18 Male NPT, Straight

FF2031T0606S Steel Male ORS To NPT Adapter

0.38

11/16-16

3/8-18

1.3

Steel Adapter, 11/16-14 Male SAE O-Ring Face Seal To 1/2-14 Male NPT, Straight

FF2031T0608S Steel Male ORS To NPT Adapter

0.38

11/16-14

1/2-14

1.55

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 1/4-18 Male NPT, Straight

FF2031T0804S Steel Male ORS To NPT Adapter

0.5

13/16-16

1/4-18

1.36

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/8-18 Male NPT, Straight

FF2031T0806S Steel Male ORS To NPT Adapter

0.5

13/16-16

3/8-18

1.36

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 1/2-14 Male NPT, Straight

FF2031T0808S Steel Male ORS To NPT Adapter

0.5

13/16-16

1/2-14

1.61

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1/2-14 Male NPT, Straight

FF2031T1008S Steel Male ORS To NPT Adapter

0.63

1-14

1/2-14

1.72

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FF2031T1012S Steel Male ORS To NPT Adapter

0.63

1-14

3/4-14

1.78

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FF2031T1212S Steel Male ORS To NPT Adapter

0.75

1-3/16-12

3/4-14

1.84

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-11-1/2 Male NPT, Straight

FF2031T1216S Steel Male ORS To NPT Adapter

0.75

1-3/16-12

1-11-1/2

2.03

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FF2031T1612S Steel Male ORS To NPT Adapter

1

1-7/16-12

3/4-14

1.86

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-11-1/2 Male NPT, Straight

FF2031T1616S Steel Male ORS To NPT Adapter

1

1-7/16-12

1-11-1/2

2.05

Steel Adapter, 1-11/16-12 Male SAE O-Ring Face Seal To 1-1/4-11-1/2 Male NPT, Straight

FF2031T2020S Steel Male ORS To NPT Adapter

1.25

1-11/16-12

1-1/4-11-1/2

2.16

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FS2404-08-12 Steel Male ORS To NPT Adapter

0.5

13/16-16

3/4-14

1.69

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-11-1/2 Male NPT, Straight

FS2404-10-16 Steel Male ORS To NPT Adapter

0.63

1-14

1-11-1/2

Product Questions & Answers (2)

Question by: Bobby C on Dec 29, 2025, 6:07 PM
what industries is this adapter actually rated for? got a job in chemical processing and trying to make sure this ain't just a general purpose fitting
Answer by: Customer Support on Dec 31, 2025, 6:49 AM
Rated applications for this adapter include chemical processing, marine and military, offshore drilling, food and beverage processing, and pulp and paper industries. So chemical processing is specifically covered. It's part of the Eaton Aeroquip FF2031T Series, which is built for demanding environments, not just light-duty work.
Question by: Patty B on May 20, 2025, 7:06 PM
Will this adapter work for hydraulic fluid in a marine environment?
Answer by: Customer Support on May 21, 2025, 9:13 PM
This steel adapter is indeed suitable for marine applications, as well as military, offshore drilling, chemical processing, and food and beverage processing industries.
