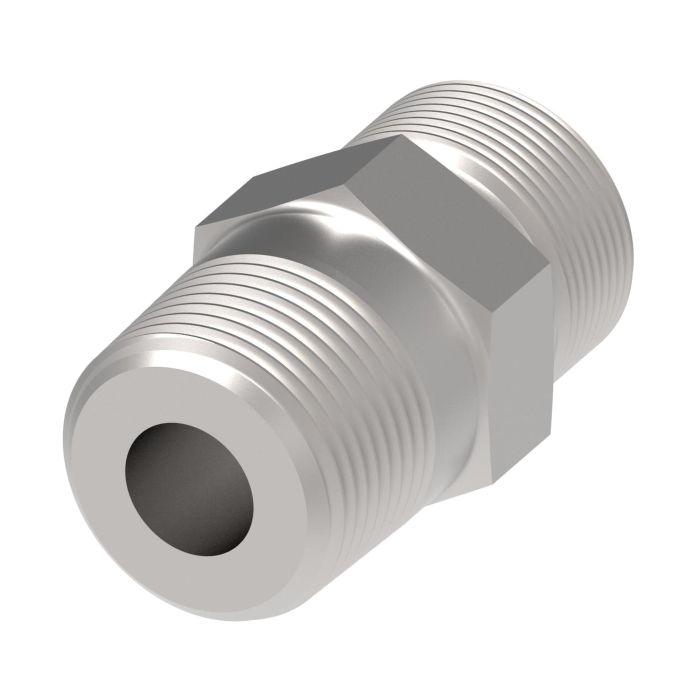

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

Ask A Question

Description & Features

Designed for demanding industrial environments, this Eaton Aeroquip Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight provides a reliable straight connection between SAE O-Ring Face Seal and Male NPT threaded lines. The steel construction supports use across a range of challenging applications, including marine and military equipment, chemical processing, pulp and paper manufacturing, food and beverage processing, and offshore drilling.

Part of the Eaton Aeroquip FF2031T Series, this adapter carries catalog number C1CV14 and features an A dimension of 1.84 inches. The SAE O-Ring Face Seal end provides a leak-resistant metal-to-metal seal with an elastomeric o-ring, making it well suited for systems where reliable fluid containment is critical.

SKU: FF2031T1212S

Supplier Part Number (MPN): FF2031T1212S

Alternate Part Numbers: C1CV14, MI-00306447, MINO-00015F55525

Specifications

A
1.84
Alternate Part Numbers
Alternate Part Number C1CV14, Alternate Part Number MI-00306447, Alternate Part Number MINO-00015F55525, Alternate Part Number MINO-00925X13087
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 2
0.75
End Type 1
ORS
End Type 2
NPTF
Minimum Working Temperature
-40
Supplier Part Number
FF2031T1212S
Thread 1
1-3/16-12
Thread 2
3/4-14
Thread Sealant
No
Tube O.D.
0.75
Tube O.D.
0.75
Product Weight
0.16 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A Price Action
Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 1/4-18 Male NPT, Straight

FF2031T0404S Steel Male ORS To NPT Adapter

0.25

9/16-18

1/4-18

1.24

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 3/8-18 Male NPT, Straight

FF2031T0406S Steel Male ORS To NPT Adapter

0.25

9/16-18

3/8-18

1.24

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 1/4-18 Male NPT, Straight

FF2031T0604S Steel Male ORS To NPT Adapter

0.38

11/16-16

1/4-18

1.3

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 3/8-18 Male NPT, Straight

FF2031T0606S Steel Male ORS To NPT Adapter

0.38

11/16-16

3/8-18

1.3

Steel Adapter, 11/16-14 Male SAE O-Ring Face Seal To 1/2-14 Male NPT, Straight

FF2031T0608S Steel Male ORS To NPT Adapter

0.38

11/16-14

1/2-14

1.55

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 1/4-18 Male NPT, Straight

FF2031T0804S Steel Male ORS To NPT Adapter

0.5

13/16-16

1/4-18

1.36

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/8-18 Male NPT, Straight

FF2031T0806S Steel Male ORS To NPT Adapter

0.5

13/16-16

3/8-18

1.36

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 1/2-14 Male NPT, Straight

FF2031T0808S Steel Male ORS To NPT Adapter

0.5

13/16-16

1/2-14

1.61

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1/2-14 Male NPT, Straight

FF2031T1008S Steel Male ORS To NPT Adapter

0.63

1-14

1/2-14

1.72

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FF2031T1012S Steel Male ORS To NPT Adapter

0.63

1-14

3/4-14

1.78

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FF2031T1212S Steel Male ORS To NPT Adapter

0.75

1-3/16-12

3/4-14

1.84

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-11-1/2 Male NPT, Straight

FF2031T1216S Steel Male ORS To NPT Adapter

0.75

1-3/16-12

1-11-1/2

2.03

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FF2031T1612S Steel Male ORS To NPT Adapter

1

1-7/16-12

3/4-14

1.86

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-11-1/2 Male NPT, Straight

FF2031T1616S Steel Male ORS To NPT Adapter

1

1-7/16-12

1-11-1/2

2.05

Steel Adapter, 1-11/16-12 Male SAE O-Ring Face Seal To 1-1/4-11-1/2 Male NPT, Straight

FF2031T2020S Steel Male ORS To NPT Adapter

1.25

1-11/16-12

1-1/4-11-1/2

2.16

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FS2404-08-12 Steel Male ORS To NPT Adapter

0.5

13/16-16

3/4-14

1.69

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-11-1/2 Male NPT, Straight

FS2404-10-16 Steel Male ORS To NPT Adapter

0.63

1-14

1-11-1/2

Product Questions & Answers (1)

Question by: Lance J on Jan 21, 2026, 6:49 PM
Got a line running 3/4 NPT male on one end and need to tie into a SAE O-ring face seal port, this straight adapter gonna handle that connection without a bunch of extra fittings in between?
Answer by: Customer Support on Jan 23, 2026, 12:00 PM
Yeah, that's exactly what this one is built for. One end is a 1-3/16-12 male SAE O-ring face seal and the other is 3/4-14 male NPT, so it bridges those two thread types in a single straight piece. The ORFS end uses a metal-to-metal face seal backed by an elastomeric o-ring, which keeps fluid containment tight without relying on thread sealant alone on that side. No reducers or unions needed in between.
