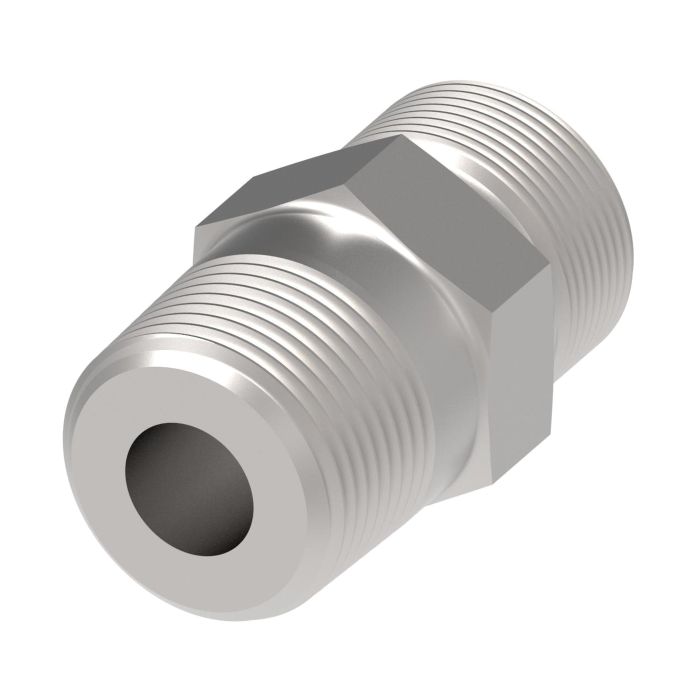

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

Ask A Question

Description & Features

This steel adapter features a 1-7/16-12 Male SAE O-Ring Face Seal connection on one end and a 3/4-14 Male NPT connection on the other, in a straight configuration. Well-suited for applications in marine, military, chemical processing, pulp and paper, food and beverage, and off-shore drilling environments.

The Eaton Aeroquip straight adapter is part of the FF2031T Series. It is designed to provide a reliable connection in demanding hydraulic applications. This adapter ensures compatibility and performance within a range of systems.

SKU: FF2031T1612S

Supplier Part Number (MPN): FF2031T1612S

Alternate Part Numbers: C1EC87, MI-00309251, MINO-00015F59319

Specifications

A
1.86
Alternate Part Numbers
Alternate Part Number C1EC87, Alternate Part Number MI-00309251, Alternate Part Number MINO-00015F59319
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 2
0.75
End Type 1
ORS
End Type 2
NPTF
Minimum Working Temperature
-40
Supplier Part Number
FF2031T1612S
Thread 1
1-7/16-12
Thread 2
3/4-14
Thread Sealant
No
Tube O.D.
1
Tube O.D.
1
Product Weight
0.08 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A Price Action
Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 1/4-18 Male NPT, Straight

FF2031T0404S Steel Male ORS To NPT Adapter

0.25

9/16-18

1/4-18

1.24

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 3/8-18 Male NPT, Straight

FF2031T0406S Steel Male ORS To NPT Adapter

0.25

9/16-18

3/8-18

1.24

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 1/4-18 Male NPT, Straight

FF2031T0604S Steel Male ORS To NPT Adapter

0.38

11/16-16

1/4-18

1.3

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 3/8-18 Male NPT, Straight

FF2031T0606S Steel Male ORS To NPT Adapter

0.38

11/16-16

3/8-18

1.3

Steel Adapter, 11/16-14 Male SAE O-Ring Face Seal To 1/2-14 Male NPT, Straight

FF2031T0608S Steel Male ORS To NPT Adapter

0.38

11/16-14

1/2-14

1.55

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 1/4-18 Male NPT, Straight

FF2031T0804S Steel Male ORS To NPT Adapter

0.5

13/16-16

1/4-18

1.36

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/8-18 Male NPT, Straight

FF2031T0806S Steel Male ORS To NPT Adapter

0.5

13/16-16

3/8-18

1.36

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 1/2-14 Male NPT, Straight

FF2031T0808S Steel Male ORS To NPT Adapter

0.5

13/16-16

1/2-14

1.61

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1/2-14 Male NPT, Straight

FF2031T1008S Steel Male ORS To NPT Adapter

0.63

1-14

1/2-14

1.72

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FF2031T1012S Steel Male ORS To NPT Adapter

0.63

1-14

3/4-14

1.78

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FF2031T1212S Steel Male ORS To NPT Adapter

0.75

1-3/16-12

3/4-14

1.84

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-11-1/2 Male NPT, Straight

FF2031T1216S Steel Male ORS To NPT Adapter

0.75

1-3/16-12

1-11-1/2

2.03

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FF2031T1612S Steel Male ORS To NPT Adapter

1

1-7/16-12

3/4-14

1.86

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-11-1/2 Male NPT, Straight

FF2031T1616S Steel Male ORS To NPT Adapter

1

1-7/16-12

1-11-1/2

2.05

Steel Adapter, 1-11/16-12 Male SAE O-Ring Face Seal To 1-1/4-11-1/2 Male NPT, Straight

FF2031T2020S Steel Male ORS To NPT Adapter

1.25

1-11/16-12

1-1/4-11-1/2

2.16

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FS2404-08-12 Steel Male ORS To NPT Adapter

0.5

13/16-16

3/4-14

1.69

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-11-1/2 Male NPT, Straight

FS2404-10-16 Steel Male ORS To NPT Adapter

0.63

1-14

1-11-1/2

Product Questions & Answers (2)

Question by: Carl R on Oct 18, 2025, 8:07 PM
Trying to swap out an old fitting, is this one the straight adapter that goes from 1-7/16-12 male SAE O-ring face seal over to 3/4-14 male NPT?
Answer by: Customer Support on Oct 20, 2025, 3:58 PM
For a straight ORS to NPT hookup, this part matches those exact end connections: 1-7/16-12 male SAE O-ring face seal on one end and 3/4-14 male NPT on the other. It is a steel Eaton Aeroquip FF2031T Series adapter (SKU FF2031T1612S).
Question by: Hubert A on Sep 11, 2025, 1:19 PM
Got a hydraulic line on a piece of equipment that's got a 3/4-14 NPT port and I need to tie into a system running SAE O-Ring Face Seal fittings. This adapter do the trick for something like that?
Answer by: Customer Support on Sep 12, 2025, 1:58 PM
That's what this adapter is built for. One end is 1-7/16-12 Male SAE O-Ring Face Seal and the other is 3/4-14 Male NPT, straight configuration. So if your port is female NPT and your mating fitting is female ORS, you're connecting the two with this piece in between. It's part of Eaton Aeroquip's FF2031T Series, so it's a production-grade fitting, not a one-off solution.
