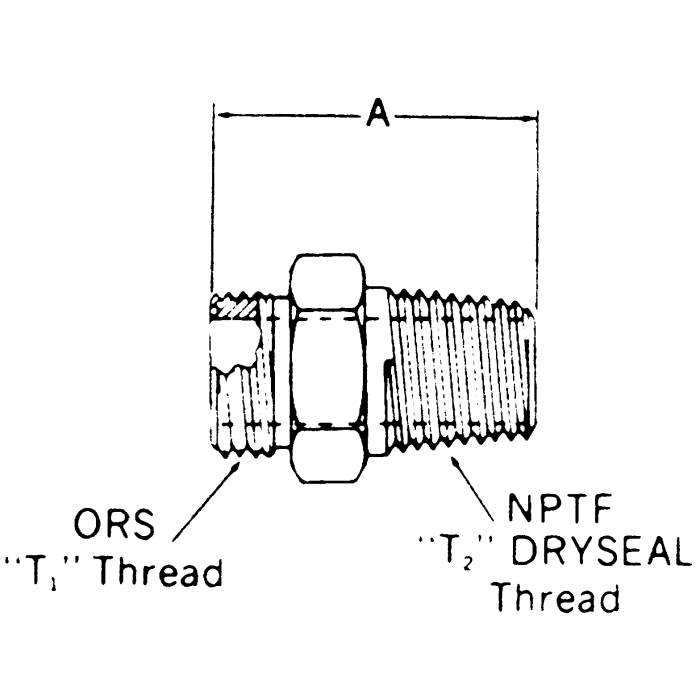

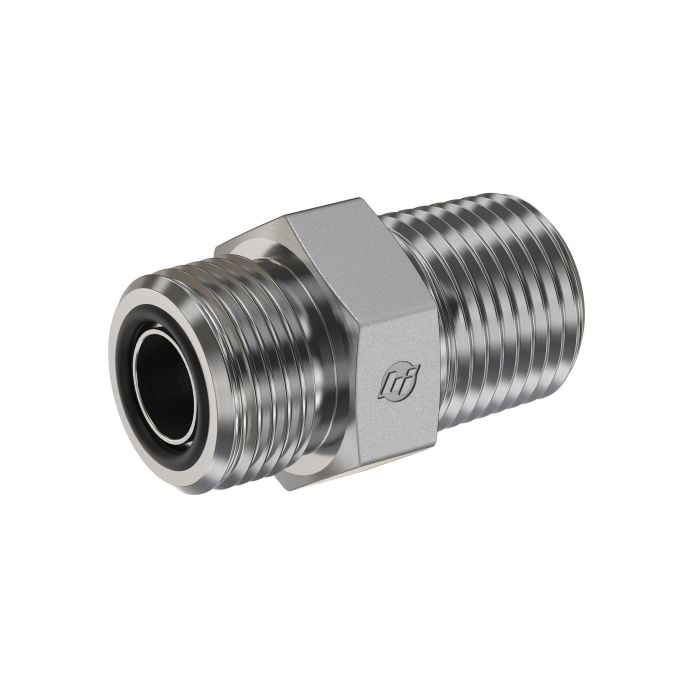

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-11-1/2 Male NPT, Straight

Ask A Question

Description & Features

This steel adapter features a 1-14 Male SAE O-Ring Face Seal connection on one end and a 1-11-1/2 Male NPT connection on the other. This straight adapter is suitable for connecting O-Ring Face Seal to pipe systems.

The Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-11-1/2 Male NPT, Straight, facilitates secure and reliable connections in various hydraulic applications. It has a tube O.D. of 0.63 inches.

SKU: FS2404-10-16

Supplier Part Number (MPN): FS2404-10-16

Alternate Part Numbers: AFF2031T1016S, C1ED33, FF2404-10-16

Specifications

Brand
BRENNAN
Connection Size 1
5/8 in
Connection Size 2
1 in
Connection Type
Male ORFS, MNPT
Connection Type 1
Male ORFS
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J1453/J476/J515
Dimensions
1.95 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-3/8 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
4500 psi
Operating Temperature
-40 to 250 deg F
Series
FS2404 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-14 x 1-11-1/2
Tube Outside Diameter
0.63 in

Similar Products

Model Number Tube O.D. Thread Size Thread 2 A Price Action
Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 1/4-18 Male NPT, Straight

FF2031T0404S Steel Male ORS To NPT Adapter

0.25

1/4-18 x 9/16-18

1/4-18

1.24

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 3/8-18 Male NPT, Straight

FF2031T0406S Steel Male ORS To NPT Adapter

0.25

3/8-18, 9/16-18

3/8-18

1.24

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 1/4-18 Male NPT, Straight

FF2031T0604S Steel Male ORS To NPT Adapter

0.38

11/16-16, 1/4-18

1/4-18

1.3

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 3/8-18 Male NPT, Straight

FF2031T0606S Steel Male ORS To NPT Adapter

0.38

11/16-16 x 3/8-18

3/8-18

1.3

Steel Adapter, 11/16-14 Male SAE O-Ring Face Seal To 1/2-14 Male NPT, Straight

FF2031T0608S Steel Male ORS To NPT Adapter

0.38

11/16-16 x 1/2-14

1/2-14

1.55

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 1/4-18 Male NPT, Straight

FF2031T0804S Steel Male ORS To NPT Adapter

0.5

13/16-16, 1/4-18

1/4-18

1.36

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/8-18 Male NPT, Straight

FF2031T0806S Steel Male ORS To NPT Adapter

0.5

13/16-16 x 3/8-18

3/8-18

1.36

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 1/2-14 Male NPT, Straight

FF2031T0808S Steel Male ORS To NPT Adapter

0.5

13/16-16 x 13/16-16 x 1/2-14

1/2-14

1.61

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1/2-14 Male NPT, Straight

FF2031T1008S Steel Male ORS To NPT Adapter

0.63

1-14 x 1/2-14

1/2-14

1.72

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FF2031T1012S Steel Male ORS To NPT Adapter

0.63

1-14 x 3/4-14

3/4-14

1.78

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FF2031T1212S Steel Male ORS To NPT Adapter

0.75

1-3/16-12 x 3/4-14

3/4-14

1.84

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-11-1/2 Male NPT, Straight

FF2031T1216S Steel Male ORS To NPT Adapter

0.75

1-3/16-12 x 1-11-1/2

1-11-1/2

2.03

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FF2031T1612S Steel Male ORS To NPT Adapter

1

1-7/16-12 x 3/4-14

3/4-14

1.86

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-11-1/2 Male NPT, Straight

FF2031T1616S Steel Male ORS To NPT Adapter

1

1-7/16-12 x 1-11-1/2

1-11-1/2

2.05

Steel Adapter, 1-11/16-12 Male SAE O-Ring Face Seal To 1-1/4-11-1/2 Male NPT, Straight

FF2031T2020S Steel Male ORS To NPT Adapter

1.25

1-11/16-12, 1-1/4-11-1/2

1-1/4-11-1/2

2.16

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-14 Male NPT, Straight

FS2404-08-12 Steel Male ORS To NPT Adapter

0.5

13/16-16, 3/4-14

3/4-14

1.69

Product Questions & Answers (1)

Question by: Tammy H on Nov 16, 2025, 9:13 AM
trying to connect an O-ring face seal line to a pipe thread fitting on a pump housing, would this adapter handle that kind of hookup?
Answer by: Customer Support on Nov 17, 2025, 5:20 PM
That's exactly the kind of connection this piece is built for. One end is a 1-14 Male SAE O-Ring Face Seal and the other is a 1-11-1/2 Male NPT, so you'd be threading the NPT side into your pipe thread port and running your ORS line off the other end. Straight configuration means no angle change in the hydraulic connections, just a clean in-line transition between those two thread types.
