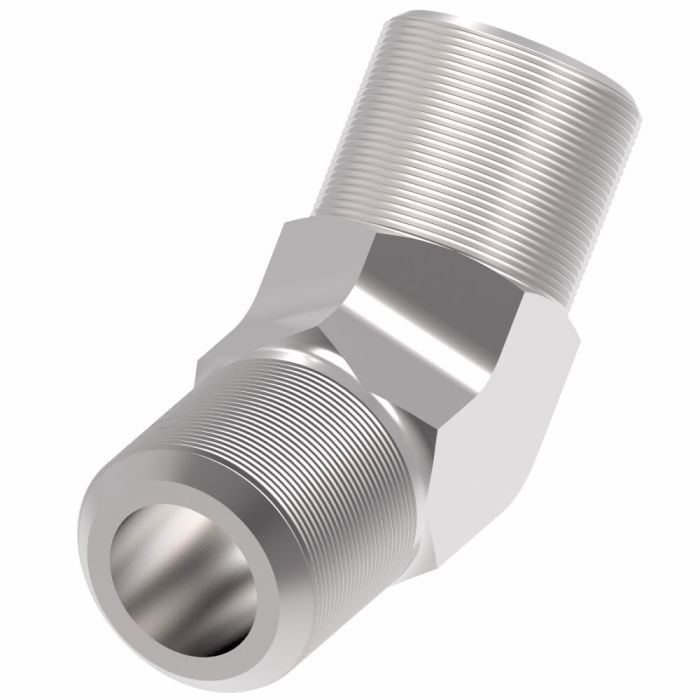

main product photo

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

Ask A Question

Description & Features

This steel 45-degree elbow adapter features a 9/16-18 Male SAE O-Ring Face Seal connection to a 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) connection. The Eaton Aeroquip fitting is suitable for various applications, including marine/military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling.

This Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow has an A dimension of 0.63, a B dimension of 1.18, and a C dimension of 0.37. Fluid compatibility information is available via the attached document link.

SKU: FF2068T0404S

Supplier Part Number (MPN): FF2068T0404S

Alternate Part Numbers: C1HX80

Specifications

A
0.63
Alternate Part Numbers
Alternate Part Number C1HX80
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.18
C
0.37
Drop Dimension
1.18
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.56
End Size 2
0.44
End Type 1
ORS
End Type 2
SAE ORB
Minimum Working Temperature
-65
Supplier Part Number
FF2068T0404S
Thread 1
9/16-18
Thread 2
7/16-20
Thread Sealant
No
Tube O.D.
0.25
Tube O.D.
0.25
Product Weight
0.10 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B C Price Action
Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

FF2068T0404S Steel Male ORS To ORB 45 Elbow

0.25

9/16-18

7/16-20

0.63

1.18

0.37

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

FF2068T0606S Steel Male ORS To ORB 45 Elbow

0.38

11/16-16

9/16-18

0.74

1.3

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

FF2068T0808S Steel Male ORS To ORB 45 Elbow

0.5

13/16-16

3/4-16

0.8

1.43

0.55

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

FF2068T1212S Steel Male ORS To ORB 45 Elbow

0.75

1-3/16-12

1-1/16-12

1.02

1.97

0.73

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

FF2068T1616S Steel Male ORS To ORB 45 Elbow

1

1-7/16-12

1-5/16-12

1.18

2.06

0.73

Product Questions & Answers (1)

Question by: Gary H on Apr 20, 2025, 10:50 AM
What industries is this elbow adapter actually built for? Trying to figure out if it fits our setup before ordering.
Answer by: Customer Support on Apr 22, 2025, 6:01 AM
Eaton Aeroquip built this fitting for some pretty demanding environments. It sees use in marine and military applications, chemical processing, pulp and paper use, food and beverage processing, and offshore drilling. If your system falls into any of those categories, this adapter was made with those conditions in mind.
