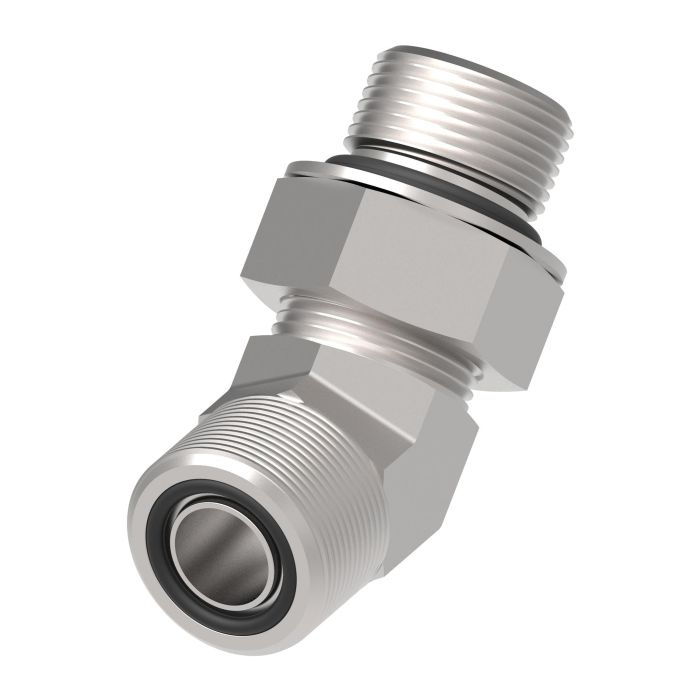

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

Ask A Question

Description & Features

This 45-degree elbow steel adapter features a 13/16-16 Male SAE O-Ring Face Seal connection on one end and a 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) connection on the other. The Eaton Aeroquip Steel Adapter is suitable for demanding applications.

With broad application compatibility, this adapter can be used in marine/military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling environments.

SKU: FF2068T0808S

Supplier Part Number (MPN): FF2068T0808S

Alternate Part Numbers: C1JA76, MI-00309254, MINO-00015F59322

Specifications

A
0.80
Alternate Part Numbers
Alternate Part Number C1JA76, Alternate Part Number MI-00309254, Alternate Part Number MINO-00015F59322
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.43
C
0.55
Drop Dimension
1.43
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.81
End Size 2
0.75
End Type 1
ORS
End Type 2
SAE ORB
Minimum Working Temperature
-65
Supplier Part Number
FF2068T0808S
Thread 1
13/16-16
Thread 2
3/4-16
Thread Sealant
No
Tube O.D.
0.50
Tube O.D.
0.5
Product Weight
0.49 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B C Price Action
Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

FF2068T0404S Steel Male ORS To ORB 45 Elbow

0.25

9/16-18

7/16-20

0.63

1.18

0.37

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

FF2068T0606S Steel Male ORS To ORB 45 Elbow

0.38

11/16-16

9/16-18

0.74

1.3

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

FF2068T0808S Steel Male ORS To ORB 45 Elbow

0.5

13/16-16

3/4-16

0.8

1.43

0.55

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

FF2068T1212S Steel Male ORS To ORB 45 Elbow

0.75

1-3/16-12

1-1/16-12

1.02

1.97

0.73

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

FF2068T1616S Steel Male ORS To ORB 45 Elbow

1

1-7/16-12

1-5/16-12

1.18

2.06

0.73

Product Questions & Answers (3)

Question by: Travis R on Jan 6, 2026, 3:54 PM
got a system running SAE ORB ports on one side and face seal fittings on the other, this adapter bridge that gap at a 45 degree angle?
Answer by: Customer Support on Jan 8, 2026, 6:02 AM
That's what this one does. One end is a 13/16-16 Male SAE O-Ring Face Seal and the other is a 3/4-16 Male SAE O-Ring Boss. The 45-degree angle gives you some routing flexibility when a straight adapter just won't work with your layout. Both thread sizes are stamped right into the part number, so there's no guessing on fit.
Question by: Randy P on Oct 1, 2025, 3:56 PM
Will this fitting work with a standard SAE O-ring?
Answer by: Customer Support on Oct 2, 2025, 4:54 PM
Yes, this adapter features SAE O-ring Face Seal and SAE O-ring Boss connections, so it's designed to work with standard SAE O-rings.
Question by: Daryl H on Oct 3, 2025, 10:10 AM
got a tight spot on a hose run. is this the 45 degree elbow that goes from 13/16-16 male ORFS over to 3/4-16 male ORB?
Answer by: Customer Support on Oct 4, 2025, 5:08 PM
For that combo, yes. One end is 13/16-16 Male SAE O-Ring Face Seal (ORFS) and the other end is 3/4-16 Male SAE O-Ring Boss (straight thread O-ring), and the body is a 45 degree elbow.
