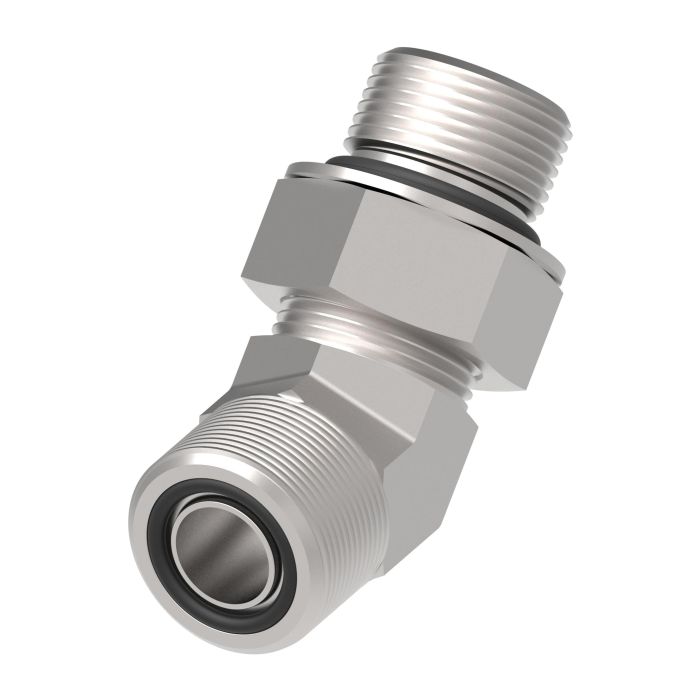

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

Ask A Question

Description & Features

Designed for demanding industrial environments, this Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow is part of the Eaton Aeroquip FF2068T Series. The 45-degree elbow configuration allows for directional routing in space-constrained hydraulic assemblies, connecting an SAE O-Ring Face Seal port to an SAE O-Ring Boss port for a reliable, leak-resistant seal at both ends.

Rated for use across a broad range of industries, this adapter is suited for marine and military equipment, chemical processing, pulp and paper, food and beverage processing, and off-shore drilling applications. Key dimensions include an A measurement of 1.02 inches, B of 1.97 inches, and C of 0.73 inches. The catalog reference for this part is C1JC84.

SKU: FF2068T1212S

Supplier Part Number (MPN): FF2068T1212S

Alternate Part Numbers: C1JC84

Specifications

A
1.02
Alternate Part Numbers
Alternate Part Number C1JC84
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.97
C
0.73
Drop Dimension
1.97
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Type 1
ORS
End Type 2
SAE ORB
Minimum Working Temperature
-65
Seal Part if Included
FF9446-16|22617-08
Supplier Part Number
FF2068T1212S
Thread 1
1-3/16-12
Thread 2
1-1/16-12
Thread Sealant
No
Tube O.D.
0.75
Tube O.D.
0.75
Product Weight
0.67 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B C Price Action
Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

FF2068T0404S Steel Male ORS To ORB 45 Elbow

0.25

9/16-18

7/16-20

0.63

1.18

0.37

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

FF2068T0606S Steel Male ORS To ORB 45 Elbow

0.38

11/16-16

9/16-18

0.74

1.3

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

FF2068T0808S Steel Male ORS To ORB 45 Elbow

0.5

13/16-16

3/4-16

0.8

1.43

0.55

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

FF2068T1212S Steel Male ORS To ORB 45 Elbow

0.75

1-3/16-12

1-1/16-12

1.02

1.97

0.73

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), 45 deg Elbow

FF2068T1616S Steel Male ORS To ORB 45 Elbow

1

1-7/16-12

1-5/16-12

1.18

2.06

0.73

Product Questions & Answers (3)

Question by: Wade R on Mar 13, 2026, 5:13 PM
Will this fitting work for connecting a gauge that uses an SAE O-ring to a manifold?
Answer by: Customer Support on Mar 15, 2026, 6:33 AM
This 45-degree elbow adapter is designed to connect an SAE O-Ring Face Seal port to an SAE O-Ring Boss port. It's made for hydraulic applications needing a leak-resistant seal at both ends.
Question by: Tony C on Feb 22, 2026, 11:53 AM
trying to swap out an old elbow, are both ends on this one male and what styles are they?
Answer by: Customer Support on Feb 24, 2026, 6:59 AM
Both connections are male. One end is a 1-3/16-12 Male SAE O-Ring Face Seal (ORS) and the other end is a 1-1/16-12 Male SAE O-Ring Boss (straight thread O-ring), built as a 45 degree elbow.
Question by: Wes T on Nov 21, 2025, 5:28 PM
Got a tight spot in a hydraulic line where I need to change direction without a whole lot of room to work with, would a 45-degree elbow like this do the trick better than trying to force a straight adapter in there?
Answer by: Customer Support on Nov 23, 2025, 6:56 AM
A 45-degree configuration handles exactly that kind of situation. When routing lines through cramped assemblies, a straight adapter often creates binding or puts stress on the hose or tubing. The angled geometry here lets you redirect flow at 45 degrees, which takes pressure off the connection and gives you a cleaner, more manageable run through tight spaces. It connects an SAE O-Ring Face Seal port on one end to an SAE O-Ring Boss port on the other, so both ends get a proper seal rather than relying on thread contact alone.
