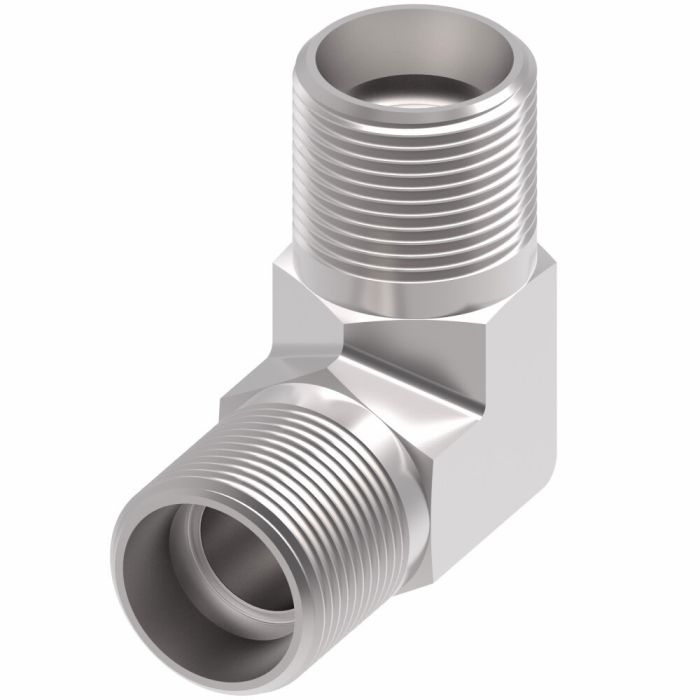

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow

Description & Features

This steel adapter features a 9/16-18 Male SAE O-Ring Face Seal connection to a 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) connection, configured as a 90-degree elbow. Well-suited for demanding applications, this adapter is commonly used in marine/military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling environments.

Manufactured by Eaton Aeroquip, this adapter ensures reliable performance. The product name is Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), 90 deg Elbow. It has dimensions A: 0.85, B: 1.29, and C: 0.43. For fluid compatibility details, refer to the provided document link.

SKU: FF1868T0404S

Supplier Part Number (MPN): FF1868T0404S

Alternate Part Numbers: C1CU83, MI-00306433, MINO-00015F55511

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 0.85 in	b Dimensions 1.29 in	c Dimensions 0.43 in	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Male ORFS, Male SAE ORB	Connection Type 1 Male ORFS	Connection Type 2 Male SAE Adjustable ORB	Dimension Standards SAE 520220/J1453/J1926	Drop Dimensions 1.29 in	Finish Dura-Kote™	Fitting Type 90 deg Elbow	Hex Size 5/8 in	Material Steel	Material Construction Carbon Steel	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series FF1868T Series	Thread Size 9/16-18, 7/16-20	Tube OD 1/4 in

Similar Products

Model Number	Tube O.D.	Thread Size	Thread 2	a Dimensions	b Dimensions	c Dimensions
FF1868T0406S Steel Male ORS To ORB 90 Elbow	0.25	9/16-18	9/16-18	0.92 in	1.45 in	0.47 in
FF1868T0604S Steel Male ORS To ORB 90 Elbow	0.38	11/16-16 x 7/16-20	7/16-20	0.98 in	1.37 in	0.43 in
FF1868T0606S Steel Male ORS To ORB 90 Elbow	0.38	11/16-16, 9/16-18	9/16-18	0.98 in	1.45 in	0.47 in
FF1868T0608S Steel Male ORS To ORB 90 Elbow	0.38	11/16-16 x 3/4-16	3/4-16	1.04 in	1.6 in	0.55 in
FF1868T0806S Steel Male ORS To ORB 90 Elbow	0.5	13/16-16 x 9/16-18 x 13/16-16	9/16-18	1.1 in	1.44 in	0.47 in
FF1868T0808S Steel Male ORS To ORB 90 Elbow	0.5	13/16-16 x 3/4-16	3/4-16	1.1 in	1.6 in	0.55 in
FF1868T0810S Steel Male ORS To ORB 90 Elbow	0.5	13/16-16 x 7/8-14	7/8-14	1.21 in	1.97 in	0.63 in
FF1868T0812S Steel Male ORS To ORB 90 Elbow	0.5	13/16-16, 1-1/16-12	1-1/16-12	1.32 in	2.17 in	0.73 in
FF1868T1010S Steel Male ORS To ORB 90 Elbow	0.63	1-14 x 1-14 x 7/8-14	7/8-14	1.31 in	1.97 in	0.63 in
FF1868T1012S Steel Male ORS To ORB 90 Elbow	0.63	1-14 x 1-1/16-12	1-1/16-12	1.41 in	2.17 in	0.73 in
FF1868T1212S Steel Male ORS To ORB 90 Elbow	0.75	1-3/16-12 x 1-1/16-12	1-1/16-12	1.47 in	2.17 in	0.73 in
FF1868T1616S Steel Male ORS To ORB 90 Elbow	1	1-7/16-12, 1-5/16-12	1-5/16-12	1.64 in	2.35 in	0.73 in

Product Questions & Answers (3)

Question by: Tammy R on Feb 16, 2026, 10:28 AM

got a tight spot on my lines. is this the 90 degree elbow that goes from 9/16-18 male ORFS over to 7/16-20 male SAE O-ring boss?

Answer by: Customer Support on Feb 17, 2026, 3:42 PM

Matches that layout. One end is 9/16-18 Male SAE O-Ring Face Seal, and the other is 7/16-20 Male SAE O-Ring Boss with a straight thread O-ring, built as a 90 degree elbow.

Question by: Vince Y on Jul 19, 2025, 11:08 AM

Will this here fitting hold up okay in a marine environment, say on a fishing boat?

Answer by: Customer Support on Jul 21, 2025, 7:55 AM

This Eaton Aeroquip adapter is indeed well-suited for marine applications, along with chemical processing, pulp and paper, food and beverage, and even offshore drilling.

Question by: Tony T on May 3, 2025, 9:02 AM

got a 9/16-18 ORF seal fitting on a hydraulic line and need to drop down to a 7/16-20 ORB port on a valve block, this elbow gonna make that connection work?

Answer by: Customer Support on May 4, 2025, 3:53 PM

That's exactly what this fitting handles. One end is a 9/16-18 Male SAE O-Ring Face Seal and the other is a 7/16-20 Male SAE O-Ring Boss, so you're connecting two different thread and sealing standards in one piece. The 90-degree angle also takes care of routing in tight spots where a straight adapter just won't clear. It's made by Eaton Aeroquip, and the overall envelope runs about 1.29 inches on the long side with a 0.85-inch width, so measure your clearance before you button everything up.
