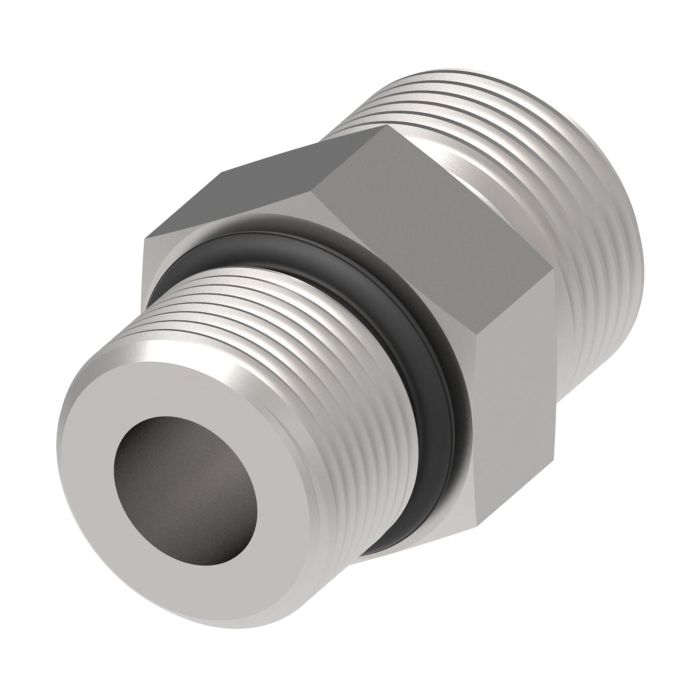

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

Description & Features

This steel adapter features a 9/16-18 Male SAE O-Ring Face Seal connection on one end and a 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) connection on the other. The Eaton Aeroquip fitting is suitable for applications such as marine/military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling.

This straight adapter, part of the Danfoss / Eaton FF1852T Series, offers a reliable connection in demanding hydraulic applications. Refer to the provided fluid compatibility document for proper usage.

SKU: FF1852T0404S

Supplier Part Number (MPN): FF1852T0404S

Alternate Part Numbers: C1CU64, MI-00306423, MINO-00015F55501

Specifications

Brand
Aeroquip® by Danfoss
c Dimensions
0.43 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male ORFS
Connection Type 2
Male SAE ORB
Dimension Standards
SAE 520120/J1453/J1926
Dimensions
1.13 in L
Finish
Dura-Kote™
Fitting Type
Adapter
Hex Size
5/8 in
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
FF1852T Series
Thread Size
9/16-18, 7/16-20
Tube OD
1/4 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0610S Steel Male ORS To ORB Adapter

3/8 in

5/8 in

11/16-16, 7/8-14

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0606S Steel Male ORS To ORB Adapter

3/8 in

3/8 in

11/16-16, 9/16-18

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0406S Steel Male ORS To ORB Adapter

1/4 in

3/8 in

9/16-18

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0806S Steel Male ORS To ORB Adapter

1/2 in

3/8 in

13/16-16 x 9/16-18 x 13/16-16

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1010S Steel Male ORS To ORB Adapter

5/8 in

5/8 in

1-14 x 1-14 x 7/8-14

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0604S Steel Male ORS To ORB Adapter

3/8 in

1/4 in

11/16-16 x 7/16-20

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1612S Steel Male ORS To ORB Adapter

1 in

3/4 in

1-7/16-12 x 1-1/16-12

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1616S Steel Male ORS To ORB Adapter

1 in

1 in

1-7/16-12, 1-5/16-12

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0808S Steel Male ORS To ORB Adapter

1/2 in

1/2 in

13/16-16 x 3/4-16

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 1/2-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0605S Steel Male ORS To ORB Adapter

3/8 in

5/16 in

11/16-16 x 1/2-20

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1212S Steel Male ORS To ORB Adapter

3/4 in

3/4 in

1-3/16-12 x 1-1/16-12

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0810S Steel Male ORS To ORB Adapter

1/2 in

5/8 in

13/16-16 x 7/8-14

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1012S Steel Male ORS To ORB Adapter

5/8 in

3/4 in

1-14 x 1-1/16-12

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0608S Steel Male ORS To ORB Adapter

3/8 in

1/2 in

11/16-16 x 3/4-16

Danfoss / Eaton ORS/SAE O-Ring BOSS

FF1852T0405S

1/4 in

5/16 in

9/16-18 x 1/2-20

DANFOSS / EATON ORS ADPT 4 ORS 8 ORB

FF1852T0408S

1/4 in

1/2 in

3/4-16, 9/16-18

DANFOSS / EATON 6MFF-12MORB

FF1852T0612S

3/8 in

3/4 in

11/16-16, 1-1/16-12

Aeroquip ORS/SAE O-Ring BOSS

FF1852T0616S

3/8 in

3/8 in

11/16-16, 1-5/16-12

DANFOSS / EATON ORS ADPT 8 ORS 12 ORB WIN

FF1852T0812S

1/2 in

3/4 in

13/16-16, 1-1/16-12

DANFOSS / EATON ADP 8 M ORS 14 M ORB

FF1852T0814S

1/2 in

1/2 in

13/16-16, 1-3/16-12

DANFOSS / EATON ORS ADPT 8 ORS 16 ORB

FF1852T0816S

1/2 in

1 in

13/16-16, 1-5/16-12

DANFOSS / EATON ADP 10 M ORS 8 F ORB

FF1852T1008S

5/8 in

1/2 in

1-14, 3/4-16

DANFOSS / EATON ORS ADPT 12 ORS 6 ORB

FF1852T1206S

3/4 in

3/4 in

9/16-18, 1-3/16-12

DANFOSS / EATON #12 MORS X #8 MORB

FF1852T1208S

3/4 in

1/2 in

1-3/16-12, 3/4-16

DANFOSS / EATON ORS ADP 12 ORS 10 ORB

FF1852T1210S

3/4 in

5/8 in

1-3/16-12, 7/8-14

DANFOSS / EATON ORS ADP 12 ORS 16 ORB WIN

FF1852T1216S

3/4 in

1 in

1-3/16-12 x 1-5/16-12

DANFOSS / EATON ORS ADPT 16 ORS 8 ORB

FF1852T1608S

1 in

1 in

1-7/16-12, 3/4-16

DANFOSS / EATON ORS ADP 16 ORS 10 ORB

FF1852T1610S

1 in

1 in

1-7/16-12, 7/8-14

DANFOSS / EATON #16 MORS X #20 MORB

FF1852T1620S

1 in

1-1/4 in

1-7/16-12, 1-5/8-12

DANFOSS / EATON 20 MALE ORS /-16 MALE ORING BOSS W

FF1852T2016S

1-1/4 in

1 in

1-11/16-12, 1-5/16-12

DANFOSS / EATON ORS ADP 20 ORS 20 ORB WIN

FF1852T2020S

1-1/4 in

1-1/4 in

1-11/16-12, 1-5/8-12

Danfoss / Eaton ORS ADPT

FF1852T2024S

1-1/4 in

1-1/2 in

1-11/16-12, 1-7/8-12

DANFOSS / EATON ORS ADP 24 ORS 20 ORB

FF1852T2420S

1-1/2 in

1-1/4 in

2-12, 1-5/8-12

DANFOSS / EATON ADPTRS/TUBE ADAPTER - CO WIN

FF1852T2424S

1-1/2 in

1-1/2 in

2-12, 1 7/8-12

Product Questions & Answers (3)

Question by: Frank W on Feb 9, 2026, 3:31 PM
what industries is this fitting actually built for? got a few different applications and trying to figure out if it covers what I need
Answer by: Customer Support on Feb 10, 2026, 3:41 PM
Food and beverage processing, chemical processing, pulp and paper, marine and military, and offshore drilling are all listed applications for this fitting. That covers a pretty wide range of demanding environments, so odds are good it fits what you're working with.
Question by: Peggy E on Jun 3, 2025, 2:44 PM
Is this adapter okay for use with different types of hydraulic fluid, or just specific ones?
Answer by: Customer Support on Jun 4, 2025, 5:34 PM
You'll want to take a look at the fluid compatibility document that's linked on the product page. It'll give you the specifics on which fluids this adapter is good to go with.
Question by: Rhonda J on Feb 20, 2026, 6:21 PM
trying to swap fittings on a line, is this one a straight adapter that goes 9/16-18 male ORFS over to 7/16-20 male ORB?
Answer by: Customer Support on Feb 22, 2026, 6:42 AM
Yes, it is a straight steel adapter with a 9/16-18 Male SAE O-Ring Face Seal on one end and a 7/16-20 Male SAE O-Ring Boss (straight thread O-ring) on the other.
