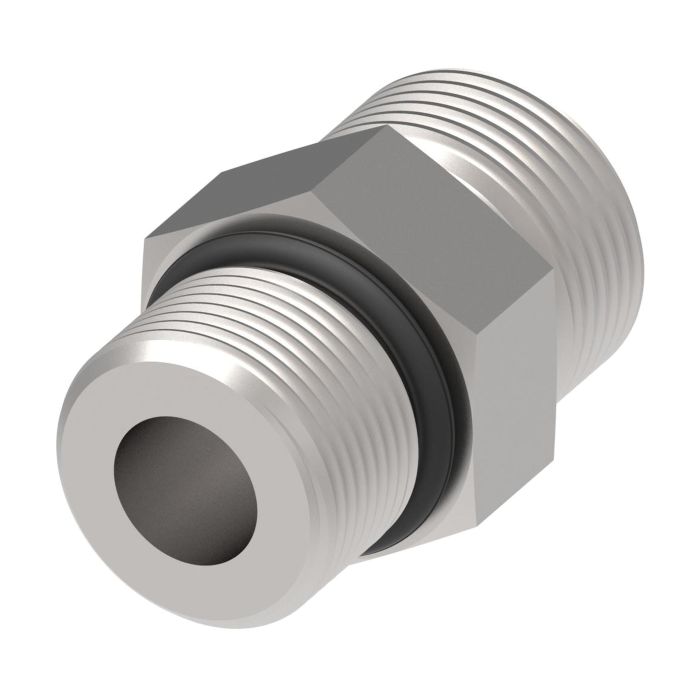

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

Description & Features

Designed for demanding environments, the Eaton Aeroquip steel adapter offers reliable connections for hydraulic systems. Featuring a 9/16-18 male SAE O-ring face seal and a 9/16-18 male SAE O-ring boss, this straight-thread O-ring connector ensures secure and leak-free performance. Its robust steel construction makes it ideal for marine, military, chemical processing, pulp and paper, food and beverage processing, and off-shore drilling applications, providing durability in harsh conditions.

This adapter is part of the Danfoss / Eaton FF1852T Series, known for its precision-engineered components that meet rigorous industry standards. Its versatile compatibility with various hydraulic fluids is backed by comprehensive fluid compatibility documentation, ensuring optimal performance across a wide range of industrial applications.

SKU: FF1852T0406S

Supplier Part Number (MPN): FF1852T0406S

Alternate Part Numbers: C1EQ37, MI-00306495, MINO-00015F55571

Specifications

Brand Aeroquip® by Danfoss	c Dimensions 0.47 in	Connection Size 1 1/4 in	Connection Size 2 3/8 in	Connection Type Male ORFS, Male SAE ORB	Connection Type 1 Male ORFS	Connection Type 2 Male SAE ORB	Dimension Standards SAE 520120/J1453/J1926	Dimensions 1.2 in L	Finish Dura-Kote™	Fitting Type Adapter	Hex Size 11/16 in	Material Steel	Material Construction Carbon Steel	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series FF1852T Series	Thread Size 9/16-18	Tube OD 1/4 in

Similar Products

Model Number	Tube O.D.	Thread Size	Thread 2	A	c Dimensions
FF1852T0810S Steel Male ORS To ORB Adapter	0.5	13/16-16 x 7/8-14	7/8-14	1.59	0.63 in
FF1852T1612S Steel Male ORS To ORB Adapter	1	1-7/16-12 x 1-1/16-12	1-1/16-12	2.14	0.73 in
FF1852T1616S Steel Male ORS To ORB Adapter	1	1-7/16-12, 1-5/16-12	1-5/16-12	1.98	0.73 in
FF1852T0404S Steel Male ORS To ORB Adapter	0.25	9/16-18, 7/16-20	7/16-20	1.13	0.43 in
FF1852T0604S Steel Male ORS To ORB Adapter	0.38	11/16-16 x 7/16-20	7/16-20	1.34	0.43 in
FF1852T0605S Steel Male ORS To ORB Adapter	0.38	11/16-16 x 1/2-20	1/2-20	1.22	0.43 in
FF1852T0606S Steel Male ORS To ORB Adapter	0.38	11/16-16, 9/16-18	9/16-18	1.26	0.47 in
FF1852T0608S Steel Male ORS To ORB Adapter	0.38	11/16-16 x 3/4-16	3/4-16	1.38	0.55 in
FF1852T0610S Steel Male ORS To ORB Adapter	0.38	11/16-16, 7/8-14	7/8-14	1.53	0.63 in
FF1852T0806S Steel Male ORS To ORB Adapter	0.5	13/16-16 x 9/16-18 x 13/16-16	9/16-18	1.48	0.47 in
FF1852T0808S Steel Male ORS To ORB Adapter	0.5	13/16-16 x 3/4-16	3/4-16	1.44	0.55 in
FF1852T1010S Steel Male ORS To ORB Adapter	0.63	1-14 x 1-14 x 7/8-14	7/8-14	1.7	0.63 in
FF1852T1012S Steel Male ORS To ORB Adapter	0.63	1-14 x 1-1/16-12	1-1/16-12	1.86	0.73 in
FF1852T1212S Steel Male ORS To ORB Adapter	0.75	1-3/16-12 x 1-1/16-12	1-1/16-12	1.92	0.73 in
FS6400-20-20-O Steel Male ORS To ORB Adapter	1.25	1-11/16-12, 1-5/8-12	1-5/8-12	2.06

Product Questions & Answers (1)

Question by: Gene M on Apr 19, 2025, 7:44 PM

Will this work with standard hydraulic fluid or do I need something special?

Answer by: Customer Support on Apr 21, 2025, 6:14 AM

This Eaton Aeroquip adapter is compatible with a range of hydraulic fluids. You can check the fluid compatibility documentation on the product page for specifics to make sure it meets your needs.
