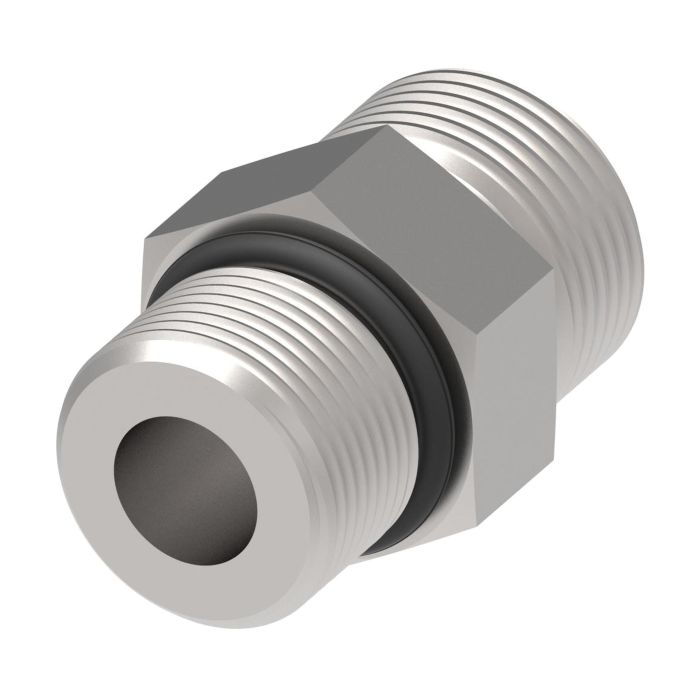

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

Description & Features

Rated for use in marine/military, chemical processing, pulp and paper, food and beverage, and off-shore drilling environments, this Danfoss Power Solutions (Aeroquip) FF1852T Series adapter is built to handle demanding hydraulic circuit requirements. The Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight connects an 11/16-16 male ORS end to a 3/4-16 male SAE ORB end in a straight configuration. Seals FF9446-12 and 22617-8 are included to support leak-free assembly at both connection points.

Constructed from steel with a minimum working temperature of -40°F, this adapter is well-suited for hydraulic systems exposed to temperature extremes or corrosive media. The straight thread O-ring boss end provides a secure, vibration-resistant port connection, while the O-ring face seal end delivers reliable sealing without thread sealant. Catalog number C1CU68 applies to this part.

SKU: FF1852T0608S

Supplier Part Number (MPN): FF1852T0608S

Alternate Part Numbers: C1CU68, FMC102-2038, MI-00444594, MINO-00015I01224

Specifications

Brand
Aeroquip® by Danfoss
c Dimensions
0.55 in
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male ORFS
Connection Type 2
Male SAE ORB
Dimension Standards
SAE 520120/J1453/J1926
Dimensions
1.38 in L
Finish
Dura-Kote™
Fitting Type
Adapter
Hex Size
7/8 in
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
FF1852T Series
Thread Size
11/16-16 x 3/4-16
Tube OD
3/8 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0610S Steel Male ORS To ORB Adapter

3/8 in

5/8 in

11/16-16, 7/8-14

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0606S Steel Male ORS To ORB Adapter

3/8 in

3/8 in

11/16-16, 9/16-18

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0406S Steel Male ORS To ORB Adapter

1/4 in

3/8 in

9/16-18

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0806S Steel Male ORS To ORB Adapter

1/2 in

3/8 in

13/16-16 x 9/16-18 x 13/16-16

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1010S Steel Male ORS To ORB Adapter

5/8 in

5/8 in

1-14 x 1-14 x 7/8-14

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0604S Steel Male ORS To ORB Adapter

3/8 in

1/4 in

11/16-16 x 7/16-20

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1612S Steel Male ORS To ORB Adapter

1 in

3/4 in

1-7/16-12 x 1-1/16-12

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0404S Steel Male ORS To ORB Adapter

1/4 in

1/4 in

9/16-18, 7/16-20

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1616S Steel Male ORS To ORB Adapter

1 in

1 in

1-7/16-12, 1-5/16-12

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0808S Steel Male ORS To ORB Adapter

1/2 in

1/2 in

13/16-16 x 3/4-16

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 1/2-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0605S Steel Male ORS To ORB Adapter

3/8 in

5/16 in

11/16-16 x 1/2-20

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1212S Steel Male ORS To ORB Adapter

3/4 in

3/4 in

1-3/16-12 x 1-1/16-12

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0810S Steel Male ORS To ORB Adapter

1/2 in

5/8 in

13/16-16 x 7/8-14

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1012S Steel Male ORS To ORB Adapter

5/8 in

3/4 in

1-14 x 1-1/16-12

Danfoss / Eaton ORS/SAE O-Ring BOSS

FF1852T0405S

1/4 in

5/16 in

9/16-18 x 1/2-20

DANFOSS / EATON ORS ADPT 4 ORS 8 ORB

FF1852T0408S

1/4 in

1/2 in

3/4-16, 9/16-18

DANFOSS / EATON 6MFF-12MORB

FF1852T0612S

3/8 in

3/4 in

11/16-16, 1-1/16-12

Aeroquip ORS/SAE O-Ring BOSS

FF1852T0616S

3/8 in

3/8 in

11/16-16, 1-5/16-12

DANFOSS / EATON ORS ADPT 8 ORS 12 ORB WIN

FF1852T0812S

1/2 in

3/4 in

13/16-16, 1-1/16-12

DANFOSS / EATON ADP 8 M ORS 14 M ORB

FF1852T0814S

1/2 in

1/2 in

13/16-16, 1-3/16-12

DANFOSS / EATON ORS ADPT 8 ORS 16 ORB

FF1852T0816S

1/2 in

1 in

13/16-16, 1-5/16-12

DANFOSS / EATON ADP 10 M ORS 8 F ORB

FF1852T1008S

5/8 in

1/2 in

1-14, 3/4-16

DANFOSS / EATON ORS ADPT 12 ORS 6 ORB

FF1852T1206S

3/4 in

3/4 in

9/16-18, 1-3/16-12

DANFOSS / EATON #12 MORS X #8 MORB

FF1852T1208S

3/4 in

1/2 in

1-3/16-12, 3/4-16

DANFOSS / EATON ORS ADP 12 ORS 10 ORB

FF1852T1210S

3/4 in

5/8 in

1-3/16-12, 7/8-14

DANFOSS / EATON ORS ADP 12 ORS 16 ORB WIN

FF1852T1216S

3/4 in

1 in

1-3/16-12 x 1-5/16-12

DANFOSS / EATON ORS ADPT 16 ORS 8 ORB

FF1852T1608S

1 in

1 in

1-7/16-12, 3/4-16

DANFOSS / EATON ORS ADP 16 ORS 10 ORB

FF1852T1610S

1 in

1 in

1-7/16-12, 7/8-14

DANFOSS / EATON #16 MORS X #20 MORB

FF1852T1620S

1 in

1-1/4 in

1-7/16-12, 1-5/8-12

DANFOSS / EATON 20 MALE ORS /-16 MALE ORING BOSS W

FF1852T2016S

1-1/4 in

1 in

1-11/16-12, 1-5/16-12

DANFOSS / EATON ORS ADP 20 ORS 20 ORB WIN

FF1852T2020S

1-1/4 in

1-1/4 in

1-11/16-12, 1-5/8-12

Danfoss / Eaton ORS ADPT

FF1852T2024S

1-1/4 in

1-1/2 in

1-11/16-12, 1-7/8-12

DANFOSS / EATON ORS ADP 24 ORS 20 ORB

FF1852T2420S

1-1/2 in

1-1/4 in

2-12, 1-5/8-12

DANFOSS / EATON ADPTRS/TUBE ADAPTER - CO WIN

FF1852T2424S

1-1/2 in

1-1/2 in

2-12, 1 7/8-12

Product Questions & Answers (1)

Question by: Larry P on Dec 28, 2025, 8:31 AM
got a port connection on a hydraulic valve block that keeps working loose from vibration, would the ORB end on this adapter help lock that down better than what I got now?
Answer by: Customer Support on Dec 29, 2025, 1:53 PM
Straight thread O-ring boss connections are specifically built for that problem. The sealing happens through an O-ring compressed against a machined seat at the port, not through thread engagement alone, so vibration doesn't compromise the seal the way it can with tapered thread fittings. The FF1852T0608S uses that ORB configuration on one end, which should give you a much more secure, vibration-resistant port connection than a standard threaded fitting would.
