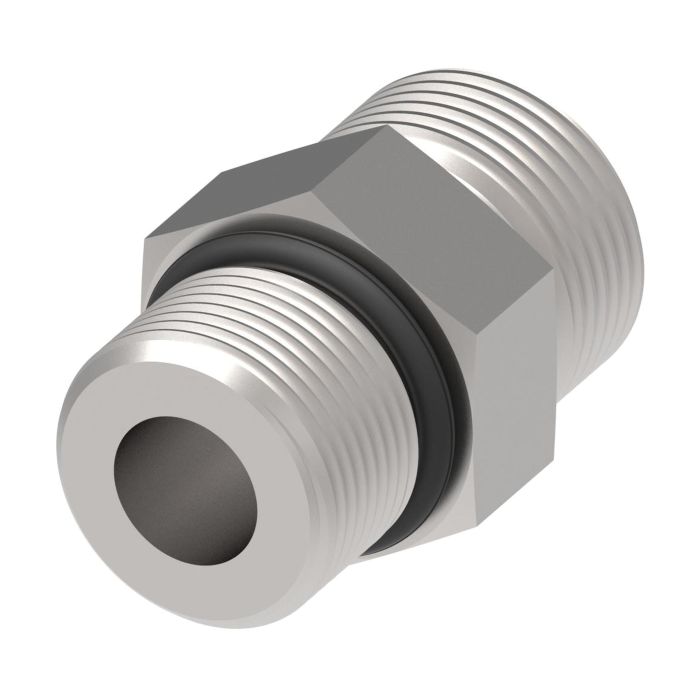

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

Description & Features

Built for demanding industrial environments, the Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight is part of the Eaton Aeroquip FF1852T series and provides a reliable straight connection between ORS and SAE O-Ring Boss ports. The all-steel construction suits high-pressure hydraulic circuits where leak-free performance is critical.

With an overall length of 1.53 inches and a hex dimension of 0.63 inches, this compact adapter is well-suited for space-constrained installations. It carries catalog number C1EU61 and is approved for use across marine and military, chemical processing, pulp and paper, food and beverage processing, and off-shore drilling applications, making it a versatile choice for both mobile and stationary hydraulic systems in harsh service conditions.

SKU: FF1852T0610S

Supplier Part Number (MPN): FF1852T0610S

Alternate Part Numbers: C1EU61, MI-00306478, MINO-00015F55554

Specifications

Brand Aeroquip® by Danfoss	c Dimensions 0.63 in	Connection Size 1 3/8 in	Connection Size 2 5/8 in	Connection Type Male ORFS, Male SAE ORB	Connection Type 1 Male ORFS	Connection Type 2 Male SAE ORB	Dimension Standards SAE 520120/J1453/J1926	Dimensions 1.53 in L	Finish Dura-Kote™	Fitting Type Adapter	Hex Size 1 x 1 in	Material Steel	Material Construction Carbon Steel	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series FF1852T Series	Thread Size 11/16-16, 7/8-14	Tube OD 3/8 in

Similar Products

Model Number	Tube O.D.	Thread Size	Thread 2	A	c Dimensions
FF1852T0810S Steel Male ORS To ORB Adapter	0.5	13/16-16 x 7/8-14	7/8-14	1.59	0.63 in
FF1852T1612S Steel Male ORS To ORB Adapter	1	1-7/16-12 x 1-1/16-12	1-1/16-12	2.14	0.73 in
FF1852T1616S Steel Male ORS To ORB Adapter	1	1-7/16-12, 1-5/16-12	1-5/16-12	1.98	0.73 in
FF1852T0404S Steel Male ORS To ORB Adapter	0.25	9/16-18, 7/16-20	7/16-20	1.13	0.43 in
FF1852T0406S Steel Male ORS To ORB Adapter	0.25	9/16-18	9/16-18	1.2	0.47 in
FF1852T0604S Steel Male ORS To ORB Adapter	0.38	11/16-16 x 7/16-20	7/16-20	1.34	0.43 in
FF1852T0605S Steel Male ORS To ORB Adapter	0.38	11/16-16 x 1/2-20	1/2-20	1.22	0.43 in
FF1852T0606S Steel Male ORS To ORB Adapter	0.38	11/16-16, 9/16-18	9/16-18	1.26	0.47 in
FF1852T0608S Steel Male ORS To ORB Adapter	0.38	11/16-16 x 3/4-16	3/4-16	1.38	0.55 in
FF1852T0806S Steel Male ORS To ORB Adapter	0.5	13/16-16 x 9/16-18 x 13/16-16	9/16-18	1.48	0.47 in
FF1852T0808S Steel Male ORS To ORB Adapter	0.5	13/16-16 x 3/4-16	3/4-16	1.44	0.55 in
FF1852T1010S Steel Male ORS To ORB Adapter	0.63	1-14 x 1-14 x 7/8-14	7/8-14	1.7	0.63 in
FF1852T1012S Steel Male ORS To ORB Adapter	0.63	1-14 x 1-1/16-12	1-1/16-12	1.86	0.73 in
FF1852T1212S Steel Male ORS To ORB Adapter	0.75	1-3/16-12 x 1-1/16-12	1-1/16-12	1.92	0.73 in
FS6400-20-20-O Steel Male ORS To ORB Adapter	1.25	1-11/16-12, 1-5/8-12	1-5/8-12	2.06
