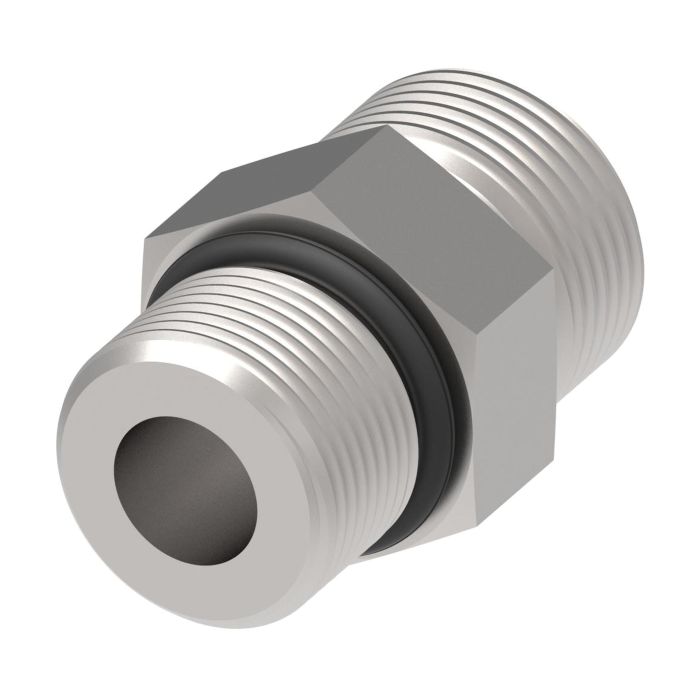

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

Description & Features

This Eaton Aeroquip steel adapter features a 13/16-16 Male SAE O-Ring Face Seal to 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) connection in a straight configuration. This straight adapter is part of the Danfoss / Eaton FF1852T Series and is suitable for applications in marine/military, chemical processing, pulp and paper industries, and food and beverage processing environments, as well as off-shore drilling.

This Eaton Aeroquip adapter, catalog number C1CU71, is designed to ensure reliable connections in demanding hydraulic applications.

SKU: FF1852T0810S

Supplier Part Number (MPN): FF1852T0810S

Alternate Part Numbers: C1CU71, MI-00306428, MINO-00015F55506

Specifications

Brand Aeroquip® by Danfoss	c Dimensions 0.63 in	Connection Size 1 1/2 in	Connection Size 2 5/8 in	Connection Type Male ORFS, Male SAE ORB	Connection Type 1 Male ORFS	Connection Type 2 Male SAE ORB	Dimension Standards SAE 520120/J1453/J1926	Dimensions 1.59 in L	Finish Dura-Kote™	Fitting Type Adapter	Hex Size 1 x 1 in	Material Steel	Material Construction Carbon Steel	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series FF1852T Series	Thread Size 13/16-16 x 7/8-14	Tube OD 1/2 in

Similar Products

Model Number	Tube O.D.	Thread Size	Thread 2	A	c Dimensions
FF1852T1612S Steel Male ORS To ORB Adapter	1	1-7/16-12 x 1-1/16-12	1-1/16-12	2.14	0.73 in
FF1852T1616S Steel Male ORS To ORB Adapter	1	1-7/16-12, 1-5/16-12	1-5/16-12	1.98	0.73 in
FF1852T0404S Steel Male ORS To ORB Adapter	0.25	9/16-18, 7/16-20	7/16-20	1.13	0.43 in
FF1852T0406S Steel Male ORS To ORB Adapter	0.25	9/16-18	9/16-18	1.2	0.47 in
FF1852T0604S Steel Male ORS To ORB Adapter	0.38	11/16-16 x 7/16-20	7/16-20	1.34	0.43 in
FF1852T0605S Steel Male ORS To ORB Adapter	0.38	11/16-16 x 1/2-20	1/2-20	1.22	0.43 in
FF1852T0606S Steel Male ORS To ORB Adapter	0.38	11/16-16, 9/16-18	9/16-18	1.26	0.47 in
FF1852T0608S Steel Male ORS To ORB Adapter	0.38	11/16-16 x 3/4-16	3/4-16	1.38	0.55 in
FF1852T0610S Steel Male ORS To ORB Adapter	0.38	11/16-16, 7/8-14	7/8-14	1.53	0.63 in
FF1852T0806S Steel Male ORS To ORB Adapter	0.5	13/16-16 x 9/16-18 x 13/16-16	9/16-18	1.48	0.47 in
FF1852T0808S Steel Male ORS To ORB Adapter	0.5	13/16-16 x 3/4-16	3/4-16	1.44	0.55 in
FF1852T1010S Steel Male ORS To ORB Adapter	0.63	1-14 x 1-14 x 7/8-14	7/8-14	1.7	0.63 in
FF1852T1012S Steel Male ORS To ORB Adapter	0.63	1-14 x 1-1/16-12	1-1/16-12	1.86	0.73 in
FF1852T1212S Steel Male ORS To ORB Adapter	0.75	1-3/16-12 x 1-1/16-12	1-1/16-12	1.92	0.73 in
FS6400-20-20-O Steel Male ORS To ORB Adapter	1.25	1-11/16-12, 1-5/8-12	1-5/8-12	2.06

Product Questions & Answers (5)

Question by: Danny K on Jan 15, 2026, 11:14 AM

Will this adapter work for hydraulic applications in a marine environment?

Answer by: Customer Support on Jan 16, 2026, 4:03 PM

Given its application in marine and military settings, it should hold up just fine in a marine hydraulic system.

Question by: Lance H on Feb 25, 2026, 1:51 PM

got a hose end with a 13/16-16 ORFS male, will this adapter screw right onto that and then into a 7/8-14 ORB port?

Answer by: Customer Support on Feb 27, 2026, 6:13 AM

The ends are a 13/16-16 male SAE O-Ring Face Seal (ORFS) on one side and a 7/8-14 male SAE O-Ring Boss (straight thread O-ring) on the other. It is a straight steel adapter meant to connect those two thread types and sizes.

Question by: Earl K on Jul 27, 2025, 7:00 PM

got a 13/16-16 ORS port on one end and a 7/8-14 ORB port on the other, will this adapter bridge those two without needing anything extra besides the o-rings?

Answer by: Customer Support on Jul 29, 2025, 9:14 AM

Both connection types use o-ring sealing, so no thread sealant is needed on either end. The adapter comes with seal parts 22617-10 and FF9446-14 included, so you should have what you need right out of the box to make that connection between a 13/16-16 male ORS fitting and a 7/8-14 male SAE O-Ring Boss port.

Question by: Patty B on Nov 19, 2025, 1:29 PM

Will this adapter let me hook up a SAE O-ring face seal to a SAE O-ring boss?

Answer by: Customer Support on Nov 21, 2025, 6:50 AM

This straight adapter is specifically made to connect a 13/16-16 Male SAE O-Ring Face Seal to a 7/8-14 Male SAE O-Ring Boss, also known as a Straight Thread O-Ring.

Question by: Denise C on Nov 16, 2025, 6:34 AM

what industries is this adapter actually used in? trying to figure out if it's right for our setup

Answer by: Customer Support on Nov 17, 2025, 9:27 PM

Food and beverage processing, chemical processing, pulp and paper, marine and military applications, and offshore drilling are all listed uses for this adapter. The O-ring face seal on one end and the O-ring boss on the other make it a solid fit for systems where leak-free connections matter and fluid compatibility has to hold up across demanding environments.
