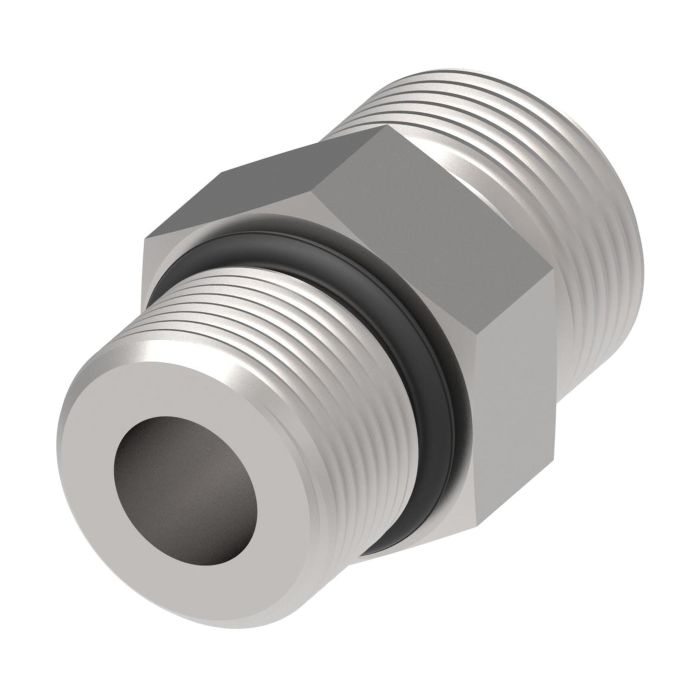

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

Description & Features

This Eaton Aeroquip steel adapter is designed for diverse applications, including marine and military environments, chemical processing, pulp and paper industries, and food and beverage processing, as well as off-shore drilling.

This straight adapter features a 1-14 Male SAE O-Ring Face Seal connection on one end and a 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) on the other.

SKU: FF1852T1012S

Supplier Part Number (MPN): FF1852T1012S

Alternate Part Numbers: C1EQ38, MI-00306473, MINO-00015F55550

Specifications

Brand Aeroquip® by Danfoss	c Dimensions 0.73 in	Connection Size 1 5/8 in	Connection Size 2 3/4 in	Connection Type Male ORFS, Male SAE ORB	Connection Type 1 Male ORFS	Connection Type 2 Male SAE ORB	Dimension Standards SAE 520120/J1453/J1926	Dimensions 1.86 in L	Finish Dura-Kote™	Fitting Type Adapter	Hex Size 1-1/4	Material Steel	Material Construction Carbon Steel	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series FF1852T Series	Thread Size 1-14 x 1-1/16-12

Similar Products

Model Number	Tube O.D.	Thread Size	Thread 2	A	c Dimensions
FF1852T0810S Steel Male ORS To ORB Adapter	0.5	13/16-16 x 7/8-14	7/8-14	1.59	0.63 in
FF1852T1612S Steel Male ORS To ORB Adapter	1	1-7/16-12 x 1-1/16-12	1-1/16-12	2.14	0.73 in
FF1852T1616S Steel Male ORS To ORB Adapter	1	1-7/16-12, 1-5/16-12	1-5/16-12	1.98	0.73 in
FF1852T0404S Steel Male ORS To ORB Adapter	0.25	9/16-18, 7/16-20	7/16-20	1.13	0.43 in
FF1852T0406S Steel Male ORS To ORB Adapter	0.25	9/16-18	9/16-18	1.2	0.47 in
FF1852T0604S Steel Male ORS To ORB Adapter	0.38	11/16-16 x 7/16-20	7/16-20	1.34	0.43 in
FF1852T0605S Steel Male ORS To ORB Adapter	0.38	11/16-16 x 1/2-20	1/2-20	1.22	0.43 in
FF1852T0606S Steel Male ORS To ORB Adapter	0.38	11/16-16, 9/16-18	9/16-18	1.26	0.47 in
FF1852T0608S Steel Male ORS To ORB Adapter	0.38	11/16-16 x 3/4-16	3/4-16	1.38	0.55 in
FF1852T0610S Steel Male ORS To ORB Adapter	0.38	11/16-16, 7/8-14	7/8-14	1.53	0.63 in
FF1852T0806S Steel Male ORS To ORB Adapter	0.5	13/16-16 x 9/16-18 x 13/16-16	9/16-18	1.48	0.47 in
FF1852T0808S Steel Male ORS To ORB Adapter	0.5	13/16-16 x 3/4-16	3/4-16	1.44	0.55 in
FF1852T1010S Steel Male ORS To ORB Adapter	0.63	1-14 x 1-14 x 7/8-14	7/8-14	1.7	0.63 in
FF1852T1212S Steel Male ORS To ORB Adapter	0.75	1-3/16-12 x 1-1/16-12	1-1/16-12	1.92	0.73 in
FS6400-20-20-O Steel Male ORS To ORB Adapter	1.25	1-11/16-12, 1-5/8-12	1-5/8-12	2.06

Product Questions & Answers (1)

Question by: Eddie S on Apr 28, 2025, 3:47 PM

got a hose end with a 1-14 ORFS on it already. is this the straight steel adapter that’ll mate that to a 1-1/16-12 SAE O-ring boss port?

Answer by: Customer Support on Apr 30, 2025, 6:21 AM

For a straight ORFS to ORB hookup, this adapter matches those thread ends: 1-14 male SAE O-ring face seal on one side and 1-1/16-12 male SAE O-ring boss (straight thread O-ring) on the other.
