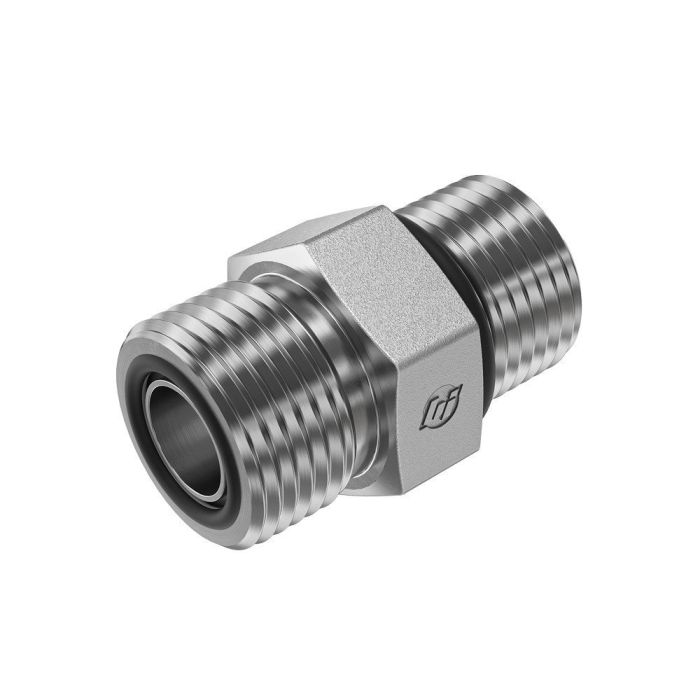

main product photo

Steel Adapter, 1-11/16-12 Male SAE O-Ring Face Seal To 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

Ask A Question

Description & Features

Designed for robust and reliable performance the Brennan Industries Inc steel adapter is engineered to facilitate connections between 1-11/16-12 male SAE O-ring face seals and 1-5/8-12 male SAE O-ring boss (straight thread O-ring). This adapter ensures precise coupling in industrial applications requiring stringent sealing integrity and durability.

Manufactured from high-quality steel this straight adapter provides exceptional resistance to wear and corrosion essential for maintaining system efficacy in demanding environments. The tube O.D. of 1.25 inches complements its heavy-duty design making it suitable for a variety of hydraulic and pneumatic systems.

The absence of thread sealant indicates that the connection relies on the precision-machined threads for leak-free operation emphasizing the importance of material quality and machining accuracy. Structured to meet the rigorous standards of industrial fitting applications this adapter upholds the performance and reliability synonymous with Brennan Industries Inc products.

MPN: FS6400-20-20-O

Supplier Part Number: FS6400-20-20-O

Specifications

Brand
BRENNAN
a Dimensions
2.06 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Male ORFS, Male SAE ORB
Connection Type 1
Male ORFS
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1453/J1926
Dimensions
2.058 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-7/8 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Series
FS6400-O Series
Thread Sealant
Without Thread Sealant
Thread Size
1-11/16-12, 1-5/8-12
Tube Outside Diameter
1-1/4 in

Similar Products

Model Number Tube O.D. Thread Size Thread 2 A c Dimensions Price Action
Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0810S Steel Male ORS To ORB Adapter

0.5

13/16-16 x 7/8-14

7/8-14

1.59

0.63 in

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1612S Steel Male ORS To ORB Adapter

1

1-7/16-12 x 1-1/16-12

1-1/16-12

2.14

0.73 in

Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1616S Steel Male ORS To ORB Adapter

1

1-7/16-12, 1-5/16-12

1-5/16-12

1.98

0.73 in

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0404S Steel Male ORS To ORB Adapter

0.25

9/16-18, 7/16-20

7/16-20

1.13

0.43 in

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0406S Steel Male ORS To ORB Adapter

0.25

9/16-18

9/16-18

1.2

0.47 in

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0604S Steel Male ORS To ORB Adapter

0.38

11/16-16 x 7/16-20

7/16-20

1.34

0.43 in

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 1/2-20 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0605S Steel Male ORS To ORB Adapter

0.38

11/16-16 x 1/2-20

1/2-20

1.22

0.43 in

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0606S Steel Male ORS To ORB Adapter

0.38

11/16-16, 9/16-18

9/16-18

1.26

0.47 in

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0608S Steel Male ORS To ORB Adapter

0.38

11/16-16 x 3/4-16

3/4-16

1.38

0.55 in

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0610S Steel Male ORS To ORB Adapter

0.38

11/16-16, 7/8-14

7/8-14

1.53

0.63 in

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0806S Steel Male ORS To ORB Adapter

0.5

13/16-16 x 9/16-18 x 13/16-16

9/16-18

1.48

0.47 in

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T0808S Steel Male ORS To ORB Adapter

0.5

13/16-16 x 3/4-16

3/4-16

1.44

0.55 in

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1010S Steel Male ORS To ORB Adapter

0.63

1-14 x 1-14 x 7/8-14

7/8-14

1.7

0.63 in

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1012S Steel Male ORS To ORB Adapter

0.63

1-14 x 1-1/16-12

1-1/16-12

1.86

0.73 in

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1852T1212S Steel Male ORS To ORB Adapter

0.75

1-3/16-12 x 1-1/16-12

1-1/16-12

1.92

0.73 in

Product Questions & Answers (1)

Question by: Vince T on Apr 12, 2025, 8:57 AM
What exactly is the difference between the two thread ends on this adapter, and which side hooks up to which fitting in my system?
Answer by: Customer Support on Apr 13, 2025, 11:29 AM
One end is a 1-11/16-12 male SAE O-ring face seal, and the other is a 1-5/8-12 male SAE O-ring boss, which is also called a straight thread O-ring. The face seal end seals against a flat surface using an O-ring on the face of the fitting. The O-ring boss end threads into a port and seals with an O-ring that sits in a groove behind the threads. Match each end to its corresponding port type in your system and you'll get a solid, leak-free connection without any thread sealant needed.
