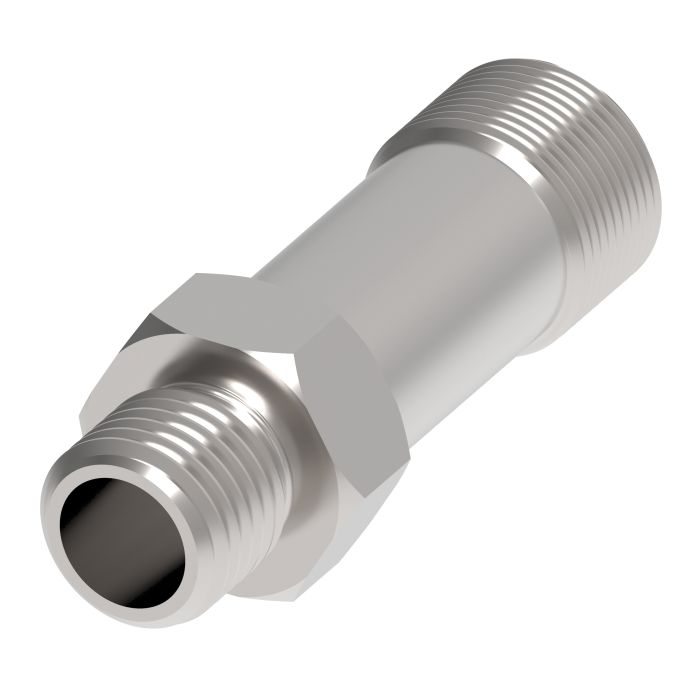

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), Long Straight

Ask A Question

Description & Features

This steel adapter features a 13/16-16 Male SAE O-Ring Face Seal to 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) connection. It is a long straight adapter suitable for applications in marine/military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling environments.

The adapter, with a catalog number of C1JA65, has a minimum working temperature of -40 degrees. End 1 has a male gender and ORS type with a 13/16-16 thread and a size of 0.8125. End 2 is also male, featuring a SAE ORB type with a 3/4-16 thread and a size of 0.75. The hex size 2 is 0.88. It falls under the product model label of O-Ring Face Seal To Straight Thread O-Ring Adapters.

SKU: FF1854T0808S

Supplier Part Number (MPN): FF1854T0808S

Alternate Part Numbers: C1JA65

Specifications

A
2.67
Alternate Part Numbers
Alternate Part Number C1JA65, Alternate Part Number MINO-00015X11505
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
C
0.55
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13556
End Size 1
0.81
End Size 2
0.75
End Type 1
ORS
End Type 2
SAE ORB
Hex Size 2
0.88
Minimum Working Temperature
-40
Supplier Part Number
FF1854T0808S
Thread 1
13/16-16
Thread 2
3/4-16
Thread Sealant
No
Tube O.D.
0.50
Tube O.D.
0.5
Product Weight
0.13 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A C Price Action
Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring), Long Straight

FF1854T0808S Steel Male ORS To ORB Long Adapter

0.5

13/16-16

3/4-16

2.67

0.55

Product Questions & Answers (2)

Question by: Kurt R on Dec 19, 2025, 10:48 AM
what industries is this adapter actually built for? got one going into a paper mill setup and want to make sure it ain't overkill or wrong fit
Answer by: Customer Support on Dec 21, 2025, 6:46 AM
Pulp and paper is one of the listed applications for this adapter, so you're right in line. It's also rated for marine and military use, chemical processing, food and beverage, and offshore drilling environments. That's a pretty demanding group, which tells you the build quality is meant to hold up where conditions get rough.
Question by: Warren W on Sep 12, 2025, 3:00 PM
Will this adapter hold up in a saltwater environment, like on a boat?
Answer by: Customer Support on Sep 14, 2025, 2:54 PM
This steel adapter is suitable for marine and military applications, so it should withstand saltwater exposure. It's also used in chemical processing, which suggests good corrosion resistance.
