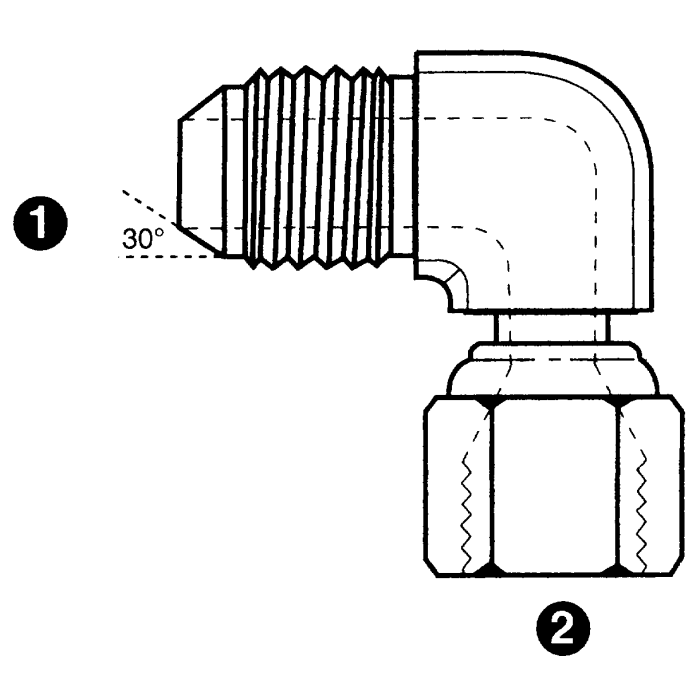

This steel adapter is engineered to meet JIS 30-degree flare specifications, featuring a 1/4-19 male to 1/4-19 female swivel connection at a 90-degree elbow. Precision crafted, it ensures reliable and leak-free performance in industrial applications.
Manufactured by Adaptall America, the adapter provides robust durability and optimal resistance to wear. Ideal for systems requiring secure and efficient fluid transfer, it supports various high-pressure environments.
Designed for easy installation and maintenance, this adapter is essential for systems demanding high performance and reliability. The 1/4-19 thread size accommodates seamless integration into existing setups, ensuring compatibility and operational integrity.
MPN: 9292-04-04
Supplier Part Number: 9292-04-04
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1HE30, Alternate Part Number MI-03358386, Alternate Part Number MINO-03671X20001
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
9292-04-04
Thread 1
1/4-19
Thread 2
1/4-19
Thread Sealant
No
Product Weight
0.15 lbs
Similar Products
Model Number
Thread 1
Thread 2
Price
Action
9292-04-04Steel Male To Female JIS 90 Elbow
1/4-19
1/4-19
9292-06-06Steel Male To Female JIS 90 Elbow
3/8-19
3/8-19
9292-12-12Steel Male To Female JIS 90 Elbow
3/4-14
3/4-14
Product Questions & Answers (3)
Question by: Patty E on Sep 2, 2025, 10:51 AM
Will this fitting hold up okay in a hydraulic system running around 2000 PSI?
Answer by: Customer Support on Sep 3, 2025, 5:40 PM
This steel adapter is designed for robust durability and optimal resistance to wear, so it should handle 2000 PSI without any problems. It's built for high-pressure environments and is commonly used in systems requiring secure and efficient fluid transfer.
Question by: Kurt A on Nov 30, 2025, 9:16 AM
trying to swap out a bent fitting on my line, is this one the kind that goes 1/4-19 male JIS 30 flare over to a 1/4-19 female JIS swivel, 90 degree?
Answer by: Customer Support on Dec 1, 2025, 4:48 PM
Match it up by the ends and the angle. This adapter is a 90 degree elbow with a 1/4-19 male JIS 30 degree flare on one side and a 1/4-19 female JIS 30 degree flare swivel on the other, so it fits that exact male to female JIS flare swivel setup.
Question by: Roger F on Sep 2, 2025, 6:38 PM
Does the swivel on the female end actually rotate freely once it's installed, or does it lock down when you tighten everything up?
Answer by: Customer Support on Sep 4, 2025, 6:16 AM
The female end on this fitting is a swivel, so it stays rotatable even after the connection is made. That's the whole point of the swivel design. It lets you align the hose or line without fighting the fitting during installation, which saves a lot of grief in tight spaces where you can't easily spin the whole assembly.
