Steel Adapter, 3/4-14 Male JIS 30 deg Flare To 3/4-14 Female JIS 30 deg Flare Swivel, 90 deg Elbow

Description & Features

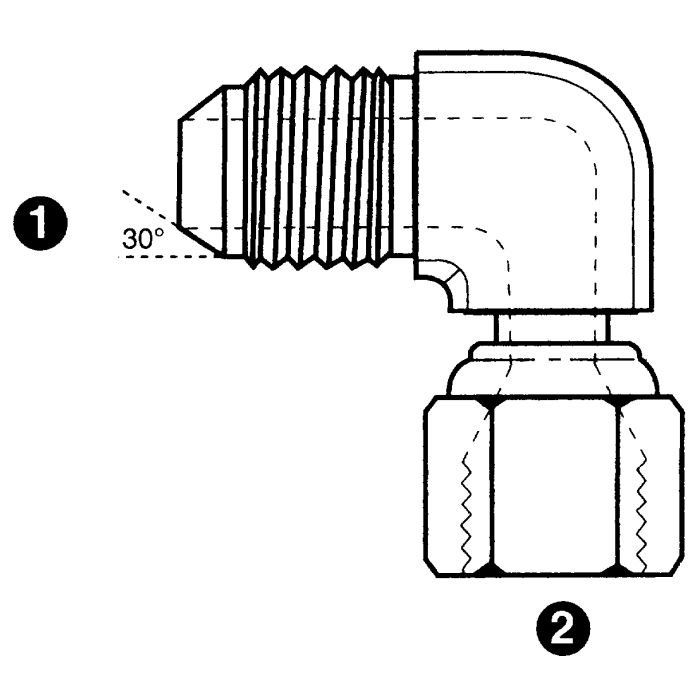

Designed for tight-space routing in hydraulic circuits, the Steel Adapter, 3/4-14 Male JIS 30 deg Flare To 3/4-14 Female JIS 30 deg Flare Swivel, 90 deg Elbow connects same-size JIS 30-degree flare fittings at a right angle, with the female end featuring a swivel for easier alignment during installation. Both threads are 3/4-14, conforming to JIS specifications, making this adapter well-suited for equipment and machinery that uses JIS-standard hydraulic connections.

Constructed from steel, this 90-degree elbow adapter is part of Adaptall's JIS adapter line and is built for use in industrial hydraulic systems where directional changes are required without compromising line integrity. The swivel on the female side reduces torque stress on connected hoses or tubing during assembly.

SKU: 9292-12-12

Supplier Part Number (MPN): 9292-12-12

Alternate Part Numbers: C1HE32

Specifications

Brand
adapt-all
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female JIS, Male JIS
Connection Type 1
Male JIS
Connection Type 2
Female JIS
Dimension Standards
JIS B 0202
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
9292 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-14
