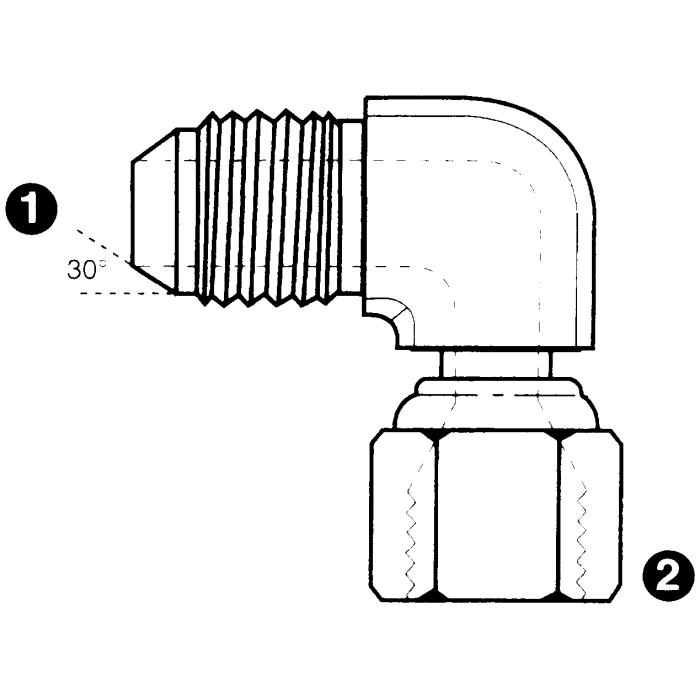

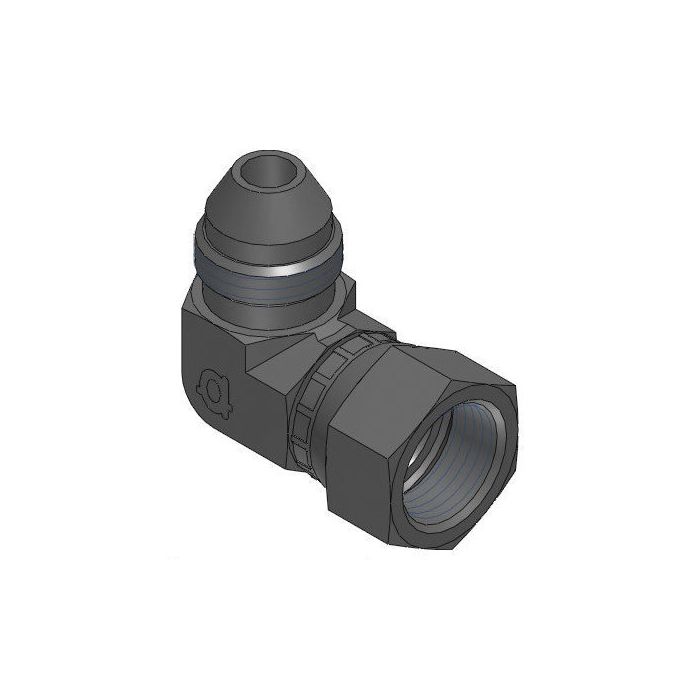

Steel Adapter, M18 x 1.5 Male Komatsu To M18 x 1.5 Female Komatsu, 90 deg Elbow

Ask A Question

Description & Features

Designed for hydraulic systems requiring a directional change at the connection point, this Adaptall steel adapter provides a 90-degree elbow configuration with M18 x 1.5 Male Komatsu inlet and M18 x 1.5 Female Komatsu outlet threads. The matching thread sizes on both ends make it well suited for same-size connections where a right-angle routing solution is needed.

The Steel Adapter, M18 x 1.5 Male Komatsu To M18 x 1.5 Female Komatsu, 90 deg Elbow is part of Adaptall's Komatsu and Kobelco fittings line, built to interface with hydraulic equipment using Komatsu-style porting. Steel construction supports the mechanical demands typical of heavy equipment and industrial hydraulic applications. This fitting is cataloged under Adaptall catalog number C1GH79.

SKU: 9392-18-18

Supplier Part Number (MPN): 9392-18-18

Alternate Part Numbers: C1GH79, MI-07055655, MINO-03671X79749

Specifications

Brand
adapt-all
Connection Size 1
18 mm
Connection Size 2
18 mm
Connection Type
Female Komatsu, Male Komatsu
Connection Type 1
Male Komatsu
Connection Type 2
Female Komatsu
Dimension Standards
ISO 261
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
19 x 22 mm
Material
Steel
Material Construction
Carbon Steel
Series
9392 Series
Thread Sealant
Without Thread Sealant
Thread Size
M18x1.5

Similar Products

Model Number Thread Size Thread 2 Price Action
Steel Adapter, M14 x 1.5 Male Komatsu To M14 x 1.5 Female Komatsu, 90 deg Elbow

9392-14-14 Steel Male To Female Komatsu 90 Elbow

M14x1.5

M14 x 1.5

Steel Adapter, M 22 x 1.5 Male Komatsu To M 22 x 1.5 Female Komatsu, 90 deg Elbow

9392-22-22 Steel Male To Female Komatsu 90 Elbow

M22x1.5

M 22 x 1.5

Steel Adapter, M 30 x 1.5 Male Komatsu To M 30 x 1.5 Female Komatsu, 90 deg Elbow

9392-30-30 Steel Male To Female Komatsu 90 Elbow

M30x1.5

M 30 x 1.5

Product Questions & Answers (1)

Question by: Bonnie W on Mar 25, 2026, 5:40 PM
Will this fitting hold up okay in a hydraulic system on farm equipment?
Answer by: Customer Support on Mar 27, 2026, 6:33 AM
Steel construction supports the mechanical demands typical of heavy equipment and industrial hydraulic applications, so it should be suitable for farm equipment.
