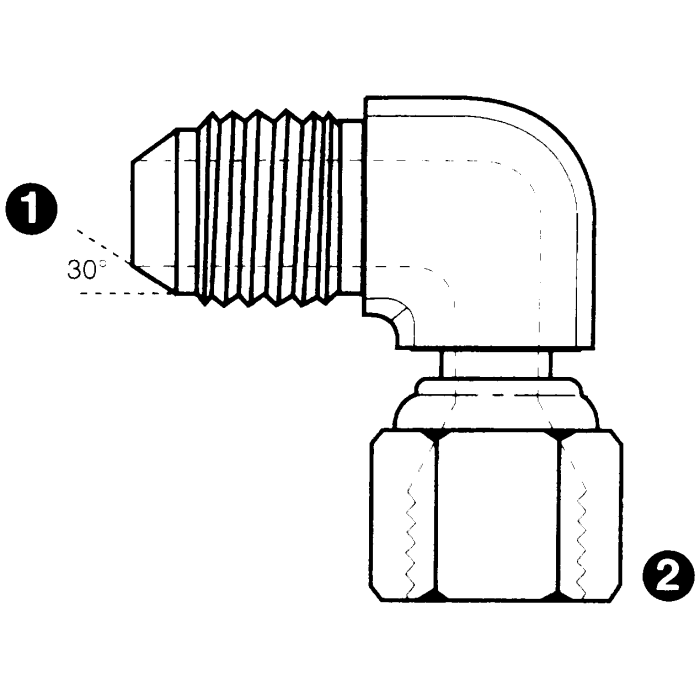

Steel Adapter, M 22 x 1.5 Male Komatsu To M 22 x 1.5 Female Komatsu, 90 deg Elbow

Description & Features

This Adaptall steel adapter features a M 22 x 1.5 male Komatsu thread to M 22 x 1.5 female Komatsu thread, configured in a 90-degree elbow.

This Steel Adapter, M 22 x 1.5 Male Komatsu To M 22 x 1.5 Female Komatsu, 90 deg Elbow is suitable for Komatsu and Kobelco fitting applications.

SKU: 9392-22-22

Supplier Part Number (MPN): 9392-22-22

Alternate Part Numbers: C1FN31

Specifications

Alternate Part Numbers Alternate Part Number C1FN31	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9392-22-22	Thread 1 M 22 x 1.5	Thread 2 M 22 x 1.5	Thread Sealant No	Product Weight 0.35 lbs

Similar Products

Model Number	Thread 1	Thread 2
9392-14-14 Steel Male To Female Komatsu 90 Elbow	M14 x 1.5	M14 x 1.5
9392-18-18 Steel Male To Female Komatsu 90 Elbow	M18 x 1.5	M18 x 1.5
9392-22-22 Steel Male To Female Komatsu 90 Elbow	M 22 x 1.5	M 22 x 1.5
9392-30-30 Steel Male To Female Komatsu 90 Elbow	M 30 x 1.5	M 30 x 1.5

Product Questions & Answers (2)

Question by: Norm G on Sep 21, 2025, 6:35 PM

Got a Komatsu machine and need to reroute a hydraulic line that's in a real tight spot. Would this elbow adapter work for that kind of situation?

Answer by: Customer Support on Sep 23, 2025, 2:18 PM

Tight routing situations are exactly where a 90-degree elbow adapter earns its keep. This one connects M 22 x 1.5 Komatsu male to M 22 x 1.5 Komatsu female threads, so it lets you make a right-angle turn in the line without fabricating anything custom. As long as both ends of your connection are Komatsu-spec fittings at that thread size, it should drop right into the setup you're working with.

Question by: Marvin M on Dec 2, 2025, 6:58 AM

Will this fitting work on my Komatsu excavator?

Answer by: Customer Support on Dec 3, 2025, 11:04 AM

This steel adapter is designed for Komatsu and Kobelco fitting applications, so it should be compatible.
