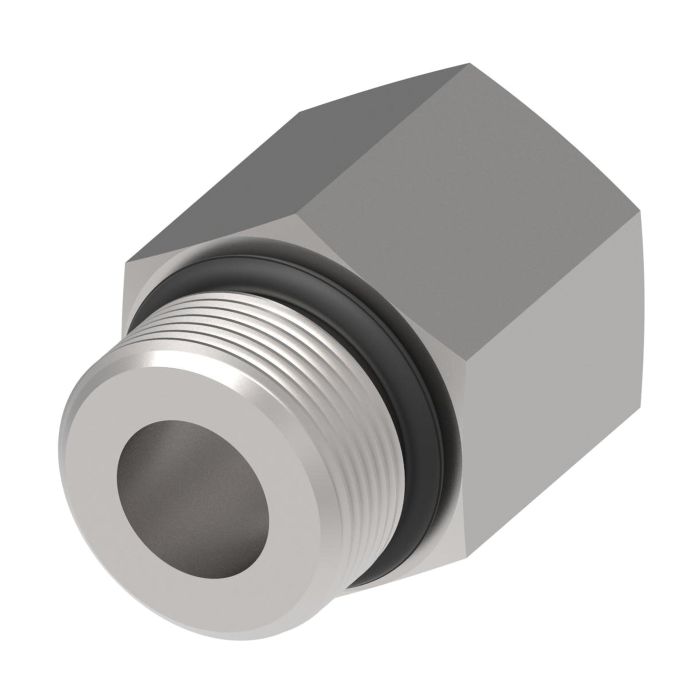

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

Ask A Question

Description & Features

This Eaton Aeroquip steel adapter facilitates connections between SAE O-ring boss ports. It adapts a 7/8-14 male SAE O-ring boss to a 3/4-16 female SAE O-ring boss in a straight configuration.

Ideal for diverse applications, this steel adapter is suitable for marine and military environments, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling.

SKU: FF1010-1008S

Supplier Part Number (MPN): FF1010-1008S

Alternate Part Numbers: C1CU58, MI-00303287, MINO-00015F52129

Specifications

A
1.25
Alternate Part Numbers
Alternate Part Number C1CU58, Alternate Part Number MI-00303287, Alternate Part Number MINO-00015F52129
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.88
End Size 2
0.75
End Type 1
SAE ORB
End Type 2
SAE ORB
Minimum Working Temperature
-40
Seal Part if Included
22617-10
Supplier Part Number
FF1010-1008S
Thread 1
7/8-14
Thread 2
3/4-16
Thread Sealant
No
Tube I.D. 1
0.48
Product Weight
0.14 lbs

Related Documents

Similar Products

Model Number Thread 1 Thread 2 A Price Action
Steel Adapter, 1-7/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-24-12-O Steel Male To Female ORB Adapter

1-7/8-12

1-1/16-12

1

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1006S Steel Male To Female ORB Adapter

7/8-14

9/16-18

0.81

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1008S Steel Male To Female ORB Adapter

7/8-14

3/4-16

1.25

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1208S Steel Male To Female ORB Adapter

1-1/16-12

3/4-16

1

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1612S Steel Male To Female ORB Adapter

1-5/16-12

1-1/16-12

1.59

Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-04-06-O Steel Male To Female ORB Adapter

7/16-20

9/16-18

1.16

Steel Adapter, 1/2-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-05-04-O Steel Male To Female ORB Adapter

1/2-20

7/16-20

1.22

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-06-04-O Steel Male To Female ORB Adapter

9/16-18

7/16-20

1.03

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-06-08-O Steel Male To Female ORB Adapter

9/16-18

3/4-16

1.39

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-08-04-O Steel Male To Female ORB Adapter

3/4-16

7/16-20

0.81

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-08-08-O Steel Male To Female ORB Adapter

3/4-16

3/4-16

1.39

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-08-10-O Steel Male To Female ORB Adapter

3/4-16

7/8-14

1.48

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-10-12-O Steel Male To Female ORB Adapter

7/8-14

1-1/16-12

1.66

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-12-04-O Steel Male To Female ORB Adapter

1-1/16-12

7/16-20

1.09

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-16-06-O Steel Male To Female ORB Adapter

1-5/16-12

9/16-18

1.13

Steel Adapter, 1-7/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/8-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-24-20-O Steel Male To Female ORB Adapter

1-7/8-12

1-5/8-12

1.58

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-0806S Steel Male To Female ORB Adapter

3/4-16

9/16-18

1.06

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1206S Steel Male To Female ORB Adapter

1-1/16-12

9/16-18

1

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1210S Steel Male To Female ORB Adapter

1-1/16-12

7/8-14

1.44

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1216S Steel Male To Female ORB Adapter

1-1/16-12

1-5/16-12

1.79

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1608S Steel Male To Female ORB Adapter

1-5/16-12

3/4-16

1

Steel Adapter, 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-2016S Steel Male To Female ORB Adapter

1-5/8-12

1-5/16-12

1

Product Questions & Answers (4)

Question by: Hubert E on Jul 30, 2025, 8:45 AM
got a port on my hydraulic block that's 7/8-14 ORB and I need to run a 3/4-16 line off it. this adapter gonna bridge that gap straight up?
Answer by: Customer Support on Jul 31, 2025, 9:46 PM
That's what this one's built for. The male end threads into your 7/8-14 ORB port and the female side accepts a 3/4-16 ORB fitting, so you're reducing from the larger port down to the smaller line connection in one straight piece. Both ends use O-ring face sealing on the straight thread, so you get a clean, leak-resistant joint without pipe tape or sealant. It's a direct bolt-in reducer for that exact size combination.
Question by: Danny M on Apr 4, 2025, 9:49 AM
Will this adapter hold up in a marine environment?
Answer by: Customer Support on Apr 6, 2025, 6:55 AM
Its application list includes marine environments, so it should be suitable for that purpose.
Question by: Dale J on Apr 14, 2025, 8:59 AM
got a hose end thats 7/8-14 ORB male, will this adapter step it down to a 3/4-16 ORB female port?
Answer by: Customer Support on Apr 16, 2025, 6:55 AM
For connecting straight thread O-ring boss ends, it converts a 7/8-14 male SAE ORB on one side to a 3/4-16 female SAE ORB on the other, in a straight reducer style.
Question by: Lynn F on May 27, 2025, 11:03 AM
Will this adapter work for connecting a 7/8-14 male fitting to a 3/4-16 female fitting? Both are SAE O-ring boss type.
Answer by: Customer Support on May 29, 2025, 8:30 AM
That's what this adapter is for. It's made to connect a 7/8-14 male SAE O-ring boss fitting to a 3/4-16 female SAE O-ring boss fitting.
