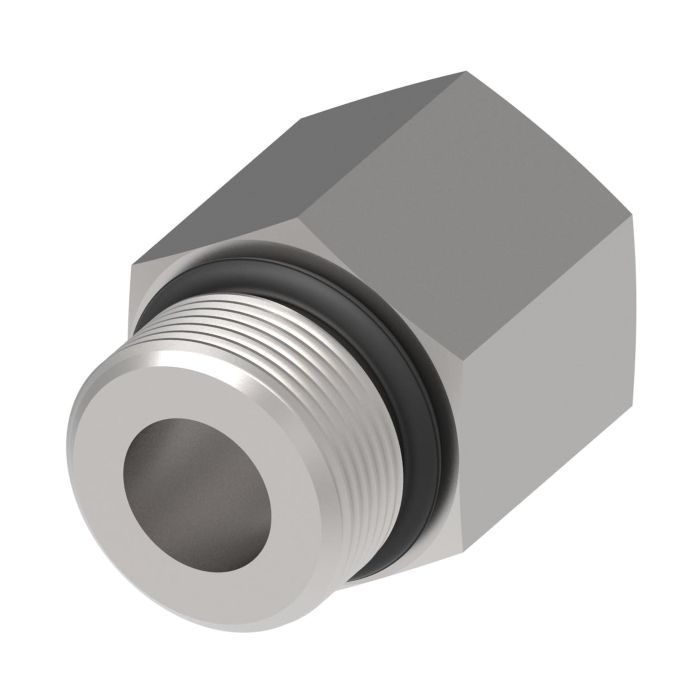

main product photo

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

Ask A Question

Description & Features

Part of the Eaton Aeroquip FF1010 Series, this straight steel reducer adapter connects a 1-1/16-12 Male SAE O-Ring Boss port to a 7/8-14 Female SAE O-Ring Boss port in a single inline configuration. The straight thread O-ring design on both ends provides reliable, leak-resistant sealing without the need for pipe thread sealants.

The Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight is suited for demanding fluid handling environments including marine and military systems, chemical processing, pulp and paper, food and beverage processing, and offshore drilling applications. Dimension A measures 1.44 inches.

SKU: FF1010-1210S

Supplier Part Number (MPN): FF1010-1210S

Alternate Part Numbers: C1HX78, MI-00298801, MINO-00015F47233

Specifications

A
1.44
Alternate Part Numbers
Alternate Part Number C1HX78, Alternate Part Number MI-00298801, Alternate Part Number MINO-00015F47233, Alternate Part Number MINO-00925X12860
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 2
0.88
End Type 1
SAE ORB
End Type 2
SAE ORB
Minimum Working Temperature
-40
Seal Part if Included
22617-12
Supplier Part Number
FF1010-1210S
Thread 1
1-1/16-12
Thread 2
7/8-14
Thread Sealant
No
Tube I.D. 1
0.61
Product Weight
0.26 lbs

Related Documents

Similar Products

Model Number Thread 1 Thread 2 A Price Action
Steel Adapter, 1-7/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-24-12-O Steel Male To Female ORB Adapter

1-7/8-12

1-1/16-12

1

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1006S Steel Male To Female ORB Adapter

7/8-14

9/16-18

0.81

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1008S Steel Male To Female ORB Adapter

7/8-14

3/4-16

1.25

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1208S Steel Male To Female ORB Adapter

1-1/16-12

3/4-16

1

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1612S Steel Male To Female ORB Adapter

1-5/16-12

1-1/16-12

1.59

Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-04-06-O Steel Male To Female ORB Adapter

7/16-20

9/16-18

1.16

Steel Adapter, 1/2-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-05-04-O Steel Male To Female ORB Adapter

1/2-20

7/16-20

1.22

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-06-04-O Steel Male To Female ORB Adapter

9/16-18

7/16-20

1.03

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-06-08-O Steel Male To Female ORB Adapter

9/16-18

3/4-16

1.39

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-08-04-O Steel Male To Female ORB Adapter

3/4-16

7/16-20

0.81

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-08-08-O Steel Male To Female ORB Adapter

3/4-16

3/4-16

1.39

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-08-10-O Steel Male To Female ORB Adapter

3/4-16

7/8-14

1.48

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-10-12-O Steel Male To Female ORB Adapter

7/8-14

1-1/16-12

1.66

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-12-04-O Steel Male To Female ORB Adapter

1-1/16-12

7/16-20

1.09

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-16-06-O Steel Male To Female ORB Adapter

1-5/16-12

9/16-18

1.13

Steel Adapter, 1-7/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/8-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-24-20-O Steel Male To Female ORB Adapter

1-7/8-12

1-5/8-12

1.58

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-0806S Steel Male To Female ORB Adapter

3/4-16

9/16-18

1.06

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1206S Steel Male To Female ORB Adapter

1-1/16-12

9/16-18

1

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1210S Steel Male To Female ORB Adapter

1-1/16-12

7/8-14

1.44

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1216S Steel Male To Female ORB Adapter

1-1/16-12

1-5/16-12

1.79

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1608S Steel Male To Female ORB Adapter

1-5/16-12

3/4-16

1

Steel Adapter, 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-2016S Steel Male To Female ORB Adapter

1-5/8-12

1-5/16-12

1

Product Questions & Answers (1)

Question by: Terry B on Oct 26, 2025, 6:35 AM
Got a port on my pump housing that's 1-1/16-12 ORB and I need to step it down to hook up a 7/8-14 ORB line, this the right piece for that?
Answer by: Customer Support on Oct 27, 2025, 7:01 PM
That's what this adapter is built for. The male end threads into your 1-1/16-12 SAE O-Ring Boss port, and the female end accepts a 7/8-14 SAE O-Ring Boss fitting. Both connections use straight thread with an O-ring seal, so you won't need any thread tape or sealant paste to get a solid, leak-resistant joint. It runs straight through inline at 1.44 inches long, so there's no angle to account for when you're routing your line.
