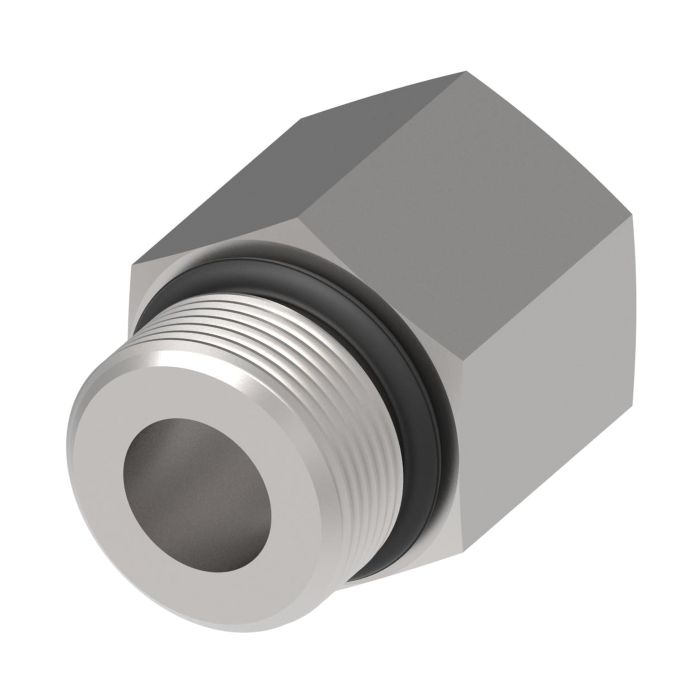

main product photo

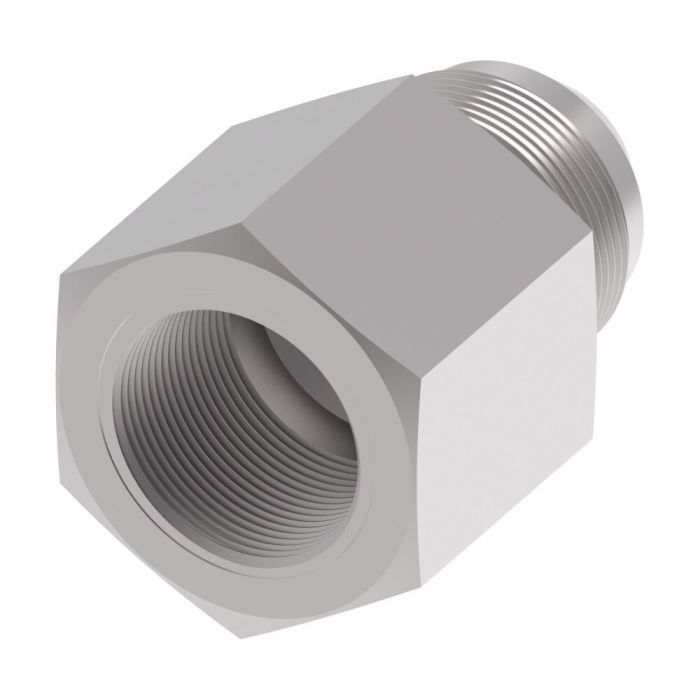

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

Ask A Question

Description & Features

Designed for reducing connections in demanding hydraulic systems, the Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight is a straight-configuration reducer adapter from Eaton Aeroquip's FF1010 Series. It transitions from a larger 1-5/16-12 male SAE O-Ring Boss port to a smaller 1-1/16-12 female SAE O-Ring Boss port, with an overall dimension of 1.59 inches at the A measurement.

Suited for a broad range of industrial environments, this adapter is commonly used in marine and military applications, chemical processing, pulp and paper facilities, food and beverage processing, and offshore drilling. The straight thread O-ring boss configuration on both ends provides a reliable, leak-resistant seal without the need for thread sealants. Steel construction ensures durability under the pressure and environmental conditions typical of these industries.

SKU: FF1010-1612S

Supplier Part Number (MPN): FF1010-1612S

Alternate Part Numbers: C1EQ30, MI-00298804, MINO-00015F47236

Specifications

A
1.59
Alternate Part Numbers
Alternate Part Number C1EQ30, Alternate Part Number MI-00298804, Alternate Part Number MINO-00015F47236, Alternate Part Number MINO-00925X12863
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Type 1
SAE ORB
End Type 2
SAE ORB
Minimum Working Temperature
-40
Seal Part if Included
22617-16
Supplier Part Number
FF1010-1612S
Thread 1
1-5/16-12
Thread 2
1-1/16-12
Thread Sealant
No
Tube I.D. 1
0.84
Product Weight
0.35 lbs

Related Documents

Similar Products

Model Number Thread 1 Thread 2 A Price Action
Steel Adapter, 1-7/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-24-12-O Steel Male To Female ORB Adapter

1-7/8-12

1-1/16-12

1

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1006S Steel Male To Female ORB Adapter

7/8-14

9/16-18

0.81

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1008S Steel Male To Female ORB Adapter

7/8-14

3/4-16

1.25

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1208S Steel Male To Female ORB Adapter

1-1/16-12

3/4-16

1

Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-04-06-O Steel Male To Female ORB Adapter

7/16-20

9/16-18

1.16

Steel Adapter, 1/2-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-05-04-O Steel Male To Female ORB Adapter

1/2-20

7/16-20

1.22

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-06-04-O Steel Male To Female ORB Adapter

9/16-18

7/16-20

1.03

Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-06-08-O Steel Male To Female ORB Adapter

9/16-18

3/4-16

1.39

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-08-04-O Steel Male To Female ORB Adapter

3/4-16

7/16-20

0.81

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-08-08-O Steel Male To Female ORB Adapter

3/4-16

3/4-16

1.39

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-08-10-O Steel Male To Female ORB Adapter

3/4-16

7/8-14

1.48

Steel Adapter, 7/8-14 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-10-12-O Steel Male To Female ORB Adapter

7/8-14

1-1/16-12

1.66

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-12-04-O Steel Male To Female ORB Adapter

1-1/16-12

7/16-20

1.09

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-16-06-O Steel Male To Female ORB Adapter

1-5/16-12

9/16-18

1.13

Steel Adapter, 1-7/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/8-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

6410-24-20-O Steel Male To Female ORB Adapter

1-7/8-12

1-5/8-12

1.58

Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-0806S Steel Male To Female ORB Adapter

3/4-16

9/16-18

1.06

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1206S Steel Male To Female ORB Adapter

1-1/16-12

9/16-18

1

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/8-14 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1210S Steel Male To Female ORB Adapter

1-1/16-12

7/8-14

1.44

Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1216S Steel Male To Female ORB Adapter

1-1/16-12

1-5/16-12

1.79

Steel Adapter, 1-5/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-1608S Steel Male To Female ORB Adapter

1-5/16-12

3/4-16

1

Steel Adapter, 1-5/8-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-5/16-12 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

FF1010-2016S Steel Male To Female ORB Adapter

1-5/8-12

1-5/16-12

1

Product Questions & Answers (3)

Question by: Danny W on Sep 21, 2025, 12:29 PM
got a 1-5/16-12 ORB port on my hydraulic block and need to step down to a 1-1/16-12 female connection. this the right part for that?
Answer by: Customer Support on Sep 22, 2025, 2:22 PM
That's exactly what this adapter is built for. The male end threads into your 1-5/16-12 SAE O-Ring Boss port, and the female end accepts a 1-1/16-12 SAE ORB fitting on the other side. Both connections use straight thread with O-ring sealing, so you get a clean, leak-resistant reducer in one piece without stacking multiple fittings.
Question by: Jimmy Y on Feb 20, 2026, 11:02 AM
Will this adapter work with standard SAE O-ring fittings?
Answer by: Customer Support on Feb 22, 2026, 6:46 AM
Yes, this adapter is designed to connect two SAE O-ring boss (ORB) fittings, a 1-5/16-12 male and a 1-1/16-12 female.
Question by: Steve S on Jun 22, 2025, 12:56 PM
Just want to make sure, this'll fit a standard 1-5/16-12 SAE O-ring port, right?
Answer by: Customer Support on Jun 23, 2025, 3:07 PM
That's correct. This adapter is designed to connect to a 1-5/16-12 male SAE O-ring boss port.
