Steel Adapters, Male SAE O-Ring Boss (Straight Thread O-Ring) To Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

Description & Features

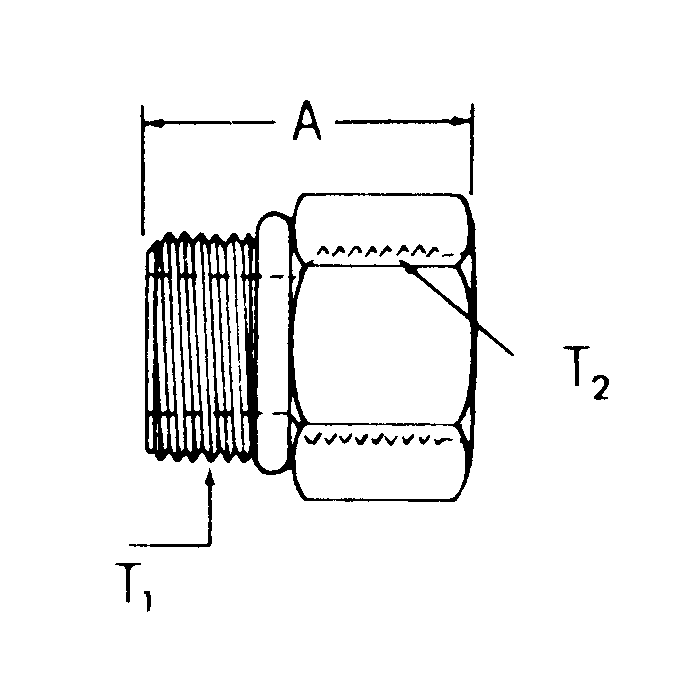

Model Number	Thread 1	Thread 2	A
6410-24-12-O Steel Male To Female ORB Adapter	1-7/8-12	1-1/16-12	1
FF1010-1006S Steel Male To Female ORB Adapter	7/8-14	9/16-18	0.81
FF1010-1008S Steel Male To Female ORB Adapter	7/8-14	3/4-16	1.25
FF1010-1208S Steel Male To Female ORB Adapter	1-1/16-12	3/4-16	1
FF1010-1612S Steel Male To Female ORB Adapter	1-5/16-12	1-1/16-12	1.59
6410-04-06-O Steel Male To Female ORB Adapter	7/16-20	9/16-18	1.16
6410-05-04-O Steel Male To Female ORB Adapter	1/2-20	7/16-20	1.22
6410-06-04-O Steel Male To Female ORB Adapter	9/16-18	7/16-20	1.03
6410-06-08-O Steel Male To Female ORB Adapter	9/16-18	3/4-16	1.39
6410-08-04-O Steel Male To Female ORB Adapter	3/4-16	7/16-20	0.81
6410-08-08-O Steel Male To Female ORB Adapter	3/4-16	3/4-16	1.39
6410-08-10-O Steel Male To Female ORB Adapter	3/4-16	7/8-14	1.48
6410-10-12-O Steel Male To Female ORB Adapter	7/8-14	1-1/16-12	1.66
6410-12-04-O Steel Male To Female ORB Adapter	1-1/16-12	7/16-20	1.09
6410-16-06-O Steel Male To Female ORB Adapter	1-5/16-12	9/16-18	1.13
6410-24-20-O Steel Male To Female ORB Adapter	1-7/8-12	1-5/8-12	1.58
FF1010-0806S Steel Male To Female ORB Adapter	3/4-16	9/16-18	1.06
FF1010-1206S Steel Male To Female ORB Adapter	1-1/16-12	9/16-18	1
FF1010-1210S Steel Male To Female ORB Adapter	1-1/16-12	7/8-14	1.44
FF1010-1216S Steel Male To Female ORB Adapter	1-1/16-12	1-5/16-12	1.79
FF1010-1608S Steel Male To Female ORB Adapter	1-5/16-12	3/4-16	1
FF1010-2016S Steel Male To Female ORB Adapter	1-5/8-12	1-5/16-12	1
