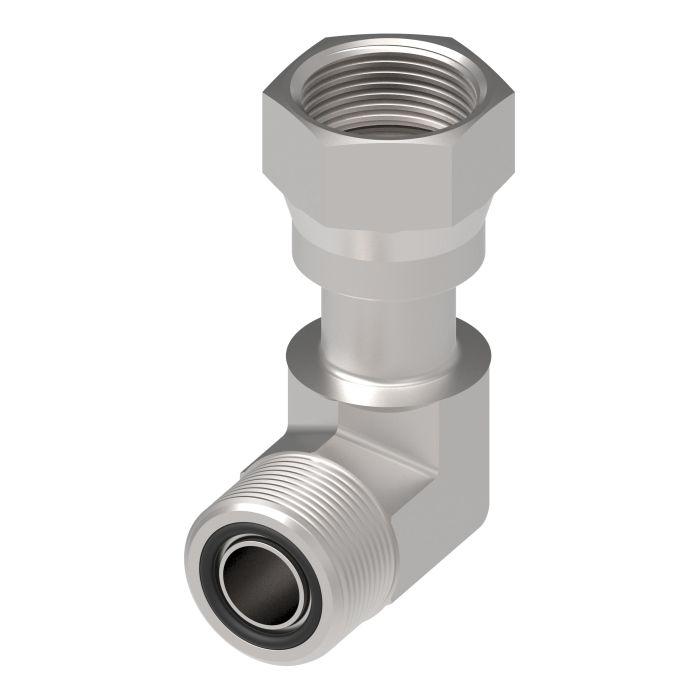

main product photo

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-14 Female SAE O-Ring Face Seal, 90 deg Elbow

Ask A Question

Description & Features

Manufactured by Danfoss Power Solutions (Aeroquip), this 90-degree elbow adapter is built for hydraulic systems requiring a reliable male-to-female O-ring face seal connection in tight or angled routing configurations. Constructed from steel, it features 1-14 threads on both ends and uses the ORS (O-Ring Face Seal) standard on each connection point for a leak-resistant seal under pressure.

The Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-14 Female SAE O-Ring Face Seal, 90 deg Elbow is rated for a minimum working temperature of -65°F, making it suitable for demanding environments including marine, military, offshore drilling, chemical processing, pulp and paper, and food and beverage processing applications. The included seal part number is FF9446-16, and the hex size on end two measures 1.12 inches. Drop dimension is 1.62 inches with a tube O.D. of 0.63 inches.

SKU: FF2098T1010S

Supplier Part Number (MPN): FF2098T1010S

Alternate Part Numbers: C1HX81, MI-04895431, MINO-00015X51294

Specifications

A
1.31
Alternate Part Numbers
Alternate Part Number C1HX81, Alternate Part Number MI-04895431, Alternate Part Number MINO-00015X51294
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
B
1.62
Drop Dimension
1.62
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
1
End Size 2
1
End Type 1
ORS
End Type 2
ORS
Hex Size 2
1.12
Minimum Working Temperature
-65
Seal Part if Included
FF9446-16
Supplier Part Number
FF2098T1010S
Thread 1
1-14
Thread 2
1-14
Thread Sealant
No
Tube O.D.
0.63
Tube O.D.
0.63
Product Weight
0.54 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A B Price Action
Steel Adapter, 1-7/16-12 Male SAE O-Ring Face Seal To 1-7/16-12 Female SAE O-Ring Face Seal, 90 deg Elbow

FF2098T1616S Steel Male To Female ORS 90 Elbow

1

1-7/16-12

1-7/16-12

1.64

2.1

Steel Adapter, 9/16-18 Male SAE O-Ring Face Seal To 9/16-18 Female SAE O-Ring Face Seal, 90 deg Elbow

FF2098T0404S Steel Male To Female ORS 90 Elbow

0.25

9/16-18

9/16-18

0.85

1.04

Steel Adapter, 11/16-16 Male SAE O-Ring Face Seal To 11/16-16 Female SAE O-Ring Face Seal, 90 deg Elbow

FF2098T0606S Steel Male To Female ORS 90 Elbow

0.38

11/16-16

11/16-16

0.98

1.15

Steel Adapter, 13/16-16 Male SAE O-Ring Face Seal To 13/16-16 Female SAE O-Ring Face Seal, 90 deg Elbow

FF2098T0808S Steel Male To Female ORS 90 Elbow

0.5

13/16-16

13/16-16

1.1

1.49

Steel Adapter, 1-14 Male SAE O-Ring Face Seal To 1-14 Female SAE O-Ring Face Seal, 90 deg Elbow

FF2098T1010S Steel Male To Female ORS 90 Elbow

0.63

1-14

1-14

1.31

1.62

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-3/16-12 Female SAE O-Ring Face Seal, 90 deg Elbow

FF2098T1212S Steel Male To Female ORS 90 Elbow

0.75

1-3/16-12

1-3/16-12

1.47

1.82

Product Questions & Answers (1)

Question by: Floyd P on Mar 3, 2026, 3:47 PM
trying to swap out an elbow on a line, is this one ORS on both sides with 1-14 threads?
Answer by: Customer Support on Mar 5, 2026, 12:44 PM
For an ORS to ORS elbow connection, this adapter matches 1-14 male SAE O-ring face seal on one end and 1-14 female SAE O-ring face seal on the other, in a 90 degree elbow.
