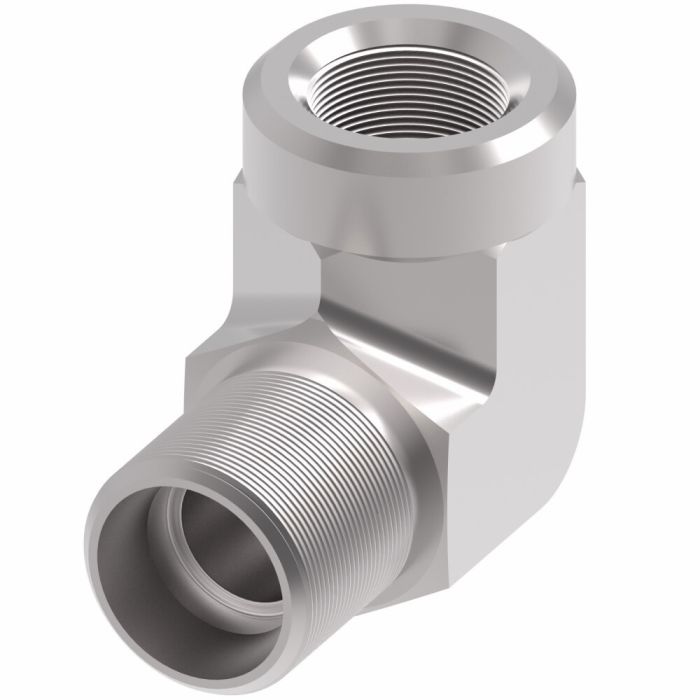

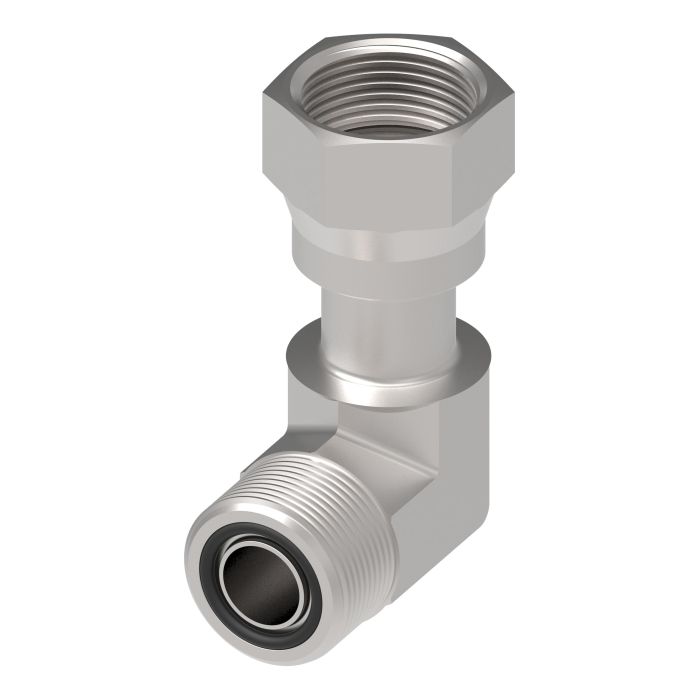

Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-3/16-12 Female SAE O-Ring Face Seal, 90 deg Elbow

Description & Features

Manufactured from steel, this 90-degree elbow adapter connects 1-3/16-12 Male SAE O-Ring Face Seal to 1-3/16-12 Female SAE O-Ring Face Seal ports, providing a reliable right-angle transition in high-pressure hydraulic circuits. The O-Ring Face Seal configuration on both ends delivers leak-resistant performance suited to demanding fluid system environments.

Part of the Eaton Aeroquip FF2098T Series, this adapter is well-suited for use across marine and military, chemical processing, pulp and paper, food and beverage processing, and off-shore drilling applications. Dimensions A and B measure 1.47 and 1.82 respectively, making it a practical fit where compact routing is required at a 90-degree angle.

The Steel Adapter, 1-3/16-12 Male SAE O-Ring Face Seal To 1-3/16-12 Female SAE O-Ring Face Seal, 90 deg Elbow is also referenced under catalog number C1CV17.

SKU: FF2098T1212S

Supplier Part Number (MPN): FF2098T1212S

Alternate Part Numbers: C1CV17, MI-02030373, MINO-00015J26311

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 1.47 in	b Dimensions 1.82 in	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Female ORFS, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 Female ORFS	Dimension Standards SAE 520221/J1453	Drop Dimensions 1.82 in	Finish Dura-Kote™	Fitting Type 90 deg Elbow	Hex Size 1.37	Material Steel	Material Construction Carbon Steel	Operating Temperature -40 to 250 deg F	Seal Material NBR	Series FF2098T Series	Thread Size 1-3/16-12

Similar Products

Model Number	Tube O.D.	Thread Size	Thread 2	a Dimensions	b Dimensions
FF2098T1616S Steel Male To Female ORS 90 Elbow	1	1-7/16-12	1-7/16-12	1.64 in	2.1 in
FF2098T0404S Steel Male To Female ORS 90 Elbow	0.25	9/16-18	9/16-18	0.85 in	1.04 in
FF2098T0606S Steel Male To Female ORS 90 Elbow	0.38	11/16-16	11/16-16	0.98 in	1.15 in
FF2098T0808S Steel Male To Female ORS 90 Elbow	0.5	13/16-16	13/16-16	1.1 in	1.49 in
FF2098T1010S Steel Male To Female ORS 90 Elbow	0.63	1-14S	1-14	1.31 in	1.62 in

Product Questions & Answers (2)

Question by: Gene E on Jun 15, 2025, 9:07 PM

Hey, will this elbow fitting hold up okay in a food processing plant environment? Figured all the washdown chemicals might be tough on it.

Answer by: Customer Support on Jun 17, 2025, 4:01 PM

It's designed for use in food and beverage processing, so it should handle typical washdown chemicals without issue. It's also used in chemical processing plants, so it is built to withstand corrosive environments.

Question by: Dwight M on May 3, 2025, 11:49 AM

Been trying to route some hydraulic lines in a tight spot on a piece of equipment and need a right-angle connection at the 1-3/16-12 ORS size. this the right part for that?

Answer by: Customer Support on May 5, 2025, 8:48 AM

For a 90-degree turn at that thread size, yeah, this adapter fits the bill. It connects a 1-3/16-12 Male SAE O-Ring Face Seal on one end to a 1-3/16-12 Female SAE O-Ring Face Seal on the other, so you're getting a same-size elbow rather than any kind of reducer. The A and B dimensions come in at 1.47 and 1.82 respectively, which keeps the overall footprint pretty manageable when you're working in a cramped area. The O-Ring Face Seal configuration on both ends also helps cut down on leak points, which matters when you're dealing with high-pressure hydraulic circuits.
