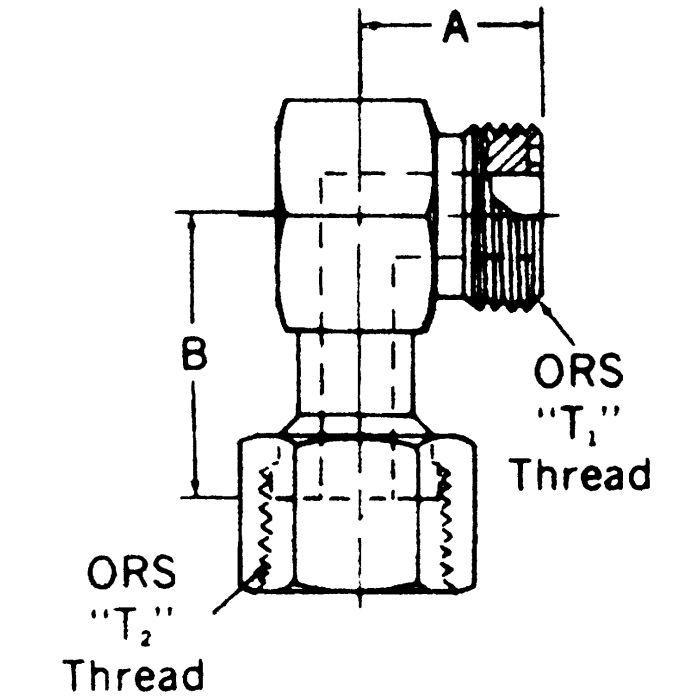

Steel Adapters, Male SAE O-Ring Face Seal To Female SAE O-Ring Face Seal, 90 deg Elbow
Description & Features
Products
| Model Number | Tube O.D. | Thread 1 | Thread 2 | A | B | Price | Action |
|---|---|---|---|---|---|---|---|
FF2098T1616S Steel Male To Female ORS 90 Elbow |
1 |
1-7/16-12 |
1-7/16-12 |
1.64 |
2.1 |
|
|
FF2098T0404S Steel Male To Female ORS 90 Elbow |
0.25 |
9/16-18 |
9/16-18 |
0.85 |
1.04 |
|
|
FF2098T0606S Steel Male To Female ORS 90 Elbow |
0.38 |
11/16-16 |
11/16-16 |
0.98 |
1.15 |
|
|
FF2098T0808S Steel Male To Female ORS 90 Elbow |
0.5 |
13/16-16 |
13/16-16 |
1.1 |
1.49 |
|
|
FF2098T1010S Steel Male To Female ORS 90 Elbow |
0.63 |
1-14 |
1-14 |
1.31 |
1.62 |
|
|
FF2098T1212S Steel Male To Female ORS 90 Elbow |
0.75 |
1-3/16-12 |
1-3/16-12 |
1.47 |
1.82 |
|
