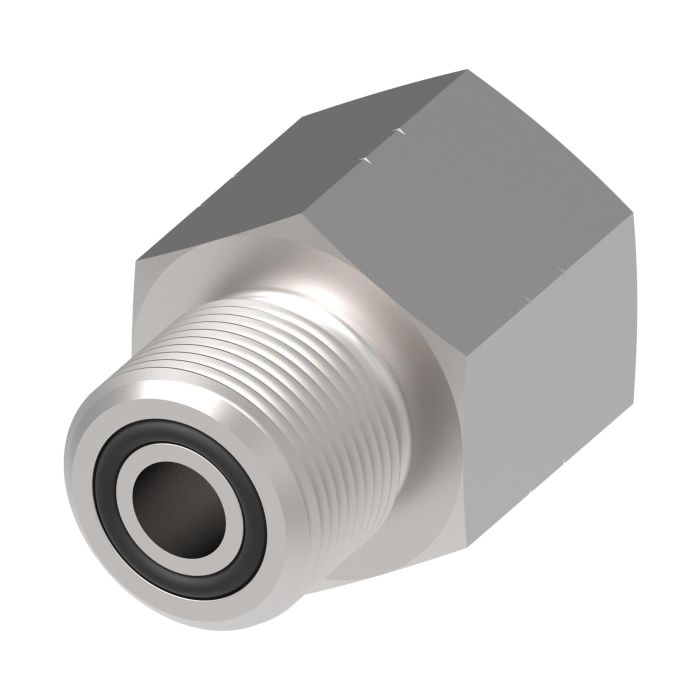

Steel Adapter, 13/16-16 Male O-Ring Face Seal To 1-14 Female O-Ring Face Seal, Straight

Ask A Question

Description & Features

Part of the Eaton Aeroquip FF2281T Series, this Steel Adapter, 13/16-16 Male O-Ring Face Seal To 1-14 Female O-Ring Face Seal, Straight provides a reliable ORS-to-ORS straight connection in demanding industrial environments. The O-ring face seal design on both ends minimizes the risk of leakage, making it well suited for high-integrity hydraulic circuit connections.

Rated for use across a range of challenging industries, including marine and military, chemical processing, offshore drilling, pulp and paper, and food and beverage processing, this adapter is built to perform where contamination control and connection integrity matter. With an A dimension of 1.12, it fits within space-conscious assemblies while maintaining full-flow geometry across the transition from the 13/16-16 male end to the 1-14 female end.

SKU: FF2281T0810S

Supplier Part Number (MPN): FF2281T0810S

Alternate Part Numbers: C1GJ64, MI-00444606, MINO-00015I01237

Specifications

A
1.12
Alternate Part Numbers
Alternate Part Number C1GJ64, Alternate Part Number MI-00444606, Alternate Part Number MINO-00015I01237
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.81
End Size 2
1
End Type 1
ORS
End Type 2
ORS
Minimum Working Temperature
-40
Seal Part if Included
FF9446-14
Supplier Part Number
FF2281T0810S
Thread 1
13/16-16
Thread 2
1-14
Thread Sealant
No
Tube O.D.
0.63
Tube O.D.
0.63
Product Weight
0.10 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A Price Action
Steel Adapter, 11/16-16 Male O-Ring Face Seal To 13/16-16 Female O-Ring Face Seal, Straight

FF2281T0608S Steel Male To Female ORS Adapter

0.5

11/16-16

13/16-16

0.94

Steel Adapter, 13/16-16 Male O-Ring Face Seal To 1-14 Female O-Ring Face Seal, Straight

FF2281T0810S Steel Male To Female ORS Adapter

0.63

13/16-16

1-14

1.12

Steel Adapter, 13/16-16 Male O-Ring Face Seal To 1-3/16-12 Female O-Ring Face Seal, Straight

FF2281T0812S Steel Male To Female ORS Adapter

0.75

13/16-16

1-3/16-12

1.1

Steel Adapter, 1-7/16-12 Male O-Ring Face Seal To 1-11/16-12 Female O-Ring Face Seal, Straight

FF2281T1620S Steel Male To Female ORS Adapter

1.25

1-7/16-12

1-11/16-12

2.69

Product Questions & Answers (3)

Question by: Larry H on Dec 19, 2025, 9:16 PM
Got a hydraulic line running ORS fittings on both ends and need to step up from a 13/16-16 male to a 1-14 female, this the right piece for that?
Answer by: Customer Support on Dec 21, 2025, 7:00 AM
That's what this adapter handles. The male end is 13/16-16 O-ring face seal and the female end is 1-14 O-ring face seal, straight through with no angle. Both ends use the face seal design, so you get a solid, leak-resistant connection on each side without needing extra fittings in between.
Question by: Dale E on Nov 21, 2025, 8:45 PM
got a hose end thats 13/16-16 ORFS male. will this adapter let me step up to a 1-14 ORFS female port?
Answer by: Customer Support on Nov 23, 2025, 3:06 PM
Function-wise, yes. It is a straight steel ORFS to ORFS adapter with a 13/16-16 male O-ring face seal on one end and a 1-14 female O-ring face seal on the other, so it bridges those two ORFS thread sizes in-line.
Question by: Ricky W on Oct 26, 2025, 6:59 PM
Can this adapter handle hydraulic fluid in a food processing plant, or do I need something special?
Answer by: Customer Support on Oct 27, 2025, 7:15 PM
This adapter is rated for applications in food and beverage processing, where contamination control is important. It’s also compatible with a range of fluids, as detailed in the fluid compatibility document.
