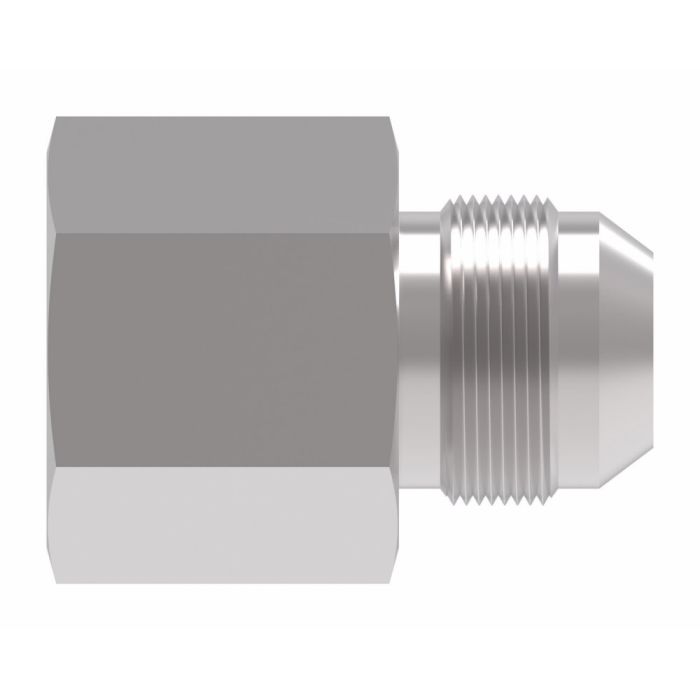

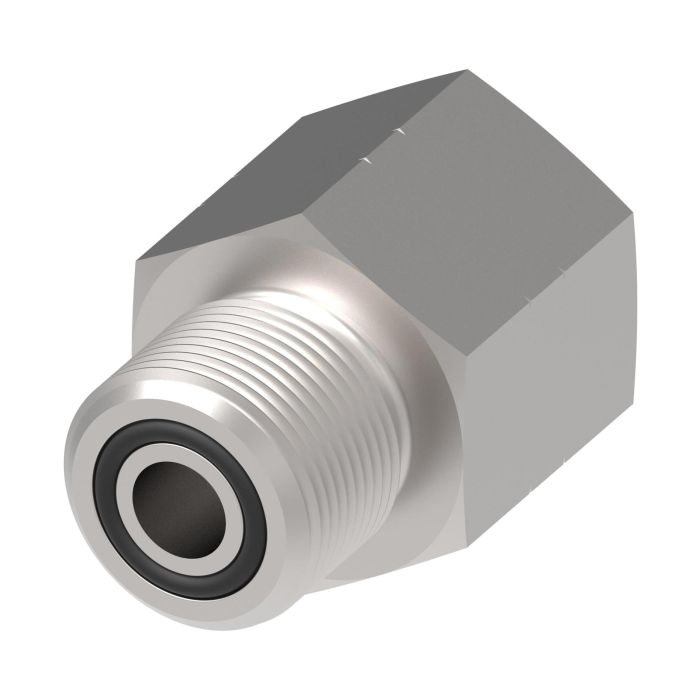

Steel Adapter, 13/16-16 Male O-Ring Face Seal To 1-3/16-12 Female O-Ring Face Seal, Straight

Ask A Question

Description & Features

The Eaton Aeroquip Steel Adapter features a 13/16-16 male O-ring face seal and a 1-3/16-12 female O-ring face seal, designed for secure and efficient connections in hydraulic systems. Known for its robust construction, this straight adapter is crafted from high-quality steel, ensuring durability and reliability in demanding environments. Its compatibility with various fluids makes it an ideal choice for applications in marine, military, chemical processing, pulp and paper industries, food and beverage processing, and off-shore drilling.

This adapter is part of the Danfoss/Eaton FF2281T Series, which is recognized for its reliability and performance under high-pressure conditions. The straightforward design facilitates easy installation and maintenance, while its compatibility with existing systems ensures seamless integration. The adapter's design meets industry standards, ensuring optimal performance and safety.

SKU: FF2281T0812S

Supplier Part Number (MPN): FF2281T0812S

Alternate Part Numbers: C1GL81, MI-02030369, MINO-00015J26307

Specifications

A
1.10
Alternate Part Numbers
Alternate Part Number C1GL81, Alternate Part Number MI-02030369, Alternate Part Number MINO-00015J26307
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.81
End Type 1
ORS
End Type 2
ORS
Minimum Working Temperature
-40
Seal Part if Included
FF9446-14
Supplier Part Number
FF2281T0812S
Thread 1
13/16-16
Thread 2
1-3/16-12
Thread Sealant
No
Tube O.D.
0.75
Tube O.D.
0.75
Product Weight
0.34 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A Price Action
Steel Adapter, 11/16-16 Male O-Ring Face Seal To 13/16-16 Female O-Ring Face Seal, Straight

FF2281T0608S Steel Male To Female ORS Adapter

0.5

11/16-16

13/16-16

0.94

Steel Adapter, 13/16-16 Male O-Ring Face Seal To 1-14 Female O-Ring Face Seal, Straight

FF2281T0810S Steel Male To Female ORS Adapter

0.63

13/16-16

1-14

1.12

Steel Adapter, 13/16-16 Male O-Ring Face Seal To 1-3/16-12 Female O-Ring Face Seal, Straight

FF2281T0812S Steel Male To Female ORS Adapter

0.75

13/16-16

1-3/16-12

1.1

Steel Adapter, 1-7/16-12 Male O-Ring Face Seal To 1-11/16-12 Female O-Ring Face Seal, Straight

FF2281T1620S Steel Male To Female ORS Adapter

1.25

1-7/16-12

1-11/16-12

2.69

Product Questions & Answers (3)

Question by: Neil B on Mar 4, 2026, 9:36 AM
got a hose end that’s 13/16-16 ORFS male. will this adapter let me step up to a 1-3/16-12 ORFS female port?
Answer by: Customer Support on Mar 6, 2026, 9:15 AM
It bridges those two O-ring face seal sizes in a straight adapter. One side is 13/16-16 male ORFS and the other side is 1-3/16-12 female ORFS, so it is meant for exactly that kind of size change while staying in the ORFS style.
Question by: Judy E on May 6, 2025, 7:18 AM
what industries is this adapter actually built for? seen a lot of adapters claim they work everywhere but curious if this one's got specific uses in mind
Answer by: Customer Support on May 7, 2025, 8:36 AM
Marine, military, chemical processing, pulp and paper, food and beverage, and offshore drilling are all listed applications for this adapter. That covers a pretty wide range of demanding environments, so it holds up well across industries where fluid integrity and connection reliability really matter.
Question by: Ronnie J on Mar 23, 2026, 6:28 AM
Will this adapter work in a saltwater environment on my boat?
Answer by: Customer Support on Mar 24, 2026, 1:13 PM
Given its compatibility with marine applications, this adapter is well-suited for use in saltwater environments, offering reliable performance for your boat's hydraulic system.
