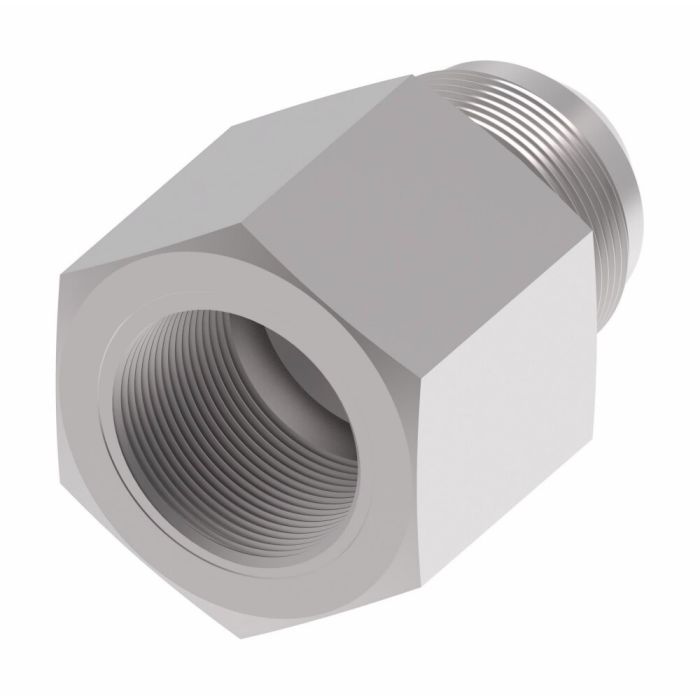

main product photo

Steel Adapter, 1-7/16-12 Male O-Ring Face Seal To 1-11/16-12 Female O-Ring Face Seal, Straight

Ask A Question

Description & Features

Manufactured from steel and built to Eaton Aeroquip's FF2281T Series standards, this straight adapter connects a 1-7/16-12 male O-ring face seal to a 1-11/16-12 female O-ring face seal in a single inline configuration. The O-ring face seal design on both ends provides reliable leak-free connections in demanding fluid transfer applications.

The Steel Adapter, 1-7/16-12 Male O-Ring Face Seal To 1-11/16-12 Female O-Ring Face Seal, Straight is suited for use across marine and military, chemical processing, pulp and paper, food and beverage processing, and offshore drilling environments. With an overall length (A) of 2.69 inches, it fits inline installations where a straight ORS-to-ORS transition is required between mismatched thread sizes.

Catalog number C1FZ56 provides an additional reference for cross-identification with Eaton Aeroquip documentation.

SKU: FF2281T1620S

Supplier Part Number (MPN): FF2281T1620S

Alternate Part Numbers: C1FZ56, MI-06332736, MINO-00015X00850

Specifications

A
2.69
Alternate Part Numbers
Alternate Part Number C1FZ56, Alternate Part Number MI-06332736, Alternate Part Number MINO-00015X00850
Application
Marine/Military, Chemical Processing, Pulp and Paper Industries, Food and Beverage Processing, Off-Shore Drilling
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Type 1
ORS
End Type 2
ORS
Hex Size 2
1.63
Minimum Working Temperature
-40
Seal Part if Included
FF9446-21
Supplier Part Number
FF2281T1620S
Thread 1
1-7/16-12
Thread 2
1-11/16-12
Thread Sealant
No
Tube I.D. 2
0.81
Tube O.D.
1.25
Tube O.D.
1.25
Product Weight
1.18 lbs

Related Documents

Similar Products

Model Number Tube O.D. Thread 1 Thread 2 A Price Action
Steel Adapter, 11/16-16 Male O-Ring Face Seal To 13/16-16 Female O-Ring Face Seal, Straight

FF2281T0608S Steel Male To Female ORS Adapter

0.5

11/16-16

13/16-16

0.94

Steel Adapter, 13/16-16 Male O-Ring Face Seal To 1-14 Female O-Ring Face Seal, Straight

FF2281T0810S Steel Male To Female ORS Adapter

0.63

13/16-16

1-14

1.12

Steel Adapter, 13/16-16 Male O-Ring Face Seal To 1-3/16-12 Female O-Ring Face Seal, Straight

FF2281T0812S Steel Male To Female ORS Adapter

0.75

13/16-16

1-3/16-12

1.1

Steel Adapter, 1-7/16-12 Male O-Ring Face Seal To 1-11/16-12 Female O-Ring Face Seal, Straight

FF2281T1620S Steel Male To Female ORS Adapter

1.25

1-7/16-12

1-11/16-12

2.69

Product Questions & Answers (1)

Question by: Joyce H on Jul 12, 2025, 2:44 PM
Got a line running ORS fittings but the male and female ends ain't the same thread size. this adapter gonna bridge that gap without me having to swap out the whole assembly?
Answer by: Customer Support on Jul 14, 2025, 6:51 AM
That's what it's built for. One end is a 1-7/16-12 male O-ring face seal and the other is a 1-11/16-12 female O-ring face seal, so it transitions between those two mismatched thread sizes in a straight inline run. Both ends use the face seal design, which keeps things tight and leak-free without relying on thread contact alone to hold the seal. At 2.69 inches overall length, it stays pretty compact for what it does.
