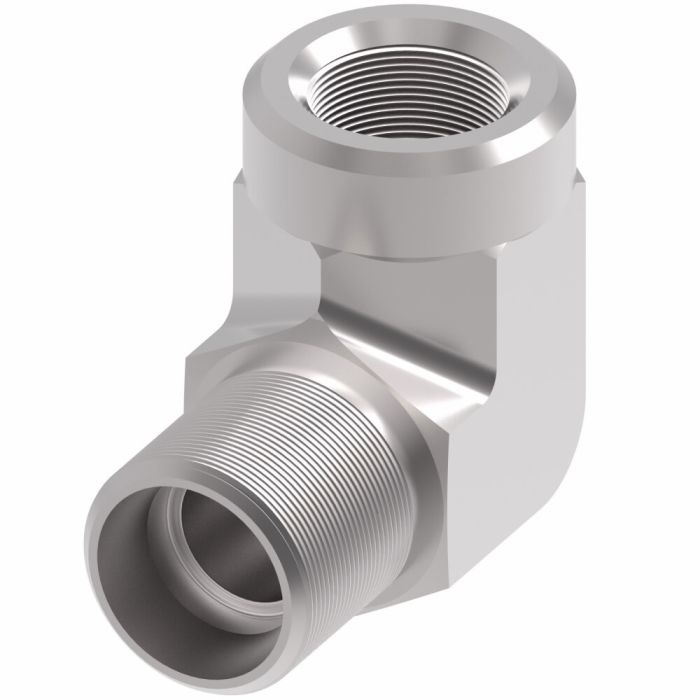

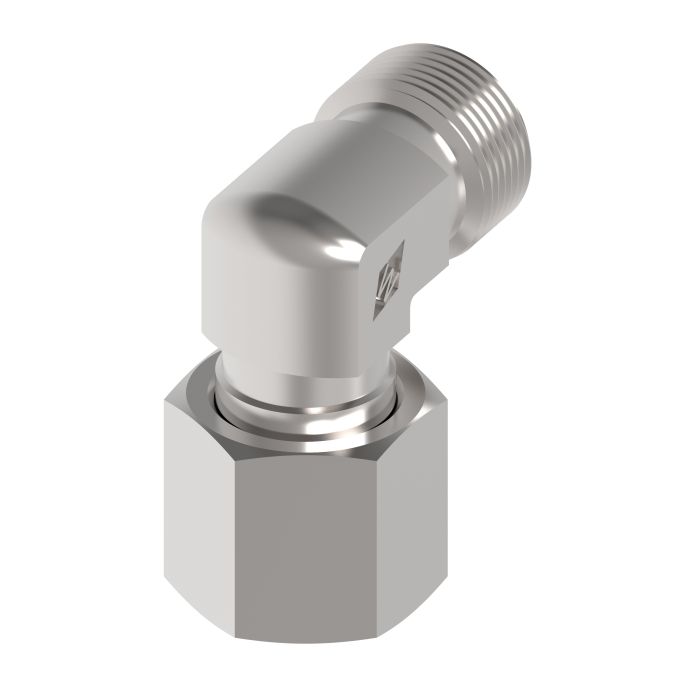

Steel Metric Flareless Fitting, 12.00 mm L Series Union Swivel Elbow

Ask A Question

Description & Features

The Steel Metric Flareless Fitting 12.00 mm L Series Union Swivel Elbow from Danfoss Power Solutions (II LLC Aeroquip) offers a robust construction using forged or drawn high-quality steel. This fitting ensures reliable performance by conforming in design and dimensions to the latest DIN standards.

Designed for industrial applications it features a maximum operating pressure of 400 bar making it suitable for demanding environments. This fitting is part of the L Series with a tube O.D. of 12 mm and operates efficiently within a temperature range up to 120deg;C.

The Steel Metric Flareless Fitting is well-suited for industries requiring high standards in tube fittings due to its compliance with stringent specifications. The pressure rating of Series S varies from 160 to 630 bar incorporating a 4:1 safety factor enhancing the product's durability and reliability under various conditions.

Catalog Number: C1KX30

Supplier Part Number: WAL063880

Brand: Danfoss Power Solutions (II LLC Aeroquip)

Segment Code: seg_code_c

ECCN: EAR99

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
L12
Connection Size 2
12 mm
Connection Type
Tube, DKO Swivel
Connection Type 1
DKO 24 deg Swivel
Connection Type 2
24 deg Tube
Fitting Type
90 deg Elbow
Hex Size
17 x 22 mm
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
400 bar
Seal Material
NBR
Segment Code
C
Series
L Series
Thread Size
M18x1.5

Similar Products

Model Number Tube O.D. Series Maximum Operating Pressure L5 Price Action
Steel Metric Flareless Fitting, 16.00 mm S Series Union Swivel Elbow

WAL063892 Steel Metric Flareless 90 Elbow

16

S

630

Steel Metric Flareless Fitting, 6.00 mm L Series Union Swivel Elbow

WAL063877 Steel Metric Flareless 90 Elbow

6

L

500

Steel Metric Flareless Fitting, 8.00 mm L Series Union Swivel Elbow

WAL063878 Steel Metric Flareless 90 Elbow

8

L

500

Steel Metric Flareless Fitting, 10.00 mm L Series Union Swivel Elbow

WAL063879 Steel Metric Flareless 90 Elbow

10

L

500

Steel Metric Flareless Fitting, 15.00 mm L Series Union Swivel Elbow

WAL063881 Steel Metric Flareless 90 Elbow

15

L

400

Steel Metric Flareless Fitting, 18.00 mm L Series Union Swivel Elbow

WAL063882 Steel Metric Flareless 90 Elbow

18

L

400

Steel Metric Flareless Fitting, 12.00 mm S Series Union Swivel Elbow

WAL063890 Steel Metric Flareless 90 Elbow

12

S

630

Steel Metric Flareless Fitting, 25.00 mm S Series Union Swivel Elbow

WAL063894 Steel Metric Flareless 90 Elbow

25

S

420

Product Questions & Answers (2)

Question by: Warren P on May 13, 2025, 4:47 PM
got a 12 mm tube line, is this the right union swivel elbow for that L series metric flareless setup?
Answer by: Customer Support on May 15, 2025, 6:42 AM
For a 12.00 mm tube O.D. in the L Series, this union swivel elbow is the matching size and series called out for a metric flareless tube fitting.
Question by: Norm W on Dec 25, 2025, 6:33 PM
What’s the max pressure this elbow fitting can handle?
Answer by: Customer Support on Dec 27, 2025, 1:05 PM
This fitting is rated for a maximum operating pressure of 400 bar, which makes it a good choice for demanding industrial jobs. The Series S variation goes even higher, from 160 to 630 bar, with a 4:1 safety factor built in.
