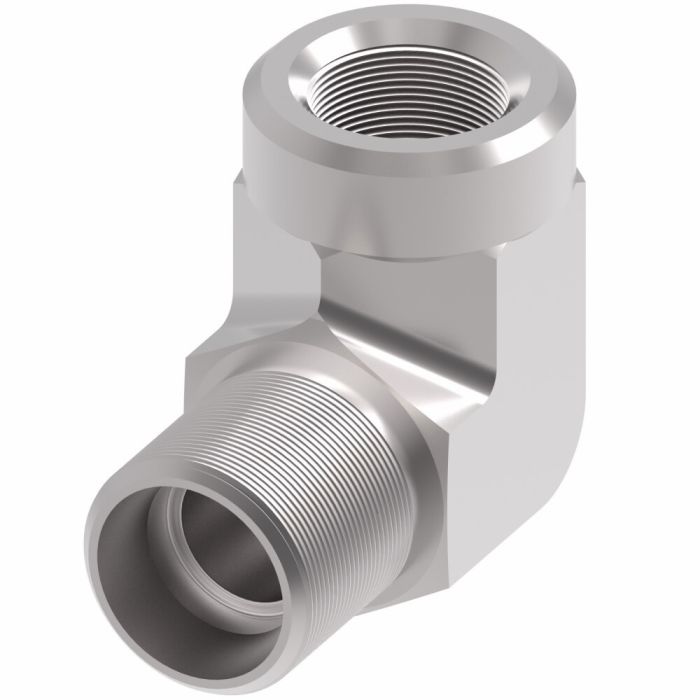

main product photo

Steel Metric Flareless Fitting, 12.00 mm S Series Union Swivel Elbow

Ask A Question

Description & Features

This Eaton Aeroquip steel fitting is a 12.00 mm S Series union swivel elbow, designed for hydraulic applications. The steel construction ensures durability and reliability in demanding environments. This Steel Metric Flareless Fitting is part of the Eaton Waltech tube fittings line, known for quality and performance.

This fitting ensures a secure and leak-free connection in hydraulic systems. Refer to the attached documentation for fluid compatibility information and proper installation guidelines.

SKU: WAL063890

Supplier Part Number (MPN): WAL063890

Alternate Part Numbers: C1KX34

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
L12
Connection Size 2
12 mm
Connection Type
Tube, DKO Swivel
Connection Type 1
DKO 24 deg Swivel
Connection Type 2
24 deg Tube
Fitting Type
90 deg Elbow
Hex Size
17 mm, 24 mm
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Segment Code
C
Series
S Series
Thread Size
M20x1.5

Similar Products

Model Number Tube O.D. Series Maximum Operating Pressure L5 Price Action
Steel Metric Flareless Fitting, 16.00 mm S Series Union Swivel Elbow

WAL063892 Steel Metric Flareless 90 Elbow

16

S

630

Steel Metric Flareless Fitting, 6.00 mm L Series Union Swivel Elbow

WAL063877 Steel Metric Flareless 90 Elbow

6

L

500

Steel Metric Flareless Fitting, 8.00 mm L Series Union Swivel Elbow

WAL063878 Steel Metric Flareless 90 Elbow

8

L

500

Steel Metric Flareless Fitting, 10.00 mm L Series Union Swivel Elbow

WAL063879 Steel Metric Flareless 90 Elbow

10

L

500

Steel Metric Flareless Fitting, 12.00 mm L Series Union Swivel Elbow

WAL063880 Steel Metric Flareless 90 Elbow

12

L

400

Steel Metric Flareless Fitting, 15.00 mm L Series Union Swivel Elbow

WAL063881 Steel Metric Flareless 90 Elbow

15

L

400

Steel Metric Flareless Fitting, 18.00 mm L Series Union Swivel Elbow

WAL063882 Steel Metric Flareless 90 Elbow

18

L

400

Steel Metric Flareless Fitting, 25.00 mm S Series Union Swivel Elbow

WAL063894 Steel Metric Flareless 90 Elbow

25

S

420

Product Questions & Answers (1)

Question by: Brent R on Aug 9, 2025, 8:26 PM
got a tight spot on my hydraulic line. is this the kind of elbow that lets you swing it into position before you snug it down
Answer by: Customer Support on Aug 11, 2025, 8:51 AM
With the union swivel elbow layout, you get an elbow connection that can be oriented during assembly, then tightened to lock in place. It is made for hydraulic use and is intended to give a secure, leak-free connection when installed correctly.
