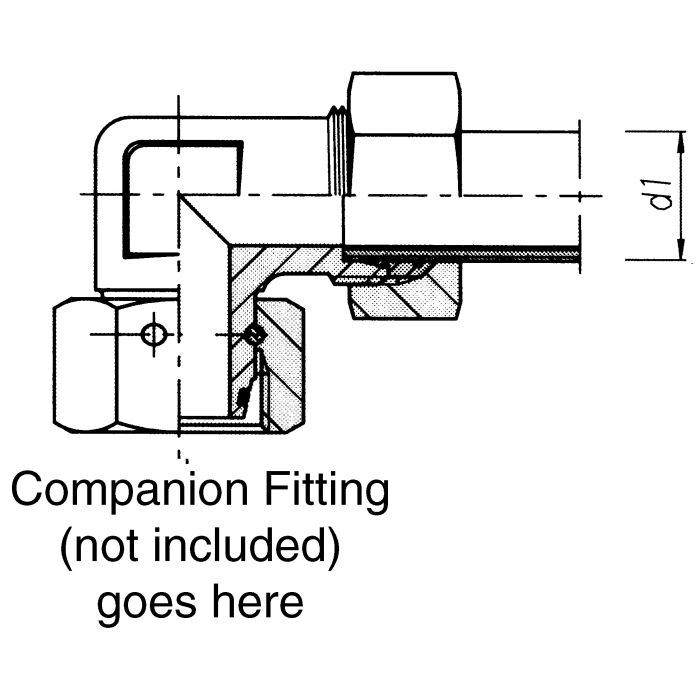

Steel Metric Flareless Fitting, 22.00 mm L Series 90 deg Swivel Elbow

Ask A Question

Description & Features

This Eaton Aeroquip steel metric flareless fitting is a 22.00 mm L Series 90 degree swivel elbow, designed to conform to DIN standards. Constructed from forged or drawn high-quality steel, this fitting is suitable for systems with a temperature range of up to 120°C.

The Steel Metric Flareless Fitting features a pressure rating that varies from 160 to 630 bar, with a 4:1 safety factor, depending on the series.

SKU: WAL374560

Supplier Part Number (MPN): WAL374560

Alternate Part Numbers: C1KY83, MI-08752985, MINO-04854X98477

Specifications

Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
Maximum Operating Pressure
250
Series
L
Supplier Part Number
WAL374560
Tube O.D.
22
Tube O.D.
22
Alternate Part Numbers
Alternate Part Number C1KY83, Alternate Part Number MI-08752985, Alternate Part Number MINO-00015X24910, Alternate Part Number MINO-04854X98477
Product Weight
0.74 lbs

Related Documents

Similar Products

Model Number Tube O.D. Series Maximum Operating Pressure For Use With Price Action
Steel Metric Flareless Fitting, 22.00 mm L Series 90 deg Swivel Elbow

WAL374560 Steel Metric Flareless 90 Elbow

22

L

250

Product Questions & Answers (3)

Question by: Donna S on Oct 24, 2025, 9:18 AM
what's the max temp this fitting can handle? running a hydraulic line near some heat sources and want to make sure it ain't gonna cause problems
Answer by: Customer Support on Oct 25, 2025, 3:22 PM
Up to 120°C is the rated temperature limit for this fitting. As long as your system stays within that range, you're in good shape. It's forged or drawn high-quality steel, so it holds up well under the kind of heat typical hydraulic systems generate near machinery or engines.
Question by: Frank M on Jan 30, 2026, 7:04 PM
trying to swap out an elbow on a metric tube run, is this the 22 mm one in the L series with a swivel?
Answer by: Customer Support on Feb 1, 2026, 5:54 PM
For a 22.00 mm tube outside diameter in the L Series, this part is a 90 degree swivel elbow in Eaton Aeroquip’s metric steel flareless line, built to DIN design and dimension standards.
Question by: Ricky R on Feb 11, 2026, 6:33 PM
What kind of temperatures can this elbow fitting handle?
Answer by: Customer Support on Feb 13, 2026, 6:43 AM
It's rated to handle temperatures up to 120°C.
