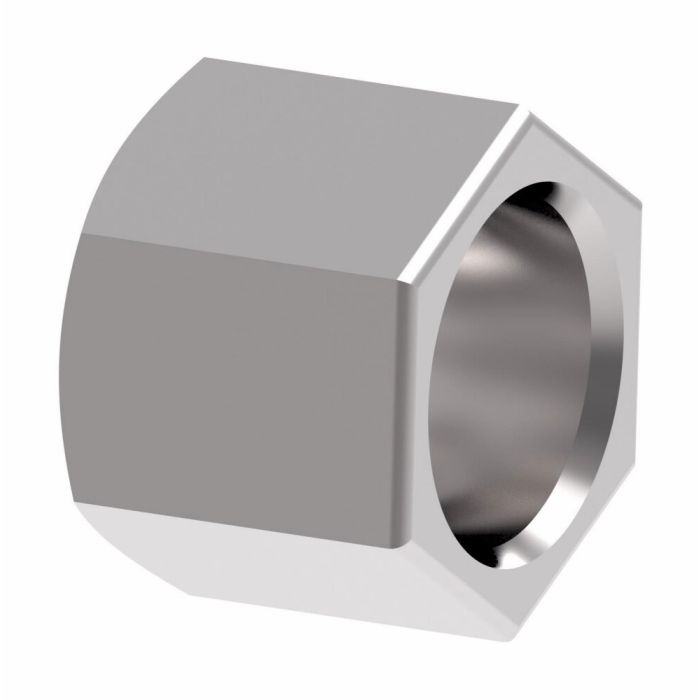

main product photo

Steel Metric Flareless Fitting, 10.00 mm WALpro Series Nut

Ask A Question

Description & Features

Constructed from high quality forged or drawn steel, this fitting adheres to the latest DIN standards in design and dimensions. It boasts a maximum operating pressure of 500 bar and features a 4:1 safety factor within the Series S classification, with pressure ratings varying between 160 and 630 bar. The union nut offers robust performance for metric steel flareless fittings and is compatible with an M 16x1.5 thread and a 10 mm tube outer diameter. Ideal for high-pressure applications up to 120deg;C, the fitting ensures reliability and durability. It is a crucial component for various industrial environments requiring precise and dependable fittings. MPN: EAR99 Supplier Part Number: WAL039844

Specifications

Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
Maximum Operating Pressure
500
Series
WALpro
Supplier Part Number
WAL039844
Thread 1
M 16x1.5
Tube O.D.
10
Tube O.D.
10
Alternate Part Numbers
Alternate Part Number C1KX12, Alternate Part Number MI-01675408, Alternate Part Number MINO-04854Q18222
Product Weight
0.04 lbs

Related Documents

Similar Products

Model Number Tube O.D. Series Maximum Operating Pressure Thread 1 Price Action
Steel Metric Flareless Fitting, 8.00 mm WALpro Series Nut

WAL039843 Steel Metric Flareless Nut

8

WALpro

500

M 14x1.5

Steel Metric Flareless Fitting, 10.00 mm WALpro Series Nut

WAL039844 Steel Metric Flareless Nut

10

WALpro

500

M 16x1.5

Steel Metric Flareless Fitting, 16.00 mm WALpro Series Nut

WAL039857 Steel Metric Flareless Nut

16

WALpro

630

M 24x1.5

Steel Metric Flareless Fitting, 25.00 mm WALpro Series Nut

WAL039859 Steel Metric Flareless Nut

25

WALpro

420

M 36x2.0

Steel Metric Flareless Fitting, 30.00 mm WALpro Series Nut

WAL039860 Steel Metric Flareless Nut

30

WALpro

420

M 42x2.0

Steel Metric Flareless Fitting, 6.00 mm LL Series Nut

WAL039840 Steel Metric Flareless Nut

6

LL

100

M 10x1.0

Steel Metric Flareless Fitting, 6.00 mm WALpro Series Nut

WAL039842 Steel Metric Flareless Nut

6

WALpro

500

M 12x1.5

Steel Metric Flareless Fitting, 12.00 mm WALpro Series Nut

WAL039845 Steel Metric Flareless Nut

12

WALpro

400

M 18x1.5

Steel Metric Flareless Fitting, 15.00 mm WALPro Series Nut

WAL039846 Steel Metric Flareless Nut

15

WALPro

400

M 22x1.5

Steel Metric Flareless Fitting, 18.00 mm WALpro Series Nut

WAL039847 Steel Metric Flareless Nut

18

WALpro

400

M 26x1.5

Steel Metric Flareless Fitting, 22.00 mm WALpro Series Nut

WAL039848 Steel Metric Flareless Nut

22

WALpro

250

M 30x2.0

Steel Metric Flareless Fitting, 6.00 mm WALPro Series Nut

WAL039852 Steel Metric Flareless Nut

6

WALPro

800

M 14x1.5

Steel Metric Flareless Fitting, 8.00 mm WALPro Series Nut

WAL039853 Steel Metric Flareless Nut

8

WALPro

800

M 16x1.5

Steel Metric Flareless Fitting, 10.00 mm WALPro Series Nut

WAL039854 Steel Metric Flareless Nut

10

WALPro

800

M 18x1.5

Steel Metric Flareless Fitting, 12.00 mm WALPro Series Nut

WAL039855 Steel Metric Flareless Nut

12

WALPro

630

M 20x1.5

Steel Metric Flareless Fitting, 20.00 mm WALpro Series Nut

WAL039858 Steel Metric Flareless Nut

20

WALpro

420

M 30x2.0

Product Questions & Answers (3)

Question by: Brenda R on Apr 18, 2025, 8:28 PM
What size tubing does this union nut fit? Gotta make sure I'm gettin' the right one.
Answer by: Customer Support on Apr 20, 2025, 7:45 PM
This union nut is designed for a 10 mm outer diameter tube.
Question by: Phil C on Oct 27, 2025, 3:25 PM
fitting says it goes up to 500 bar but I see mentions of 160 to 630 bar depending on series, which one actually applies here?
Answer by: Customer Support on Oct 29, 2025, 11:55 AM
The 500 bar figure is the maximum operating pressure for this specific fitting. The broader 160 to 630 bar range covers the full Series S classification, which includes multiple sizes and configurations. Where this particular nut lands within that range depends on the application setup, but 500 bar is the rated ceiling for this part. The 4:1 safety factor applies across the series, so that holds here as well.
Question by: Roy W on Mar 24, 2025, 9:20 AM
trying to replace a union nut on a metric flareless fitting. is this one the WALpro nut for 10mm tube and M16x1.5 threads?
Answer by: Customer Support on Mar 26, 2025, 7:17 AM
It matches a 10 mm tube outer diameter and an M 16x1.5 thread, and it is called out as a WALpro Series union nut for metric steel flareless fittings.
