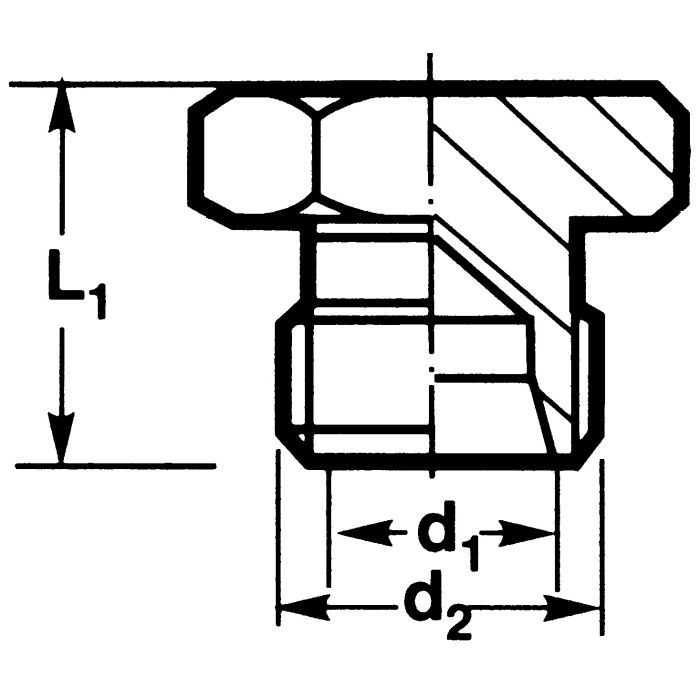

Steel Metric Flareless Fitting, 20.00 mm S Series Tube Plug, M 30x2

Ask A Question

Description & Features

Crafted from high-quality forged or drawn steel this tube plug ensures durability and reliability. It accommodates a tube O.D. of 20 mm in the S Series making it a versatile choice for various industrial applications.

The fitting's design adheres to the latest DIN standards ensuring compatibility and reliable performance. With a maximum operating pressure of up to 420 bar and a comprehensive temperature range of up to 120deg;C it is suitable for demanding environments.

The thread specification of M 30x2 adds to the robust connectivity and secure fitting. The Steel Metric Flareless Fitting 20.00 mm S Series Tube Plug M 30x2 is engineered for exceptional endurance.

MPN: C1MV44

Supplier Part Number: WAL063400

Specifications

Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
L1
28
Maximum Operating Pressure
420
Series
S
Supplier Part Number
WAL063400
Thread 1
M 30x2
Tube O.D.
20
Tube O.D.
20
Alternate Part Numbers
Alternate Part Number C1MV44, Alternate Part Number MINO-00015X15855
Product Weight
0.29 lbs

Related Documents

Similar Products

Model Number Tube O.D. Series Maximum Operating Pressure Thread 1 L1 Price Action
Steel Metric Flareless Fitting, 8.00 mm L Series Tube Plug, M 14x1.5

793-351 Steel Metric Flareless Plug

8

L

250

M 14x1.5

15

Steel Metric Flareless Fitting, 20.00 mm S Series Tube Plug, M 30x2

WAL063400 Steel Metric Flareless Plug

20

S

420

M 30x2

28

Product Questions & Answers (3)

Question by: Lyle A on May 24, 2025, 9:45 AM
got a 20mm tube line I need to cap off on a hydraulic manifold block, this plug rated for any real pressure or just light duty stuff?
Answer by: Customer Support on May 25, 2025, 10:03 AM
At 420 bar max operating pressure, it holds up well in heavy-duty hydraulic systems. That's well into the range of most industrial and mobile hydraulic circuits, so capping off an active 20mm line on a manifold block is exactly the kind of job this part is built for.
Question by: Wes P on Feb 6, 2026, 7:39 PM
got a 20mm S series tube line i need to cap off, is this the right plug or am i mixing up sizes?
Answer by: Customer Support on Feb 8, 2026, 6:47 AM
For a 20.00 mm tube O.D. in the S Series, this is the matching tube plug. The thread on the plug is M 30x2, so you will also want the mating port or connection to be M 30x2.
Question by: Joyce R on Aug 16, 2025, 5:22 PM
Reckon this'll hold up in a hydraulic system that gets pretty darn hot?
Answer by: Customer Support on Aug 18, 2025, 6:58 AM
This tube plug is rated to withstand temperatures up to 120 degrees Celsius, so it should handle demanding environments where things get hot.
