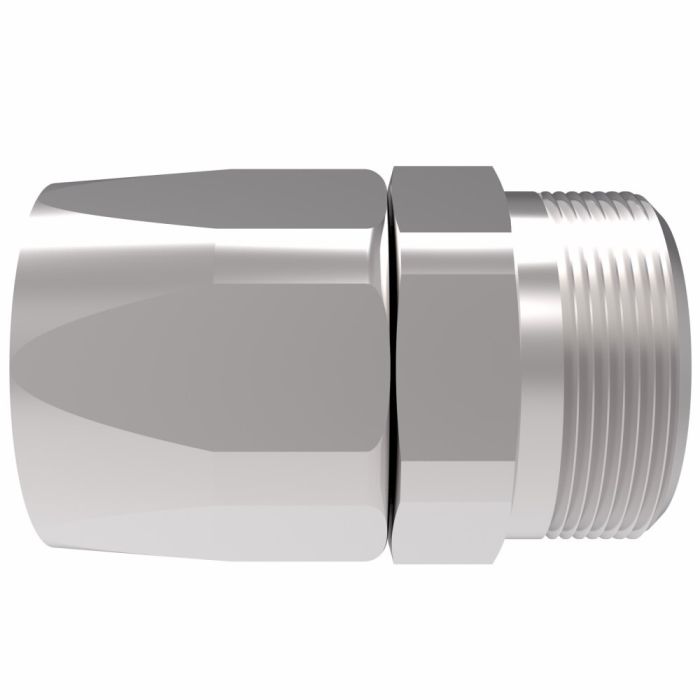

main product photo

Steel Reusable 1 Wire Braid Teflon Fitting, -04 (7/16-24) Male SAE Inverted Flare, -04 Hose, Straight

Ask A Question

Description & Features

Designed for durability and efficiency, the Steel Reusable 1 Wire Braid Teflon Fitting is ideal for industrial applications requiring reliable fluid connections. This fitting features a -04 (7/16-24) male SAE inverted flare, ensuring secure and leak-proof connections. Its robust steel construction, combined with a Teflon lining, offers excellent resistance to various fluids, making it suitable for demanding environments.

The fitting is compatible with -04 hose sizes, providing a straight connection that optimizes fluid flow. Its design incorporates a male inverted flare for easy installation and maintenance. With dimensions of 1.66 inches in length and a hex size of 0.56 inches, it fits seamlessly into existing setups without the need for extensive modifications. Manufactured by Eaton Aeroquip, a leader in hydraulic solutions, this fitting ensures long-lasting performance and reliability.

SKU: FC9062-0404S

Supplier Part Number (MPN): FC9062-0404S

Alternate Part Numbers: C1CT47, MI-00326152, MINO-00015F67769

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.13 in
Compatible Hose ID
0.19 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Hose, Male SAE Inverted Flared
Connection Type 1
Hose
Connection Type 2
Male SAE Inverted Flare
Construction Style
Reusable
Cut-Off Factor
1.66 in
d Dimensions
1.66 in
Dimensions
2.13 in L
End Gender 1
Male
End Gender 2
Male
End Size 1
7/16 in
End Size 2
1/4 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
2807, FC465 and S-TW Series PTFE Hoses
Hex Size
0.563 x 0.438 in
Hose Dash Size
04
Inside Diameter
0.16 in
Material
Steel
Material Construction
Carbon Steel
Series
FC9062 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/16-24
Thread Type
UN
Tube Outside Diameter 1
1-1/4 in

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
Steel Reusable 1 Wire Braid Teflon Fitting, 5/8-18 Male SAE Inverted Flare, -06 Hose, Straight

FC9062-0606S Steel Reusable 42 Inv Teflon Fitting

5/8-18

06

1.69 in

Steel Reusable 1 Wire Braid Teflon Fitting, -08 (3/4-18) Male SAE Inverted Flare, -08 Hose, Straight

FC9062-0808S Steel Reusable 42 Inv Teflon Fitting

3/4-18

08

1.84 in

Product Questions & Answers (3)

Question by: Gene B on Aug 21, 2025, 12:28 PM
Got a -04 hose I'm trying to terminate with a reusable fitting, does this one work for that, and what thread's on the port end?
Answer by: Customer Support on Aug 22, 2025, 5:45 PM
this fitting is built for -04 hose and uses a 7/16-24 male SAE inverted flare on the port end. The reusable design means you're not crimping anything, you can disassemble and reuse it, which saves time when you're swapping hoses out in the field. It's a straight configuration, so no angle to account for when you're routing.
Question by: Hugh B on Jun 20, 2025, 7:44 AM
i got a -04 teflon hose with 1 wire braid, will this reusable end work on it or is it for a different style
Answer by: Customer Support on Jun 22, 2025, 7:44 AM
The key match is hose type and size. This one is a reusable steel fitting made for 1 wire braid Teflon hose in -04 size, so it lines up with a -04 Teflon hose built that same way.
Question by: Hugh E on Feb 5, 2026, 9:39 AM
What kind of fluids can this handle without breaking down?
Answer by: Customer Support on Feb 7, 2026, 6:00 AM
According to Eaton Aeroquip's documentation, this fitting is compatible with a range of fluids, thanks to its Teflon lining. Check the fluid compatibility document link for the specifics.
