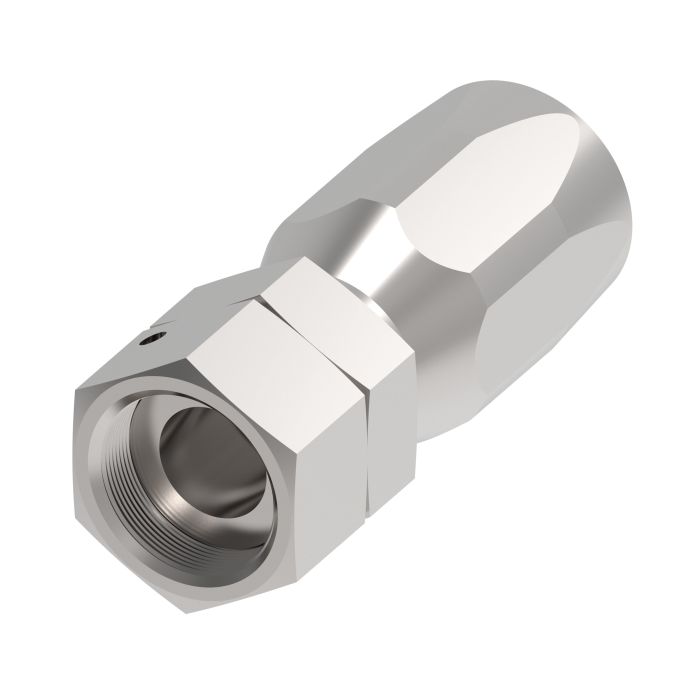

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 3/8-19 Female BSP Swivel, -06 Hose, Straight

Description & Features

The reduced bore steel fitting from Danfoss Power Solutions offers a reliable and reusable option for high-performance hose connections. Engineered with a 3/8-19 female BSP swivel end this fitting ensures secure and efficient installation. Designed for -06 hoses the steel construction delivers robustness and durability in demanding environments.

The fitting features a one-wire braid design which supports reduced bore requirements while maintaining high-quality standards. The 3/8-19 thread type provides precision fitting for optimal outcomes. This fitting does not require a mandrel simplifying the assembly process.

Compatible with various industrial applications the fitting is a versatile component suitable for diverse operational needs. Manufactured by Aeroquip a trusted brand under Danfoss Power Solutions it upholds industry standards in performance and reliability.

MPN: C1FF42

Supplier Part Number: 07.421-6-6

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.106 in	Compatible Hose ID 0.38 in	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Female BSP Swivel, Hose	Connection Type 1 Female BSP Swivel	Connection Type 2 Hose	Construction Style Reusable	Cut-Off Factor 1.44 in	d Dimensions 1.44 in	Dimensions 2.34 in L x 1.22 in W x 1.22 in H	End Gender 1 Female	End Size 1 3/8 in	Finish Dura-Kote™	Fitting Type Reusable Fitting	For Use With 1503, 2580, 2651, 302A, 303, FC234, FC300, FC321, FC350 and FC355 Series Hoses	Hex Size 22 mm	Hose Dash Size 06	Inside Diameter 1.04 in	Material Steel	Material Construction Carbon Steel	Reusable Socket Hex Size 0.826 in	Segment Code C	Series 07.421 Series	Thread Sealant Without Thread Sealant	Thread Size G3/8

Similar Products

Model Number	Thread Size	Hose Dash Size	d Dimensions	Price	Action
07.421-8-8 Steel Reusable BSP Fitting	G1/2	08	1.59 in

Product Questions & Answers (1)

Question by: Wade C on Sep 7, 2025, 8:22 PM

fitting says it's reusable -- does that mean I can pull it off one hose and put it on another without buying new hardware?

Answer by: Customer Support on Sep 9, 2025, 6:06 PM

Reusable in this context means the fitting can be disassembled from a hose and reinstalled on a replacement hose without needing to be discarded. No mandrel is required for assembly either, which keeps the process straightforward. Just make sure the replacement hose is a -06 size to match what this fitting is rated for.
