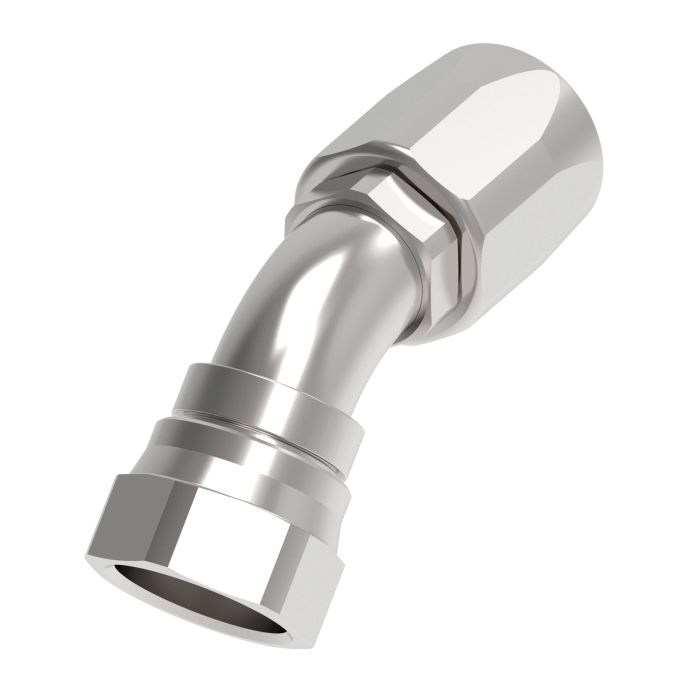

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-5/16-12 Female JIC 37 deg Flare Swivel, -16 Hose, 45 deg Elbow

Ask A Question

Description & Features

Constructed from durable steel this reduced bore fitting is designed for use with a -16 hose. The 1-5/16-12 Female JIC 37-degree flare swivel ensures reliable connections in various industrial applications maintaining integrity under high-pressure conditions. The 45-degree elbow configuration allows for seamless integration into complex systems providing flexibility in tight spaces.

The fitting does not require a mandrel simplifying installation processes. This makes it ideal for operations where efficiency and durability are critical. The hex size of 1.44 ensures a secure fit and it does not necessitate thread sealant contributing to ease of use and maintenance.

Manufactured by Danfoss Power Solutions known for their high-quality Aeroquip line this product ensures long-term performance and reliability. The fitting complies with SAE 37 standards making it a dependable choice for industry-specific applications.

Supplier Part Number: 190265-16S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.74 in
Compatible Hose ID
0.88 in
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
2.47 in
d Dimensions
2.47 in
Dimensions
5.09 in L x 1.5 in W x 2.39 in H
Drop Dimensions
1.07 in
End Connection Torque
108 to 113 lb-ft
End Gender 1
Female
End Size 1
16
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355 and FC802 Series A/C and Refrigeration Hoses
h Dimensions
1.07 in
Hex Size
28 mm
Hose Dash Size
16
Inside Diameter
0.82 in
Material
Steel
Material Construction
Carbon Steel
Reusable Socket Hex Size
1-1/2 in
Series
190265 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/16-12
Thread Type
UN

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-5/8-12 Female JIC 37 deg Flare Swivel, -20 Hose, 45 deg Elbow

190265-20S Steel Reusable JIC Fitting

1-5/8-12

20

2.85 in

1.22 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 7/8-14 Female JIC 37 deg Flare Swivel, -10 Hose, 45 deg Elbow

190297-10S Steel Reusable JIC Fitting

7/8-14

10

1.95 in

0.64 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, 45 deg Elbow

190297-4S Steel Reusable JIC Fitting

7/16-20

04

1.1 in

0.33 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -08 Hose, 45 deg Elbow

190297-8S Steel Reusable JIC Fitting

3/4-16

08

1.84 in

0.55 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-1/16-12 Female JIC 37 deg Flare Swivel, -12 Hose, 45 deg Elbow

190265-12S Steel Reusable JIC Fitting

1-1/16-12

12

2.21 in

0.78 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -06 Hose, 45 deg Elbow

190265-6S Steel Reusable JIC Fitting

9/16-18

06

1.33 in

0.39 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-1/16-14 Female JIC 37 deg Flare Swivel, -12 Hose, 45 deg Elbow

190299-12S Steel Reusable JIC Fitting

1-1/16-14

12

2.21 in

0.78 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 5/8-18 Female JIC 37 deg Flare Swivel, -06 Hose, 45 deg Elbow

190299-6S Steel Reusable JIC Fitting

5/8-18

06

1.22 in

0.39 in

Product Questions & Answers (3)

Question by: Denise A on Aug 19, 2025, 8:53 AM
fitting says reduced bore - does that mean the inside diameter is smaller than a standard -16 fitting, or is that just how they label it?
Answer by: Customer Support on Aug 20, 2025, 4:54 PM
Reduced bore means the internal flow path is narrower than a full-bore -16 fitting. The hose end is still sized for a -16 hose, so it connects correctly, but the bore through the fitting body itself is stepped down. That tradeoff lets the fitting work in tighter envelope spaces without changing your hose size. If flow restriction is a concern for your application, that's worth factoring in before you commit to it.
Question by: Floyd A on Jan 11, 2026, 6:24 PM
got a -16 hose on the machine, will this elbow fitting actually match up without any funny business?
Answer by: Customer Support on Jan 12, 2026, 7:11 PM
It’s built for a -16 hose and uses a 1-5/16-12 Female JIC 37 degree flare swivel end. It’s also a 45 degree elbow, so it’s meant to turn the line while keeping that JIC 37 flare connection style.
Question by: Patty S on Mar 30, 2025, 6:35 AM
What size is the hex on this fitting?
Answer by: Customer Support on Mar 31, 2025, 1:22 PM
The hex size is 1.44.
