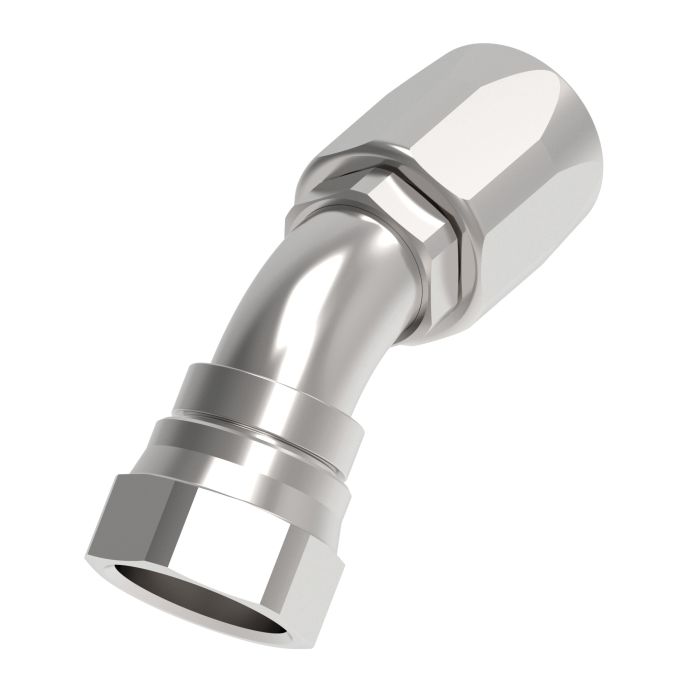

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-5/8-12 Female JIC 37 deg Flare Swivel, -20 Hose, 45 deg Elbow

Ask A Question

Description & Features

Constructed from steel, this reduced bore reusable fitting is designed for use with -20 hose and features a 1-5/8-12 Female JIC 37-degree flare swivel connection at one end, paired with a 45-degree elbow configuration. The reusable design is compatible with 1-wire braid hose assemblies, making it a practical choice for hydraulic lines where field serviceability is a priority.

The Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-5/8-12 Female JIC 37 deg Flare Swivel, -20 Hose, 45 deg Elbow carries catalog number C1AL99 and is manufactured under the Danfoss Power Solutions (Aeroquip) brand. It has a drop dimension (H) of 1.22 inches and a hex size of 1.75 at the hose end. No thread sealant is applied. The ECCN classification is EAR99.

SKU: 190265-20S

Supplier Part Number (MPN): 190265-20S

Alternate Part Numbers: C1AL99

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
4.21 in
Compatible Hose ID
1.12 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
2.85 in
d Dimensions
2.85 in
Dimensions
5.85 in L x 2 in W x 2.73 in H
Drop Dimensions
1.22 in
End Connection Torque
127 to 133 lb-ft
End Gender 1
Female
End Size 1
20
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355 and FC802 Series A/C and Refrigeration Hoses
h Dimensions
1.22 in
Hex Size
35 mm
Hose Dash Size
20
Inside Diameter
1.05 in
Material
Steel
Material Construction
Carbon Steel
Reusable Socket Hex Size
50 mm
Series
190265 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/8-12
Thread Type
UN

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Steel Reusable 1 Wire Braid Reduced Bore Fitting, 7/8-14 Female JIC 37 deg Flare Swivel, -10 Hose, 45 deg Elbow

190297-10S Steel Reusable JIC Fitting

7/8-14

10

1.95 in

0.64 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, 45 deg Elbow

190297-4S Steel Reusable JIC Fitting

7/16-20

04

1.1 in

0.33 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -08 Hose, 45 deg Elbow

190297-8S Steel Reusable JIC Fitting

3/4-16

08

1.84 in

0.55 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-1/16-12 Female JIC 37 deg Flare Swivel, -12 Hose, 45 deg Elbow

190265-12S Steel Reusable JIC Fitting

1-1/16-12

12

2.21 in

0.78 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-5/16-12 Female JIC 37 deg Flare Swivel, -16 Hose, 45 deg Elbow

190265-16S Steel Reusable JIC Fitting

1-5/16-12

16

2.47 in

1.07 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -06 Hose, 45 deg Elbow

190265-6S Steel Reusable JIC Fitting

9/16-18

06

1.33 in

0.39 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-1/16-14 Female JIC 37 deg Flare Swivel, -12 Hose, 45 deg Elbow

190299-12S Steel Reusable JIC Fitting

1-1/16-14

12

2.21 in

0.78 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 5/8-18 Female JIC 37 deg Flare Swivel, -06 Hose, 45 deg Elbow

190299-6S Steel Reusable JIC Fitting

5/8-18

06

1.22 in

0.39 in

Product Questions & Answers (3)

Question by: Chad R on Feb 20, 2026, 3:07 PM
replacing an old aeroquip on a -20 hose. what thread size is the female end on this one
Answer by: Customer Support on Feb 22, 2026, 7:48 AM
Connecting to that size line uses a 1-5/8-12 thread. The female end is a SAE 37 degree flare swivel and takes a 1.75 hex wrench.
Question by: Lee H on Jul 27, 2025, 8:28 PM
trying to swap out an old hose end, is this the one with the 1-5/8-12 female JIC swivel and a 45 elbow for -20 hose?
Answer by: Customer Support on Jul 29, 2025, 6:19 AM
Match up three things: it’s a steel reusable fitting for -20 hose, it has a 1-5/8-12 female JIC 37 degree flare swivel on the end, and the body is a 45 degree elbow in a reduced bore style.
Question by: Tommy M on Sep 18, 2025, 11:22 AM
What kind of hose do I need to use with this fitting?
Answer by: Customer Support on Sep 20, 2025, 8:52 AM
This fitting is made for -20 hose.
