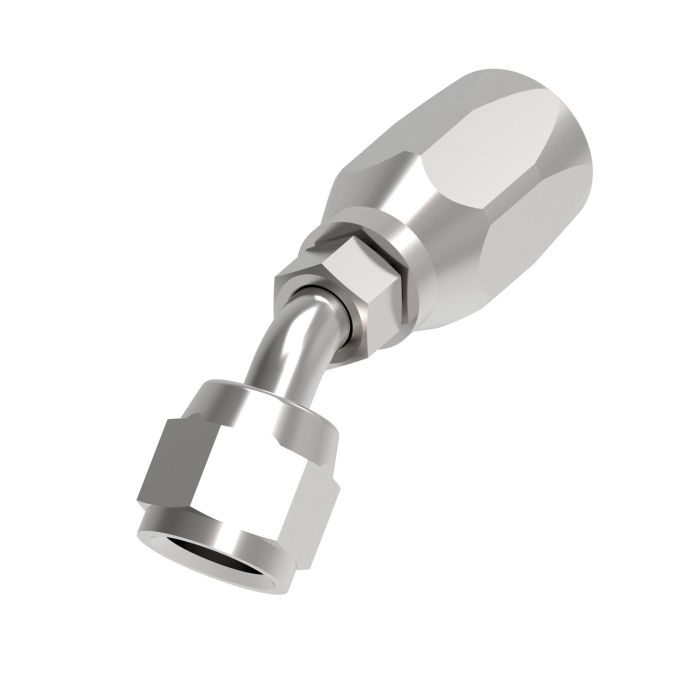

main product photo

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, 45 deg Elbow

Ask A Question

Description & Features

The Steel Reusable 1 Wire Braid Reduced Bore Fitting is designed for 7/16-20 Female JIC 37-degree flare swivel connections and -04 hose applications. Engineered by Danfoss Power Solutions (II LLC Aeroquip), it is known for its robust construction and reliable performance in industrial contexts.

This fitting features a 45-degree elbow, ensuring efficient hose routing and connection in complex configurations. It is fabricated from high-quality materials to withstand demanding environments, providing durability and longevity.

With a universal swivel capability, this Aeroquip reusable fitting simplifies installation and maintenance, offering a versatile solution for various industrial scenarios. The 0.33-inch height and 0.625-inch hex size enhance its compatibility and ease of use.

The Steel Reusable 1 Wire Braid Reduced Bore Fitting is compliant with SAE 37 standards, ensuring a secure and leak-proof connection. Suitable for applications requiring a -04 hose size, it eliminates the need for a mandrel during installation.

MPN: EAR99

Supplier Part Number: 190297-4S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.85 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
1.1 in
d Dimensions
1.1 in
Dimensions
2.53 in L x 0.625 in W x 1.32 in H
Drop Dimensions
0.33 in
End Connection Torque
11 to 12 lb-ft
End Gender 1
Female
End Gender 2
Female
End Size 1
7/16 in
End Size 2
1/4 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses
h Dimensions
0.33 in
Hex Size
0.563 x 0.354 in
Hose Dash Size
04
Inside Diameter
0.13 in
Material
Steel
Material Construction
Carbon Steel
Reusable Socket Hex Size
5/8 in
Series
190297 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/16-20
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-5/8-12 Female JIC 37 deg Flare Swivel, -20 Hose, 45 deg Elbow

190265-20S Steel Reusable JIC Fitting

1-5/8-12

20

2.85 in

1.22 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 7/8-14 Female JIC 37 deg Flare Swivel, -10 Hose, 45 deg Elbow

190297-10S Steel Reusable JIC Fitting

7/8-14

10

1.95 in

0.64 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -08 Hose, 45 deg Elbow

190297-8S Steel Reusable JIC Fitting

3/4-16

08

1.84 in

0.55 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-1/16-12 Female JIC 37 deg Flare Swivel, -12 Hose, 45 deg Elbow

190265-12S Steel Reusable JIC Fitting

1-1/16-12

12

2.21 in

0.78 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-5/16-12 Female JIC 37 deg Flare Swivel, -16 Hose, 45 deg Elbow

190265-16S Steel Reusable JIC Fitting

1-5/16-12

16

2.47 in

1.07 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -06 Hose, 45 deg Elbow

190265-6S Steel Reusable JIC Fitting

9/16-18

06

1.33 in

0.39 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-1/16-14 Female JIC 37 deg Flare Swivel, -12 Hose, 45 deg Elbow

190299-12S Steel Reusable JIC Fitting

1-1/16-14

12

2.21 in

0.78 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 5/8-18 Female JIC 37 deg Flare Swivel, -06 Hose, 45 deg Elbow

190299-6S Steel Reusable JIC Fitting

5/8-18

06

1.22 in

0.39 in

Product Questions & Answers (3)

Question by: Warren C on Jan 18, 2026, 5:36 PM
trying to replace a 45 degree elbow on a -04 hose, is this the one with the 7/16-20 JIC swivel?
Answer by: Customer Support on Jan 20, 2026, 8:06 AM
For a -04 hose setup, this fitting matches a 7/16-20 female JIC 37 degree flare swivel on the threaded end, and it’s built as a 45 degree elbow. It’s a steel, reusable style for 1 wire braid with a reduced bore.
Question by: Bonnie S on Mar 26, 2025, 9:32 AM
Does this fitting work without a mandrel, or do I need to track down special tooling to put it on?
Answer by: Customer Support on Mar 28, 2025, 6:39 AM
No mandrel needed for installation. The reusable design lets you attach it directly to the hose without any special pressing equipment, which makes field assembly and on-the-spot repairs a whole lot more manageable.
Question by: Scott O on Jul 17, 2025, 7:34 PM
Will this fitting hold up okay in an oily environment, or do I need to look for something more heavy-duty?
Answer by: Customer Support on Jul 19, 2025, 8:26 AM
This fitting is made from steel, so it should hold up just fine in oily conditions, providing good durability and longevity.
