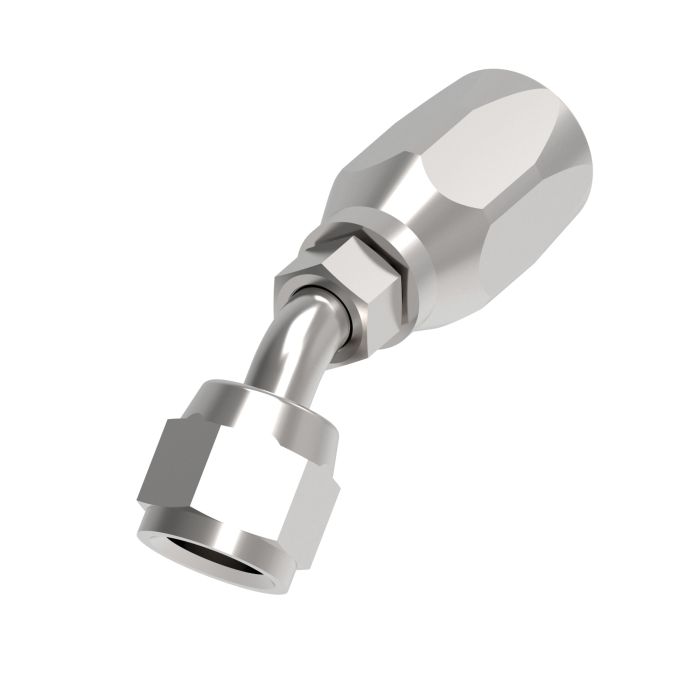

main product photo

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -08 Hose, 45 deg Elbow

Ask A Question

Description & Features

Designed for industry-specific applications, this fitting offers a high-quality solution for reusable connections. Featuring a reduced bore and one wire braid, it provides reliable performance and durability. The fitting includes a 3/4-16 female JIC 37-degree flare swivel, which ensures secure and efficient connectivity.

This steel fitting is designed with a 45-degree elbow for flexible installation options and tight spaces. The end sizes are 0.75 inches and 0.5 inches respectively, catering to different configurations in industrial setups. Not requiring a mandrel, it simplifies the installation process, saving time and reducing effort.

Threaded with 3/4-16 dimensions, it ensures a snug fit and prevents leaks. The connection type is SAE 37, which is widely used in various industrial applications for its reliability and standardization. Hex size of 0.9375 inches and hose cutoff of 1.84 inches further add to its adaptability.

Manufactured by Danfoss Power Solutions (II LLC Aeroquip), it meets the highest standards of quality and performance. Suitable for -08 hose size, this fitting is ideal for industrial applications where efficiency and reliability are paramount.

ECCN: EAR99

Supplier Part Number: 190297-8S

Specifications

D
1.84
Drop Dimension
0.55
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.75
End Size 2
0.50
End Type 1
SAE 37
End Type 2
Line/Hose/Tube
H
0.55 in
Hex Size 2
0.94
Hose Cutoff
1.84
Hose Size
-08
Mandrel Required
No
Supplier Part Number
190297-8S
Thread 1
3/4-16
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1AM24, Alternate Part Number MI-00330003, Alternate Part Number MINO-00015F70118
Product Weight
0.29 lbs

Related Documents

Similar Products

Model Number Thread 1 Hose Size D H Price Action
Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-5/8-12 Female JIC 37 deg Flare Swivel, -20 Hose, 45 deg Elbow

190265-20S Steel Reusable JIC Fitting

1-5/8-12

-20

2.85

1.22 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 7/8-14 Female JIC 37 deg Flare Swivel, -10 Hose, 45 deg Elbow

190297-10S Steel Reusable JIC Fitting

7/8-14

-10

1.95

0.64 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, 45 deg Elbow

190297-4S Steel Reusable JIC Fitting

7/16-20

-04

1.1

0.33 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -08 Hose, 45 deg Elbow

190297-8S Steel Reusable JIC Fitting

3/4-16

-08

1.84

0.55 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-1/16-12 Female JIC 37 deg Flare Swivel, -12 Hose, 45 deg Elbow

190265-12S Steel Reusable JIC Fitting

1-1/16-12

-12

2.21

0.78 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-5/16-12 Female JIC 37 deg Flare Swivel, -16 Hose, 45 deg Elbow

190265-16S Steel Reusable JIC Fitting

1-5/16-12

-16

2.47

1.07 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -06 Hose, 45 deg Elbow

190265-6S Steel Reusable JIC Fitting

9/16-18

-06

1.33

0.39 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-1/16-14 Female JIC 37 deg Flare Swivel, -12 Hose, 45 deg Elbow

190299-12S Steel Reusable JIC Fitting

1-1/16-14

-12

2.21

0.78 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 5/8-18 Female JIC 37 deg Flare Swivel, -06 Hose, 45 deg Elbow

190299-6S Steel Reusable JIC Fitting

5/8-18

-06

1.22

0.39 in

Product Questions & Answers (3)

Question by: Roger W on Nov 15, 2025, 10:51 AM
got a single wire hose i need to put a new end on. what size are the threads for this fitting
Answer by: Customer Support on Nov 16, 2025, 6:29 PM
Expect a 3/4-16 Female JIC 37-degree flare swivel on the threaded side. Connecting the opposite end is made for a standard -08 line using the reduced bore reusable steel design.
Question by: Darryl F on May 16, 2025, 6:46 PM
trying to swap out a hose end, is this one for -08 hose and a 3/4-16 female JIC swivel?
Answer by: Customer Support on May 18, 2025, 8:28 AM
Built for reusable hose assemblies, this fitting matches a -08 hose size and has a 3/4-16 female JIC 37 degree flare swivel on the connection end.
Question by: Stan S on Mar 3, 2026, 6:56 AM
got a tight spot on a loader where the hose needs to angle off at 45 degrees before it hits the bulkhead, will this fitting work for that kind of setup without needing any special tools to put it on?
Answer by: Customer Support on Mar 5, 2026, 8:49 AM
For confined routing situations like that, the 45-degree elbow geometry on this fitting is built for exactly that kind of clearance problem. It lets the hose exit at an angle rather than running straight out, which helps a lot when you're working around frame members or bulkheads. No mandrel is required for installation either, so you're not hunting down extra tooling to get it seated. The thread end is 3/4-16, the hose side takes a -08 hose, and the hex comes in at just under an inch, so make sure your wrench clearance matches before you commit to the location.
