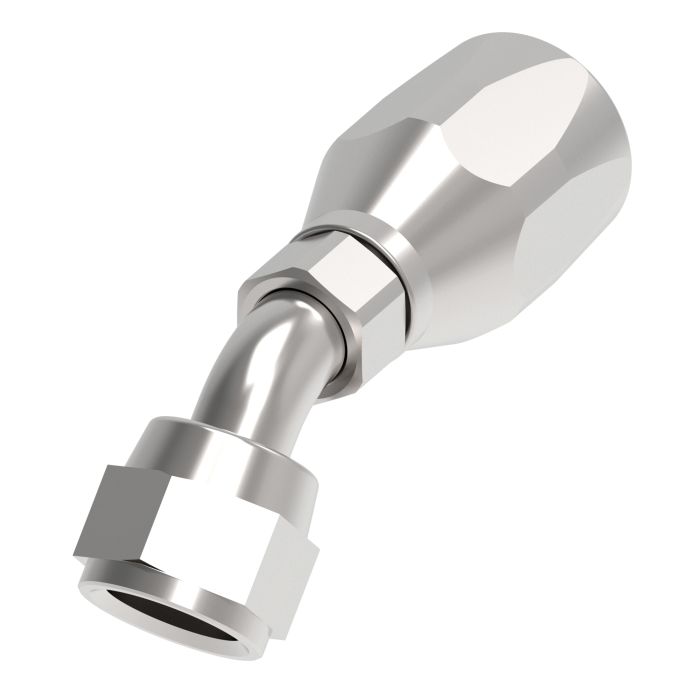

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-1/16-14 Female JIC 37 deg Flare Swivel, -12 Hose, 45 deg Elbow

Ask A Question

Description & Features

Optimize your hydraulic systems with the Steel Reusable 1 Wire Braid Reduced Bore Fitting, designed for reliability and efficiency. This fitting features a 1-1/16-14 Female JIC 37-degree flare swivel, ensuring a secure connection for -12 hoses. The 45-degree elbow design facilitates easy integration into challenging layouts, making it ideal for various industrial applications.

Manufactured by Eaton Aeroquip, this fitting exemplifies precision engineering and durable construction. It is compatible with a range of fluids, backed by detailed documentation for fluid compatibility. The robust steel construction ensures long-term performance, even in demanding conditions, while the reusable design allows for cost-effective maintenance and replacements.

SKU: 190299-12S

Supplier Part Number (MPN): 190299-12S

Alternate Part Numbers: C1AM25, MI-00330085, MINO-00015F70146

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.78 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female SAE Flared Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 45 deg Swivel
Construction Style
Reusable
Cut-Off Factor
2.21 in
d Dimensions
2.21 in
Dimensions
5.2 in L x 1.25 in W x 2.83 in H
Drop Dimensions
0.78 in
End Gender 1
Female
End Size 1
12
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
FC300, FC321, FC350, FC355 and FC802 Series Hoses
h Dimensions
0.78 in
Hex Size
22 mm
Hose Dash Size
12
Inside Diameter
0.55 in
Material
Steel
Material Construction
Carbon Steel
Reusable Socket Hex Size
1-1/4 in
Series
190299 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-14
Tube Outside Diameter 1
3/4 in

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-5/8-12 Female JIC 37 deg Flare Swivel, -20 Hose, 45 deg Elbow

190265-20S Steel Reusable JIC Fitting

1-5/8-12

20

2.85 in

1.22 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 7/8-14 Female JIC 37 deg Flare Swivel, -10 Hose, 45 deg Elbow

190297-10S Steel Reusable JIC Fitting

7/8-14

10

1.95 in

0.64 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, 45 deg Elbow

190297-4S Steel Reusable JIC Fitting

7/16-20

04

1.1 in

0.33 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -08 Hose, 45 deg Elbow

190297-8S Steel Reusable JIC Fitting

3/4-16

08

1.84 in

0.55 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-1/16-12 Female JIC 37 deg Flare Swivel, -12 Hose, 45 deg Elbow

190265-12S Steel Reusable JIC Fitting

1-1/16-12

12

2.21 in

0.78 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1-5/16-12 Female JIC 37 deg Flare Swivel, -16 Hose, 45 deg Elbow

190265-16S Steel Reusable JIC Fitting

1-5/16-12

16

2.47 in

1.07 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -06 Hose, 45 deg Elbow

190265-6S Steel Reusable JIC Fitting

9/16-18

06

1.33 in

0.39 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 5/8-18 Female JIC 37 deg Flare Swivel, -06 Hose, 45 deg Elbow

190299-6S Steel Reusable JIC Fitting

5/8-18

06

1.22 in

0.39 in

Product Questions & Answers (1)

Question by: Gene S on Apr 2, 2025, 9:14 PM
trying to replace an old aeroquip elbow, is this one the 45 degree swivel with a -12 hose end and a 1-1/16-14 female JIC?
Answer by: Customer Support on Apr 4, 2025, 10:14 AM
It matches that setup: a 45 degree elbow in the Aeroquip 190299 reusable series with a 1-1/16-14 female JIC 37 degree flare swivel on one end and a -12 hose size on the other, for 1 wire braid reduced bore hose.
