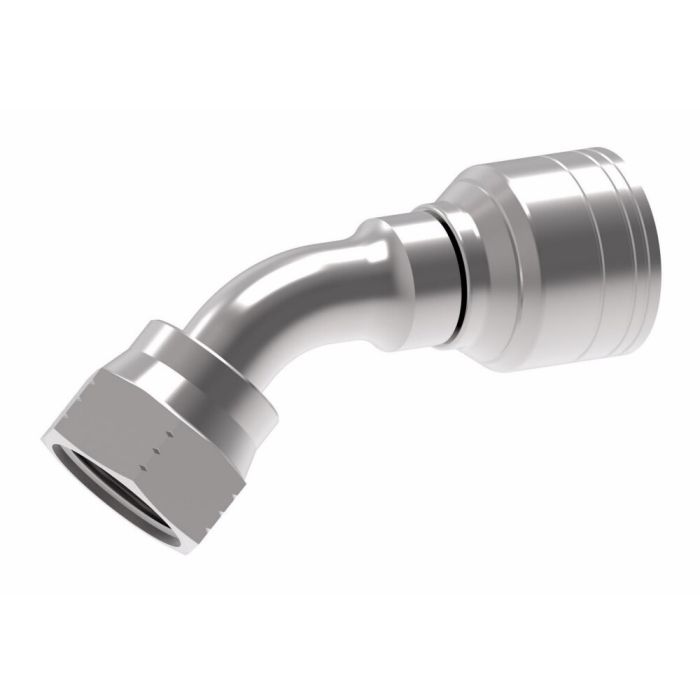

Steel Reusable 1 Wire Braid Teflon Fitting, 5/8-18 Female JIC 37 deg Flare Swivel, -06 Hose, 45 deg Elbow

Ask A Question

Description & Features

This Eaton Aeroquip steel reusable fitting is designed for 1 wire braid Teflon hose. It features a 5/8-18 female JIC 37-degree flare swivel connection and a -06 hose size.

The fitting has a 45-degree elbow configuration. Dimensions include a D measurement of 1.2 inches and an H measurement of 0.39 inches. The hex size is 0.69 inches, and the hose cutoff is 1.2 inches. This Steel Reusable 1 Wire Braid Teflon Fitting is part of the Teflon Hose Reusable Steel Fittings product model line.

SKU: FC9341-0606S

Supplier Part Number (MPN): FC9341-0606S

Alternate Part Numbers: C1EQ29, MI-08748855, MINO-00015X96023

Specifications

D
1.20
Drop Dimension
0.39
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.63
End Size 2
0.38
End Type 1
SAE 45
End Type 2
Line/Hose/Tube
H
0.39 in
Hex Size 2
0.69
Hose Cutoff
1.20
Hose Size
-06
Mandrel Required
No
Supplier Part Number
FC9341-0606S
Thread 1
5/8-18
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1EQ29, Alternate Part Number MI-08748855, Alternate Part Number MINO-00015X96023, Alternate Part Number MINO-00925X05407
Product Weight
0.13 lbs

Related Documents

Similar Products

Model Number Thread 1 Hose Size D H Price Action
Steel Reusable 1 Wire Braid Teflon Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, 45 deg Elbow

190773-4S Steel Reusable JIC Teflon Fitting

7/16-20

-04

1.05

0.33 in

Steel Reusable 1 Wire Braid Teflon Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -06 Hose, 45 deg Elbow

190773-6S Steel Reusable JIC Teflon Fitting

9/16-18

-06

1.2

0.39 in

Steel Reusable 1 Wire Braid Teflon Fitting, 5/8-18 Female JIC 37 deg Flare Swivel, -06 Hose, 45 deg Elbow

FC9341-0606S Steel Reusable JIC Teflon Fitting

5/8-18

-06

1.2

0.39 in

Product Questions & Answers (3)

Question by: Stan T on Jul 31, 2025, 6:41 PM
trying to replace a bent elbow on my teflon line. is this the reusable steel 45 degree fitting for -06 hose with a 5/8-18 female JIC swivel?
Answer by: Customer Support on Aug 2, 2025, 6:13 PM
For a -06 1 wire braid Teflon hose, this reusable steel fitting matches that setup and it uses a 5/8-18 female JIC 37 degree flare swivel connection on the end. The body is a 45 degree elbow.
Question by: Ralph W on Feb 8, 2026, 5:59 PM
Got a -06 Teflon hose I need to terminate with a 45-degree elbow on one end. This fitting work for that, or do I need something different?
Answer by: Customer Support on Feb 10, 2026, 7:25 AM
For a -06 single wire braid Teflon hose, this is the right fitting. It's a reusable steel elbow sized exactly for that hose, with a 5/8-18 female JIC 37-degree flare swivel on the connection end. The 45-degree angle helps where a straight fitting won't route cleanly. Hose cutoff is 1.2 inches, so account for that when you're measuring your finished assembly length.
Question by: Clint H on Feb 23, 2026, 10:56 AM
So, this fitting's got that 45-degree elbow, right? Just wanna make sure it'll clear some stuff under the hood.
Answer by: Customer Support on Feb 25, 2026, 7:46 AM
Correct, this fitting features a 45-degree elbow configuration, which helps with tight spaces and routing hoses around obstructions.
