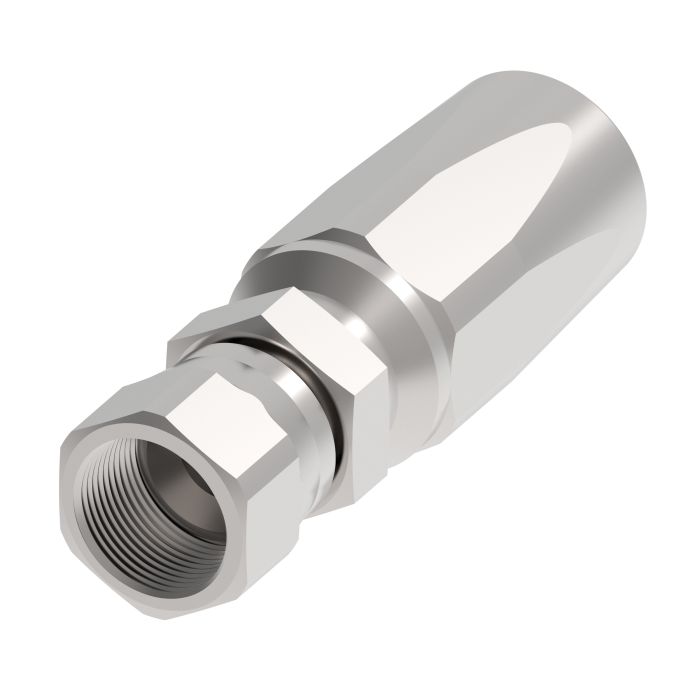

Steel Reusable 1 Wire Braid TTC Fitting, 1-1/16-12 Female JIC 37 deg Flare Swivel, -12 Hose, Straight

Ask A Question

Description & Features

The Steel Reusable 1 Wire Braid TTC Fitting 1-1/16-12 Female JIC 37 deg Flare Swivel -12 Hose Straight by Danfoss Power Solutions is designed to meet high standards in industrial applications. This fitting features a reliable SAE 37-degree JIC swivel end and a 1-1/16-12 thread making it a robust choice for diverse requirements without the need for a mandrel.

The reusable nature of the fitting enhances sustainability and cost-efficiency for long-term use while its straight design simplifies hose routing.

The hex size of 1.25 and end size of 0.75 further ensure a secure and tight connection critical for maintaining system integrity. With no requirement for a thread sealant the fitting facilitates easier installation and maintenance.

Catalog Number: C1CT30

End Type 1: SAE 37

End Gender 1: Female

End Type 2: Line/Hose/Tube

Supplier Part Number: FC7988-1212S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.8 in
Compatible Hose ID
3/4 in
Compatible Tube OD
3/4 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
2.2 in
d Dimensions
2.2 in
Dimension Standards
SAE J514
Dimensions
3.8 in L
End Connection Torque
78 to 89 lb-ft
End Gender 1
Female
End Size 1
12
End Size 2
3/4 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
GH663 Series Hoses
Hex Size
1-1/4
Hose Dash Size
12
Inside Diameter
0.61 in
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
3000 psi
Series
FC7988 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-12
Thread Type
UN
Tube Outside Diameter 1
3/4 in

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
Steel Reusable 1 Wire Braid TTC Fitting, 7/16-20 Female JIC 37 deg Flare Swivel, -04 Hose, Straight

FC7988-0404S Steel Reusable JIC TTC Fitting

7/16-20

04

1.46 in

Steel Reusable 1 Wire Braid TTC Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -06 Hose, Straight

FC7988-0606S Steel Reusable JIC TTC Fitting

9/16-18

06

1.78 in

Steel Reusable 1 Wire Braid TTC Fitting, 3/4-16 Female JIC 37 deg Flare Swivel, -08 Hose, Straight

FC7988-0808S Steel Reusable JIC TTC Fitting

3/4-16

08

1.7 in

Steel Reusable 1 Wire Braid TTC Fitting, 1-5/16-12 Female JIC 37 deg Flare Swivel, -16 Hose, Straight

FC7988-1616S Steel Reusable JIC TTC Fitting

1-5/16-12

16

2.21 in

Product Questions & Answers (2)

Question by: Floyd B on Dec 15, 2025, 7:03 PM
got a -12 hose and need a straight female JIC swivel. is this the one with the 37 degree flare and 1-1/16-12 threads?
Answer by: Customer Support on Dec 17, 2025, 11:00 AM
For a -12 hose setup, this is a straight, reusable 1 wire braid TTC fitting with a female SAE 37 degree JIC flare swivel end, and it uses 1-1/16-12 threads on that JIC end.
Question by: Phil M on Nov 1, 2025, 3:23 PM
What kind of hose is this fitting meant for? I'm using a one-wire braid hose.
Answer by: Customer Support on Nov 3, 2025, 6:37 AM
This fitting is designed for use with one-wire braid hoses, making it a good match for your application.
